Model
Kenmore 106.56726603
Side-By-Side Refrigerator (Kenmore 10656726603)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.56726603Side-By-Side Refrigerator (Kenmore 10656726603)
11 diagrams342 parts
Parts Sections (11)
Diagram

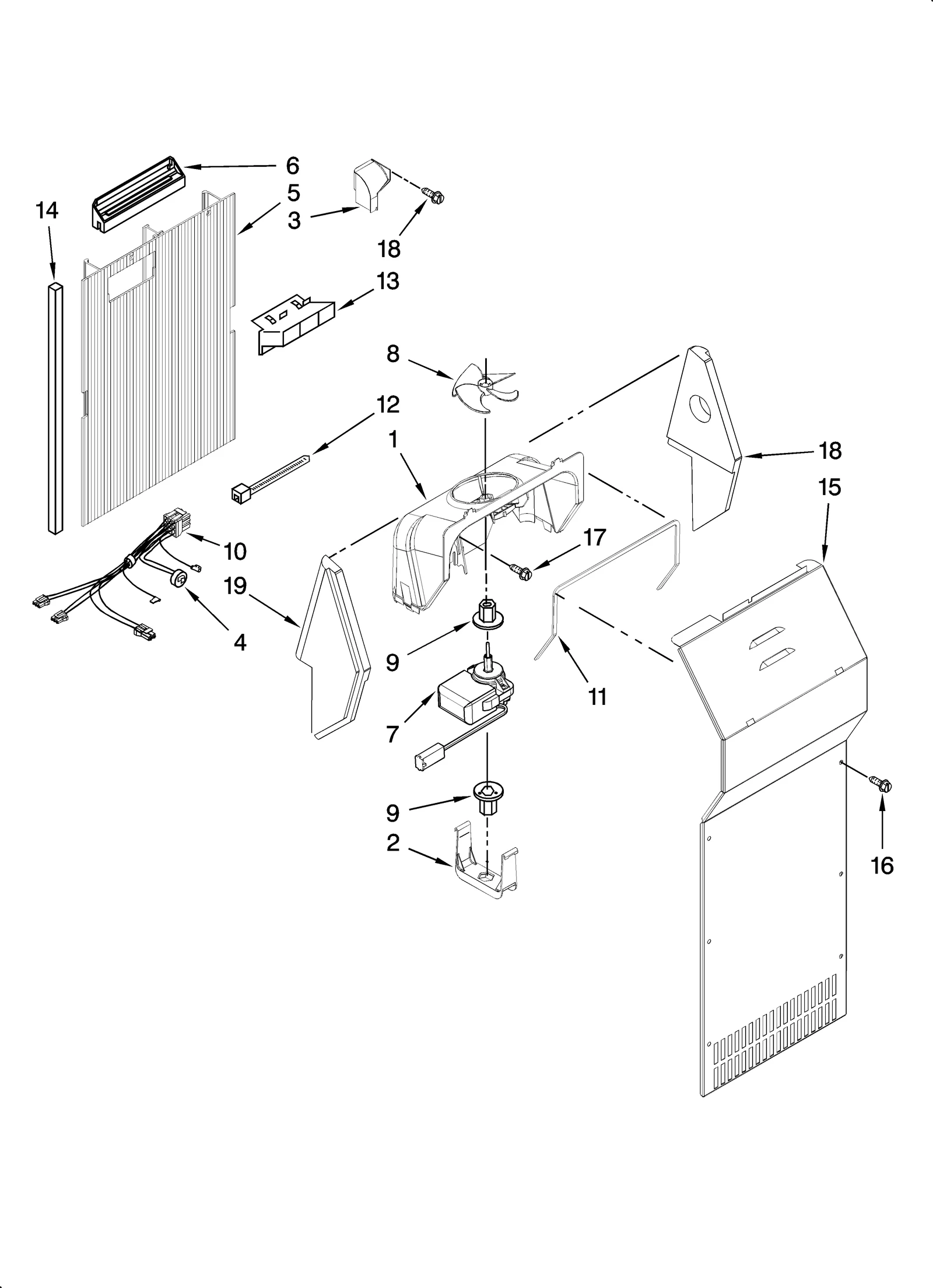

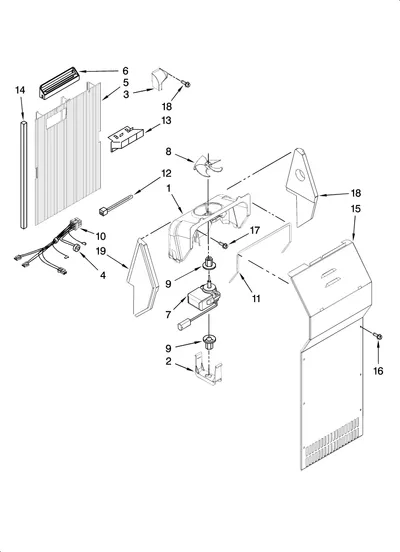

AIR FLOW PARTS
Parts in AIR FLOW PARTS
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W11254898replaces 2182119 Refrigerator Fan Scroll | $118.13 Parts Dr |
| 2 |  | WP2155590replaces 2155590 Refrigerator Evaporator Fan Motor Retainer | - |
| 3 |  | 2161231NLA Refrigerator Air Scoop | Discontinued |
| 4 |  | WPW10225581replaces 2319914 Refrigerator Defrost Bi-Metal Thermostat | $17.85 Part Advantage |
| 5 |  | 4388357replaces 2203591 Air Duct | - |
| 6 | | Refrigerator Air Duct Diffuser | - |
| 7 |  | 4389144replaces 2149299 Refrigerator Evaporator Motor | $35.06 Part Advantage |
| 8 |  | WP2169142replaces 2169142 Refrigerator Evaporator Fan Blade | $12.49 Part Advantage |
| 9 |  | WP2176759replaces 2176759 Refrigerator Grommet | $3.38 Part Advantage |
| 10 |  | W11234406replaces 2310240 Refrigerator Wire Harness | $58.64 Part Advantage |
| 11 |  | WP2304241replaces 2304241 Refrigerator Gasket | $30.25 Parts Dr |
| 12 |  | WPW10339879replaces 2172840 Refrigerator Wire Tie | $2.30 Part Advantage |
| 13 |  | Refrigerator Air Duct | - |
| 14 |  | 4388500replaces 2203875 Refrigerator Gasket | $47.40 PartSelect |
| 15 | | 4388357replaces 2203840 Refrigerator Evaporator Cover | - |
| 16 | | 4389654replaces 8281159 Screw | $9.95 ApplianceParts Pro |
| 17 |  | WP489478replaces 489478 Refrigerator Screw | $5.00 RepairClinic |
| 18 |  | 4388358replaces 2203595 Support Scroll | $12.33 Parts Dr |
| 19 | | 4388358replaces 2203596 Support Scroll | $12.33 Parts Dr |
