Model
Kenmore 106.56982600
Side-By-Side Refrigerator (Kenmore 10656982600)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.56982600Side-By-Side Refrigerator (Kenmore 10656982600)
11 diagrams345 parts

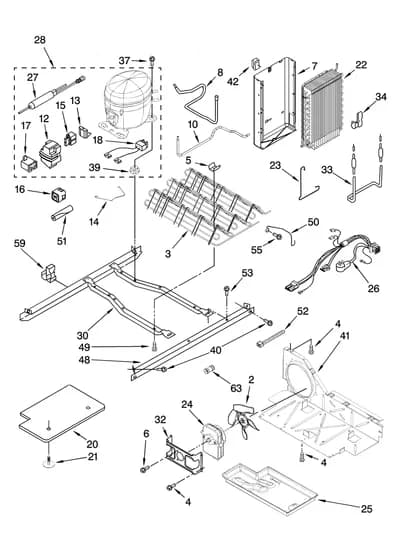

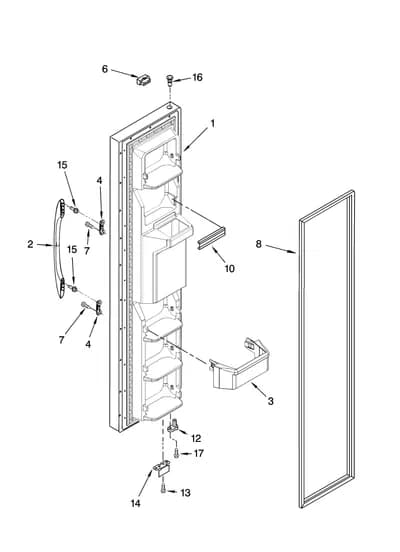

Parts Sections (11)
Diagram

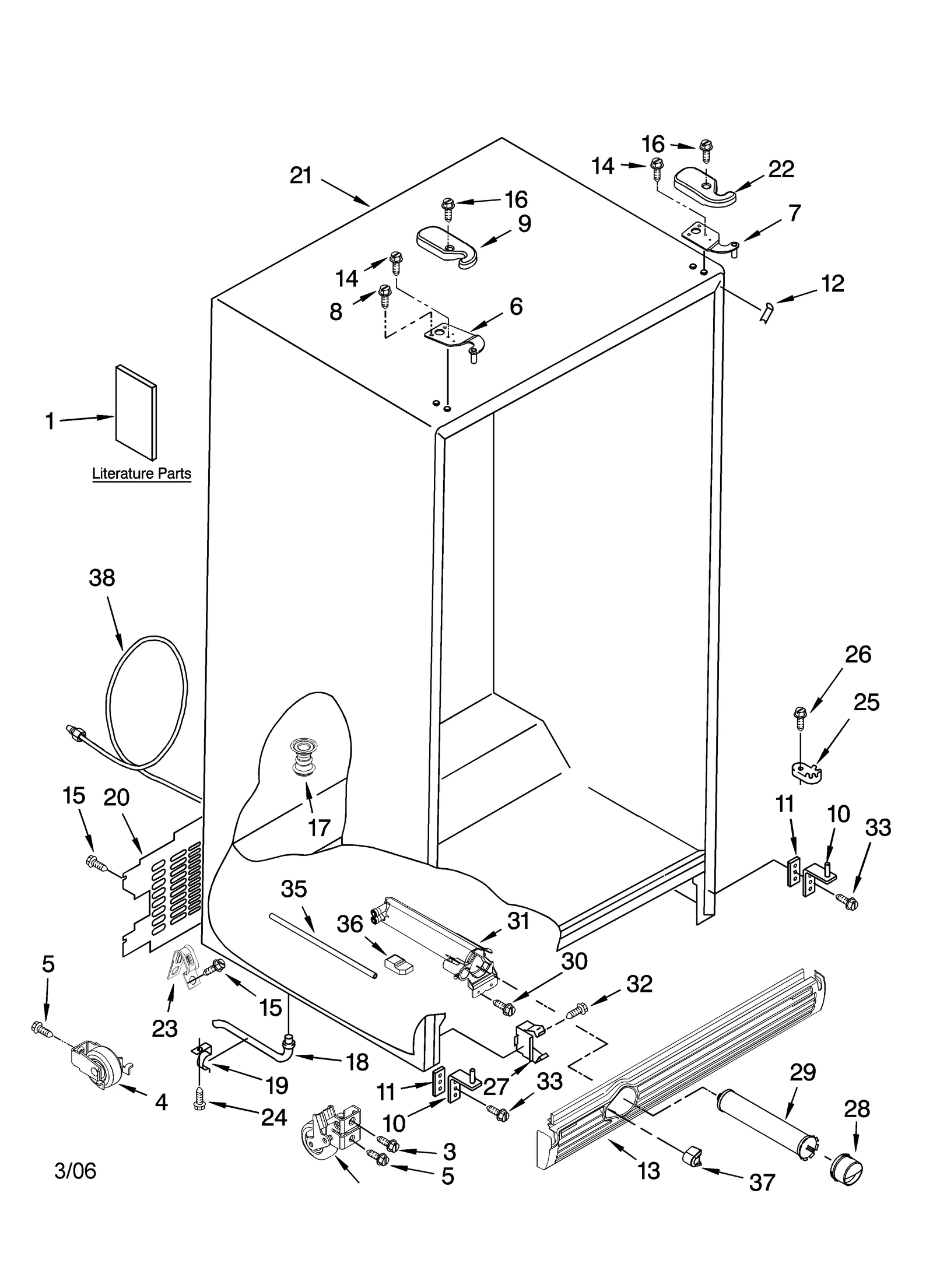

CABINET PARTS
Parts in CABINET PARTS
56 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 2318567 Refrigerator Energy Guide | - |
| 1A | – | 2318568 Refrigerator Energy Guide | - |
| 1B | – | 2318460 Refrigerator Owner's Manual | - |
| 1C | – | 2319706 Refrigerator Technical Sheet | - |
| 1D | – | 2261037 Refrigerator Installation Instructions | - |
| 1E |  | 628370NLA Refrigerator Service Manual | Discontinued |
| 1F | – | 2257028 Refrigerator Installation Instructions | - |
| 1G | – | N/P FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS LIST, REFER TO MODEL 106.8560 | - |
| 1H | – | 787316 Diy | - |
| 2 |  | Refrigerator Cabinet Roller | Discontinued |
| 3 |  | W10850698replaces 3400517 Refrigerator Screw | $11.71 ApplianceParts Pro |
| 4 |  | WPW10250570replaces 2196236 Refrigerator Roller Assembly, Rear | $29.47 PartSelect |
| 5 |  | WP489427replaces 489427 Refrigerator Screw | $5.00 RepairClinic |
| 6 |  | WP2203770replaces 2203770 Refrigerator Door Hinge | $52.41 ApplianceParts Pro |
| 7 |  | WP2203771replaces 2203771 Refrigerator Door Hinge | $32.72 Part Advantage |
| 8 |  | WP489128replaces 8281149 Refrigerator Screw | $5.96 Parts Dr |
| 9 |  | WP2203407Wreplaces 2203407W Refrigerator Cover | $14.93 RepairClinic |
| 9A |  | Ikea Refrigerator Door Hinge Cover (Bisque) | $9.23 RepairClinic |
| 9B |  | WP2203407Breplaces 2203407B Refrigerator Cover (Black) | $13.58 RepairClinic |
| 10 |  | 8201707replaces 2304322 Refrigerator Door Hinge | $28.76 Part Advantage |
| 11 |  | WP2181911replaces 2156056 Refrigerator Shim | $13.12 Parts Dr |
| 12 | | Refrigerator Trim Cap | - |
| 12A | | 2196150NLA Refrigerator Filler | Discontinued |
| 12B | | Refrigerator Filler | - |
| 13 |  | WPW10311032replaces 2260500W Refrigerator Grille | $76.54 PartSelect |
| 13A | | Refrigerator Grille | Discontinued |
| 13B |  | WPW10311033replaces 2260500B Refrigerator Grille | $81.34 Parts Dr |
| 14 |  | WP489497replaces 489497 Refrigerator Screw | $4.19 Part Advantage |
| 15 | | Screw | $9.62 PartSelect |
| 16 |  | WP8281227replaces 8281227 Refrigerator Screw | $4.19 Part Advantage |
| 17 |  | W11566763replaces 940139 Fitting | $19.22 Part Advantage |
| 18 |  | WP1108438replaces 1108438 Refrigerator Drain Tube | $11.17 Parts Dr |
| 19 |  | WP1108439replaces 1108439 Refrigerator Drain Clip | - |
| 20 |  | WP2188755replaces 2252036 Refrigerator Cover Unit | $69.02 Part Advantage |
| 22 |  | WP2203408Wreplaces 2203408W Refrigerator Hinge Cover | - |
| 22A | | Refrigerator Cover | - |
| 22B |  | WP2203408Breplaces 2203408B Refrigerator Cover | $13.41 RepairClinic |
| 23 |  | Clamp | - |
| 24 |  | WP489464replaces 489464 Refrigerator Screw | $9.62 PartSelect |
| 25 |  | WPW10329686replaces 2155311 Refrigerator Door Closer Cam | $3.29 Part Advantage |
| 26 |  | WP489483replaces 489483 Appliance Screw | $11.77 PartSelect |
| 27 |  | WP2155013replaces 2155013 Refrigerator Toe Grille Clip | $3.38 Part Advantage |
| 28 |  | WP2260518Wreplaces 2260502W Refrigerator Water Filter Cap (White) | $15.77 Part Advantage |
| 28A | | Refrigerator Water Filter Cap (Bisque) | - |
| 28B |  | WP2260518Breplaces 2260502B Refrigerator Water Filter Cap (Black) | $12.11 Part Advantage |
| 29 |  | EDR3RXD1replaces 9030 Genuine Kenmore Refrigerator Water Filter | $49.90 Part Advantage |
| 30 |  | WP489500replaces 489500 Refrigerator Door Trim Screw | $5.00 RepairClinic |
| 31 |  | WPW10121138replaces 2260507 Refrigerator Housing | $52.13 Part Advantage |
| 32 | | WP489128replaces 488500 Screw | $5.96 Parts Dr |
| 33 | | WP489497replaces 3400113 SCREW | $4.19 Part Advantage |
| 35 |  | WPW10350006replaces 2304708 Refrigerator Water Tube | $44.46 Parts Dr |
| 36 | – | 2260519 Refrigerator Insulation | - |
| 37 |  | Refrigerator Water Filter Release Button (White) | - |
| 37A |  | WP2260503Breplaces 2260503T Refrigerator Button (Off-White) | $31.16 Parts Dr |
| 37B | | WP2260503Breplaces 2260503B Refrigerator Water Filter Release Button (Black) | $31.16 Parts Dr |
| 38 |  | WP2304697replaces 2304697 Refrigerator Water Tubing | $68.86 PartSelect |
