Model
Kenmore 1068592511/SKR601W0
Refrigerator (Kenmore 1068592511/SKR601W0)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
1068592511/SKR601W0Refrigerator (Kenmore 1068592511/SKR601W0)
12 diagrams409 parts

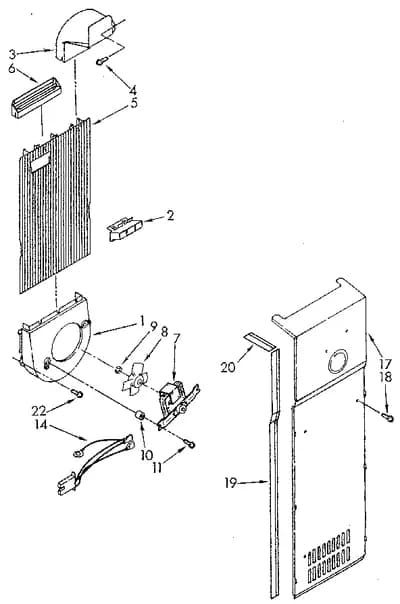

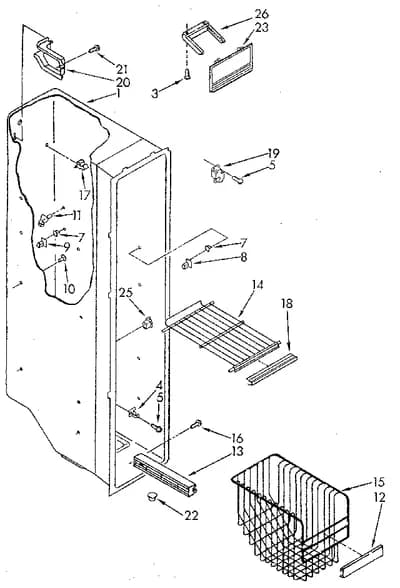

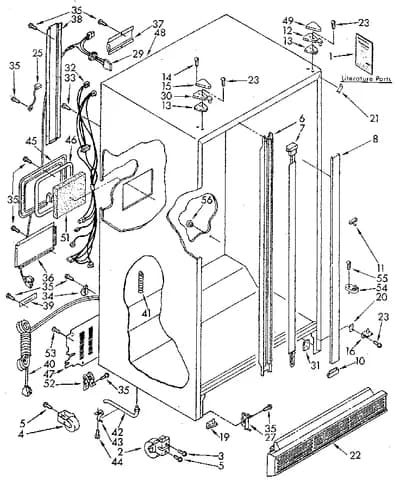

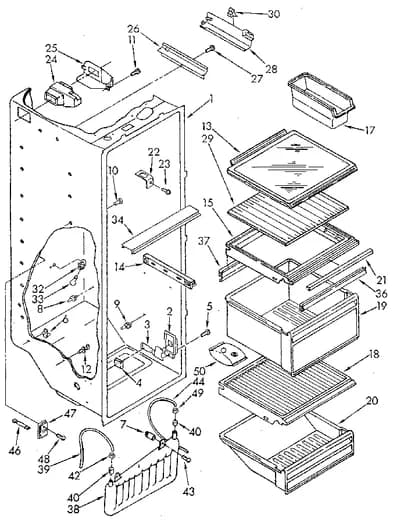

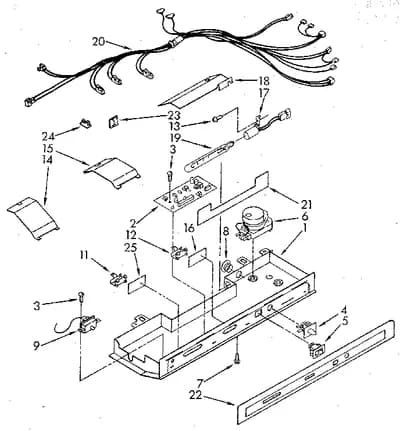

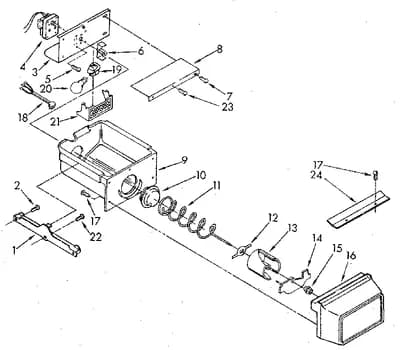

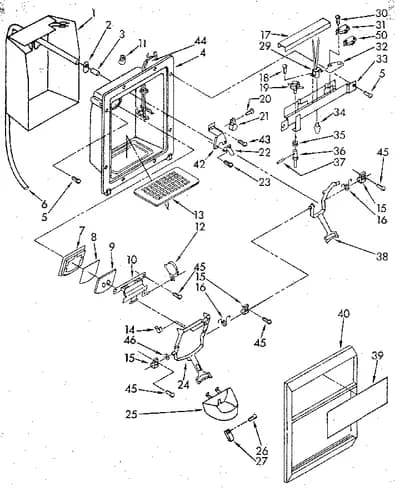

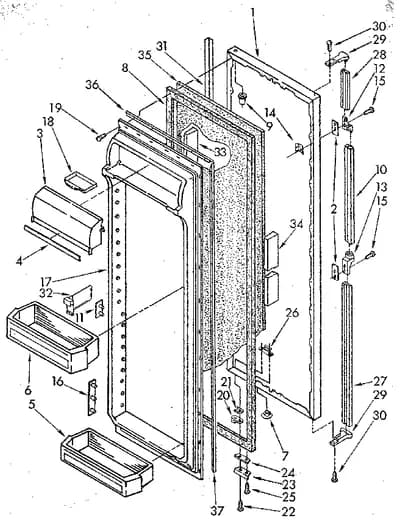

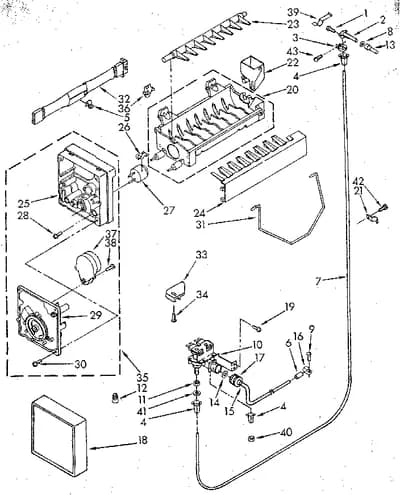

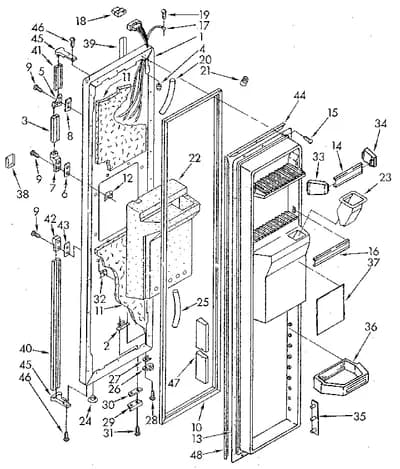

Parts Sections (12)

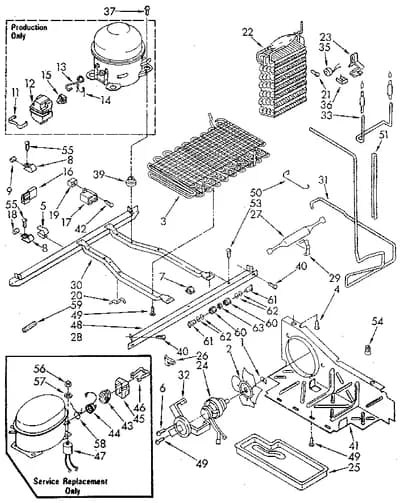

Diagram
UNIT
Parts in UNIT
59 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP486692replaces 486692 Speed Nut | $5.04 Parts Dr |
| 2 | – | 989524 Fan Blade | - |
| 3 |  | Refrigerator Condenser | - |
| 4 | – | 489050 Screw | - |
| 5 | – | 548745 Clip | - |
| 6 | | Screw | $21.45 PartSelect |
| 7 | – | 934011 Refrigerator Clip | - |
| 8 | | 510716NLA Clamp | Discontinued |
| 9 | – | 510769 Dampener | - |
| 11 | – | 943322 Strap | - |
| 12 | | Cover | - |

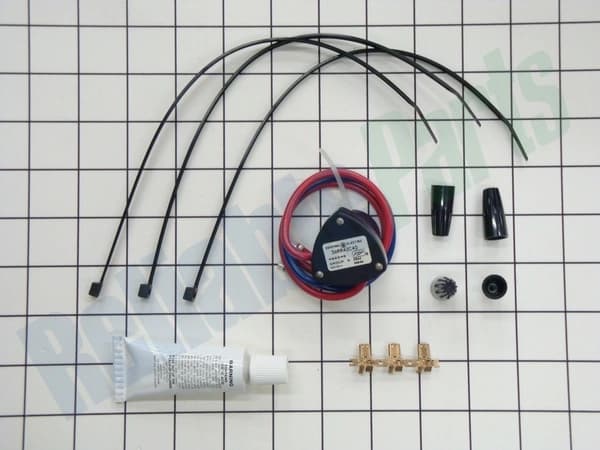

| 13 |  | 819100replaces 1118862 Refrigerator Overload | - |
| 14 | – | 943320 Spring | - |
| 15 | – | 1101014 Start Relay | - |
| 16 | – | 1118850 Refrigerator Connector | - |
| 17 |  | WPW10662129replaces 1114291 Run Capacitor | $24.86 Part Advantage |
| 18 |  | WP2158826replaces 836075 Dampener | $0.82 Part Advantage |
| 19 | – | 509812 Grommet | - |
| 20 | – | 548744 Clip | - |
| 21 |  | W11624204replaces 486194 Screw | $8.95 ApplianceParts Pro |
| 22 | | Refrigerator Evaporator | - |
| 23 | – | 1108431 Refrigerator Clamp | - |
| 24 |  | 833697replaces 1121292 Condenser Motor | $37.06 Part Advantage |
| 25 | – | 1105524 Refrigerator Evaporator Tray | - |
| 26 | – | 1103840 Refrigerator Terminal | - |
| 27 |  | W10843121replaces 1105550 Drier Tube | $22.78 Part Advantage |
| 28 |  | Compressor | Discontinued |
| 29 | – | 1127590 Clamp | - |
| 30 |  | 2304903replaces 1105535 Refrigerator Frame | - |
| 31 | – | 1106990 Refrigerator Exchanger | - |
| 32 | | Bracket | - |
| 33 | | Refrigerator Heater | - |

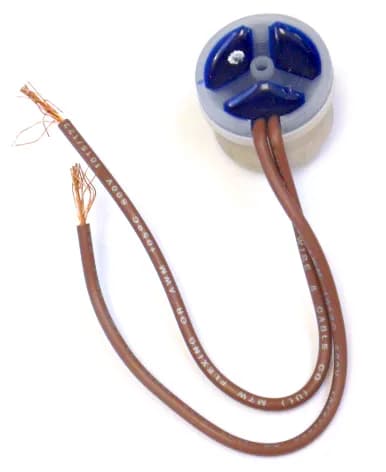

| 35 |  | WP4387499replaces 1127771 Refrigerator Defrost Bi-Metal | $42.53 Part Advantage |
| 36 | – | 513584 Clamp | - |
| 37 | | 489116NLA Screw | Discontinued |
| 39 |  | 876811replaces 1114359 Refrigerator Grommet | $9.63 ApplianceParts Pro |
| 40 |  | 489340replaces 488683 Screw | - |
| 41 | – | 1105530 Refrigerator Air Baffle | - |
| 42 |  | W11693756replaces 488687 Screw | $9.83 Parts Dr |
| 43 |  | WP2262181replaces 1108143 Start Relay | $72.95 ApplianceParts Pro |
| 44 | | 483054NLA Overload | Discontinued |
| 45 | – | 1105015 Cover | - |
| 46 | – | 938384 Clamp | - |
| 47 | – | 482996 Capacitor | - |
| 48 | – | 1105525 Rail Unit | - |
| 49 | – | 488624 Screw | - |
| 50 | – | 1105614 Fan Guard | - |

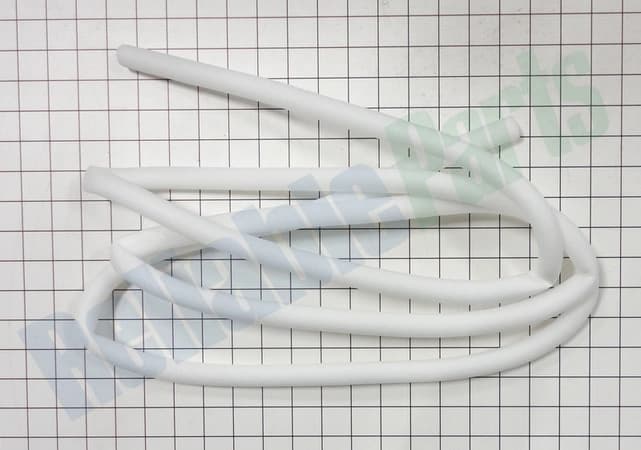

| 51 |  | WP2002171replaces 1114634 Refrigerator Sleeve | - |
| 53 | | Screw | - |
| 54 | | 227991NLA Connector | Discontinued |
| 55 |  | WPW10141625replaces 488197 Screw | $21.34 ApplianceParts Pro |
| 56 | – | 489142 Nut | - |
| 57 | – | 489143 Lock Washer | - |
| 58 | – | 1114190 Spring Overlay | - |
| 59 | – | 983659 Refrigerator Spring | - |
| 60 | | WP245183replaces 487857 Nut | - |
| 61 |  | 4387491replaces 841707 Insert | $5.00 RepairClinic |
| 62 | | 488794NLA Refrigerator O-Ring Seal | Discontinued |
| 63 |  | WP4211117replaces 489098 Refrigerator Union | $4.89 Part Advantage |
