Model
Kenmore 110.15862400
Washer (Kenmore 11015862400)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.15862400Washer (Kenmore 11015862400)
11 diagrams243 parts
Parts Sections (11)
Diagram

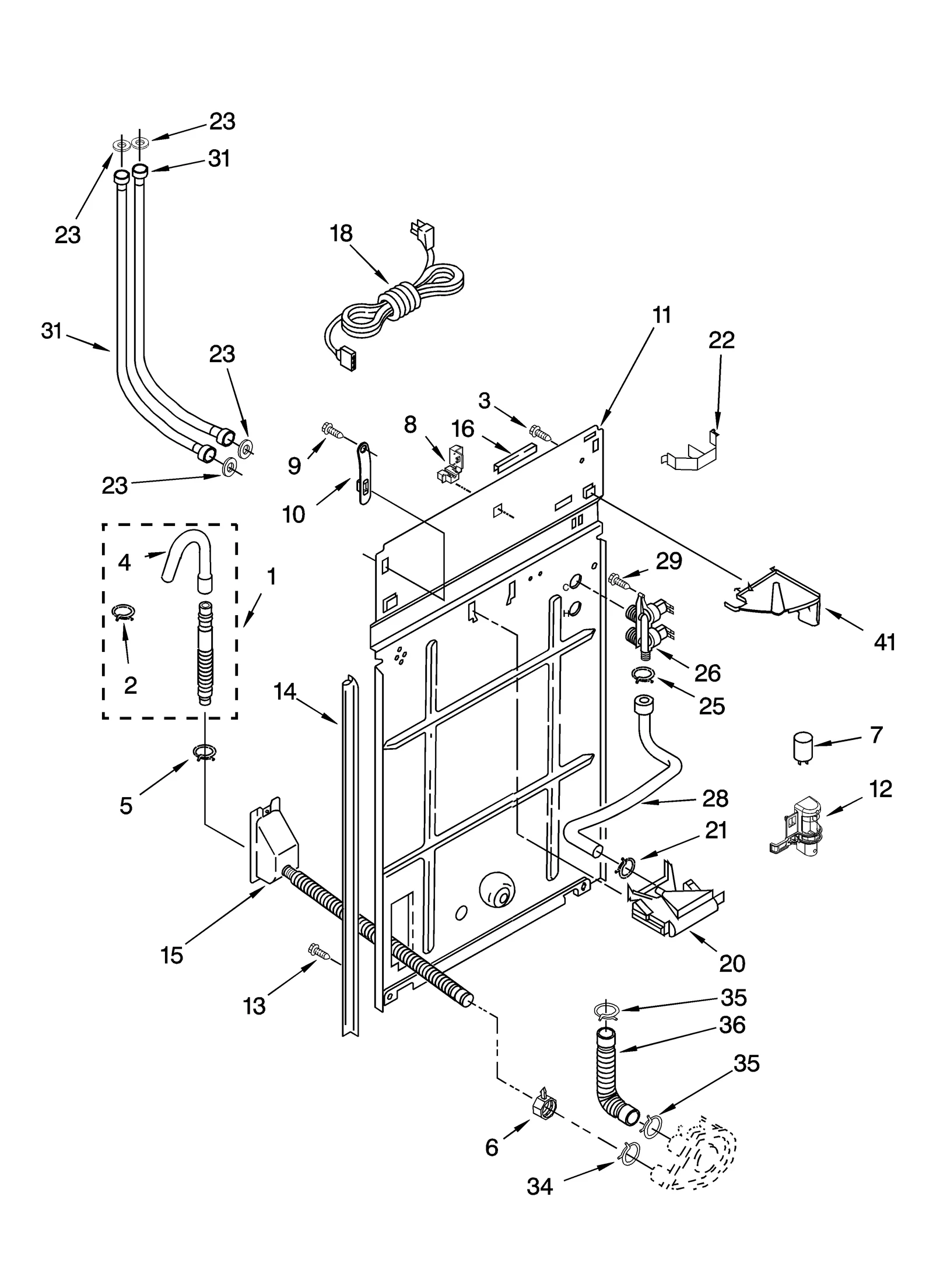

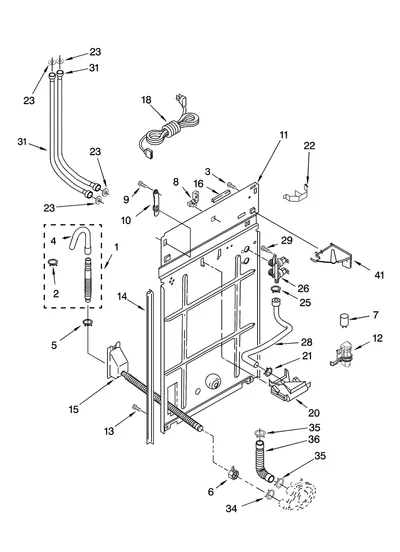

REAR PANEL PARTS
Parts in REAR PANEL PARTS
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 285664replaces 3951609 Drain Hose | $16.76 Part Advantage |
| 1A |  | 285666replaces 661577 Drain Hose | $31.25 Parts Dr |
| 1B |  | 285702replaces 3357090 Drain Hose | $35.09 RepairClinic |
| 2 |  | WP3357331replaces 3366913 Clamp | $9.57 ApplianceParts Pro |
| 3 |  | WP3351614replaces 3351614 Washer Screw, #10-24 x 3/8-in | $3.62 Parts Dr |
| 4 |  | WP3357027replaces 3357027 Washer Drain Hose Nozzle | $29.33 Part Advantage |
| 5 |  | WP356138replaces 3366912 Clamp | $3.38 Part Advantage |
| 6 |  | Washer Drain Hose Support Clip | - |
| 7 |  | WP8572720replaces 661605 Capacitor | $32.23 Part Advantage |
| 8 |  | 3952821NLA Relief Stirrer | Discontinued |
| 9 |  | WP90767replaces 90767 Tap Screw | $2.30 Part Advantage |
| 10 |  | WP8568314replaces 8318255 Strap | $9.57 ApplianceParts Pro |
| 11 | | 3356472NLA Rear Panel | Discontinued |
| 12 | | Washer Capacitor Strap | - |
| 13 |  | WP3390631replaces 62863 Screw | $2.30 Part Advantage |
| 14 |  | WP62747replaces 62747 Pad Panel | - |
| 15 |  | WPW10358149replaces 8317940 Washer Inner Drain Hose | $13.44 Part Advantage |
| 16 | | Protector | Discontinued |
| 18 |  | W10820044replaces 661661 Power Cord | $63.13 Parts Dr |
| 20 |  | WP3360977replaces 387606 Break | $22.28 Part Advantage |
| 21 |  | WP596669replaces 370450 Clamp | $2.30 Part Advantage |
| 22 | | WP8055003replaces 8055003 Retainer | - |
| 23 |  | WP16123replaces 3976300 Washer | $2.30 Part Advantage |
| 25 | | WP596669replaces 301958 Clamp | $2.30 Part Advantage |
| 26 |  | WP3979346replaces 3979347 Valve | $38.70 Part Advantage |
| 28 |  | WP8317926replaces 8317974 Hose | $10.20 Part Advantage |
| 29 |  | WP9740848replaces 9740848 SCREW | $3.74 Parts Dr |
| 31 |  | WP89503replaces 3949374 Fill Hose | $4.59 Part Advantage |
| 31A | | WP89503replaces 3949375 Fill Hose | $4.59 Part Advantage |
| 34 |  | WP285655replaces 8317496 Clamp | $3.38 Part Advantage |
| 35 |  | WP616099replaces 3363366 Hose Clamp | $8.55 PartSelect |
| 36 |  | 285871replaces 3951449 Pump Hose | $7.56 Amazon |
| 41 |  | Shield | - |
