Model
Kenmore 110.15864400
Washer (Kenmore 11015864400)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.15864400Washer (Kenmore 11015864400)
11 diagrams243 parts

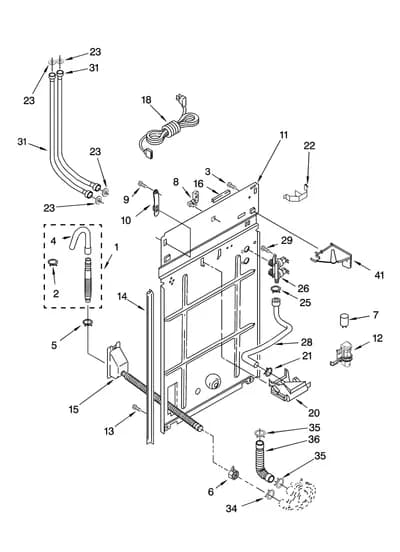

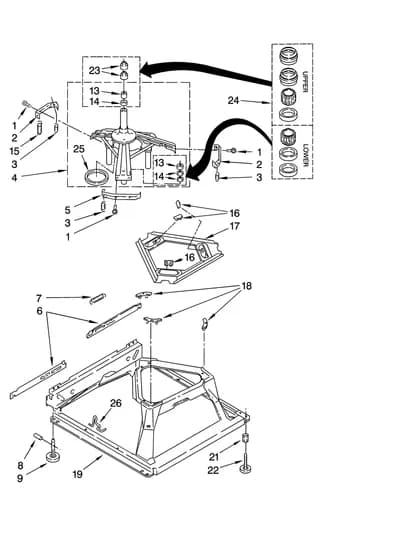

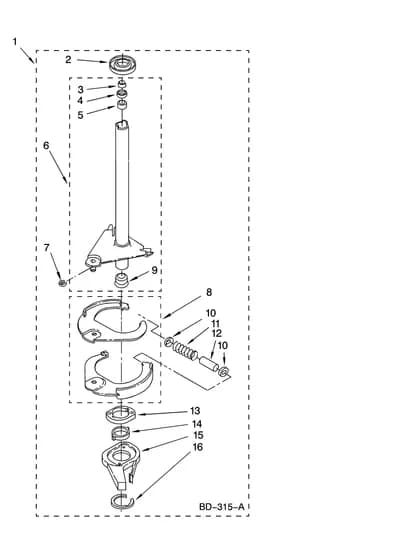

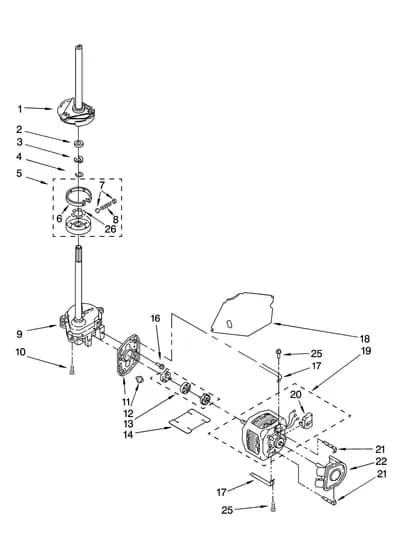

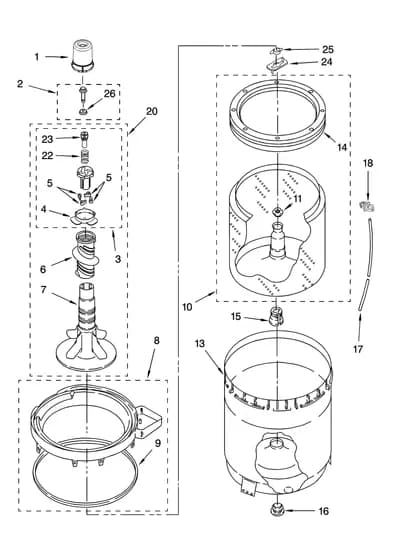

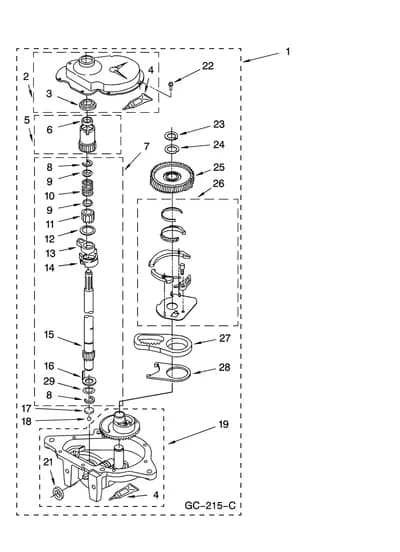

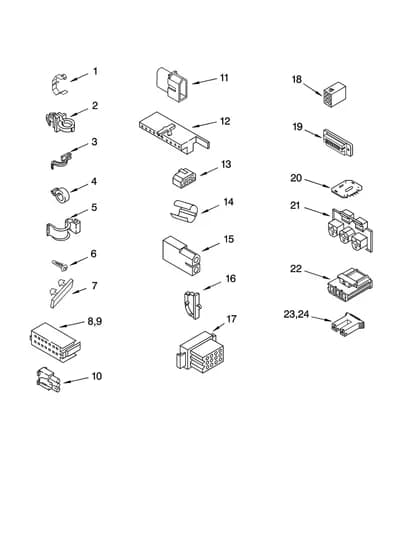

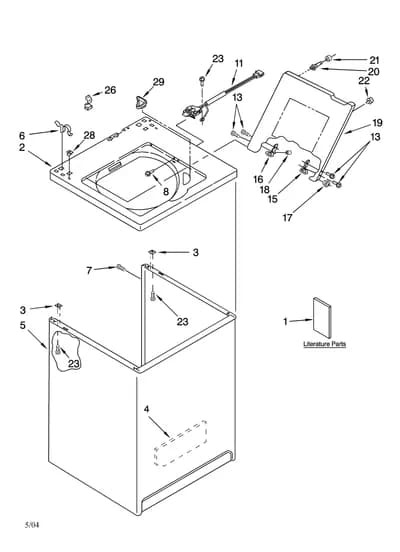

Parts Sections (11)
Diagram

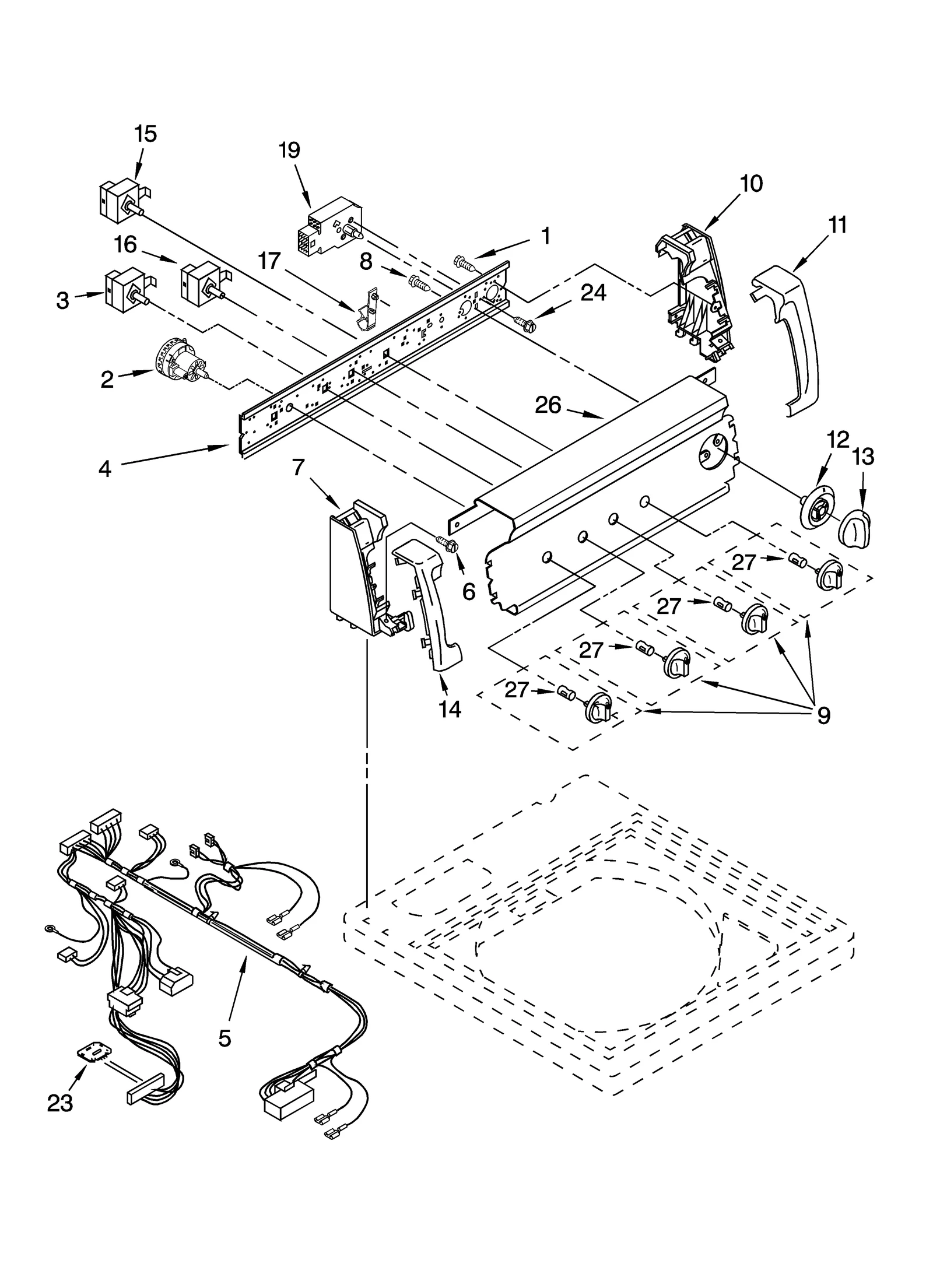

CONTROL PANEL PARTS
Parts in CONTROL PANEL PARTS
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP90767replaces 90767 Tap Screw | $2.30 Part Advantage |
| 2 |  | 8528337NLA Water-Level Pressure Switch | Discontinued |
| 3 | | Washer Temperature Switch | - |
| 4 | | WP3948608replaces 3948608 Bracket | - |
| 5 | | Washer Wire Harness | - |
| 6 |  | WP388326replaces 388326 Washer Screw | $5.00 RepairClinic |
| 7 |  | 279954replaces 3949280 End Cap (White) | $74.34 Parts Dr |
| 7A | – | 3949284 End Cap | - |
| 8 |  | Washer Screw | - |
| 9 | | 3402576NLA Washer Control Knob (Gray and White) | Discontinued |
| 9A | | 3402575NLA Dryer Timer Knob (White) | Discontinued |
| 10 | | 279954replaces 3949274 End Cap (White) | $74.34 Parts Dr |
| 10A | – | 3949278 End Cap (Off-White) | - |
| 11 |  | 279868replaces 3951009 Washer Trim | $78.95 ApplianceParts Pro |
| 11A | | Trim | - |
| 12 |  | 3949432NLA Washer Timer Dial | Discontinued |
| 12A | | Washer Timer Dial (Bisque) | - |
| 13 |  | WP3950715replaces 3950715 Washer Control Knob | $29.10 Part Advantage |
| 13A |  | Washer Control Knob | - |
| 14 | | 279868replaces 3951013 Trim | $78.95 ApplianceParts Pro |
| 14A | | Trim | - |
| 15 | | 8280503NLA Cycle Switch | Discontinued |
| 16 |  | WPW10168257replaces 3949180 Cycle Switch | $77.75 PartSelect |
| 17 | | Washer Clip | - |
| 19 |  | WP8557393replaces 8557393 Washer Timer | $196.42 Part Advantage |
| 23 | – | 3955787 Microcomputer | - |
| 24 |  | WP3400818replaces 3400818 Washer Screw | - |
| 26 | – | 8543626 Control Panel | - |
| 26A | – | 8543627 Control Panel | - |
| 27 |  | WP688805replaces 688805 Laundry Appliance Control Knob Clip | $3.55 Part Advantage |
