Model
Kenmore 110.15944400
Washer (Kenmore 11015944400)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.15944400Washer (Kenmore 11015944400)
11 diagrams247 parts
Parts Sections (11)
Diagram

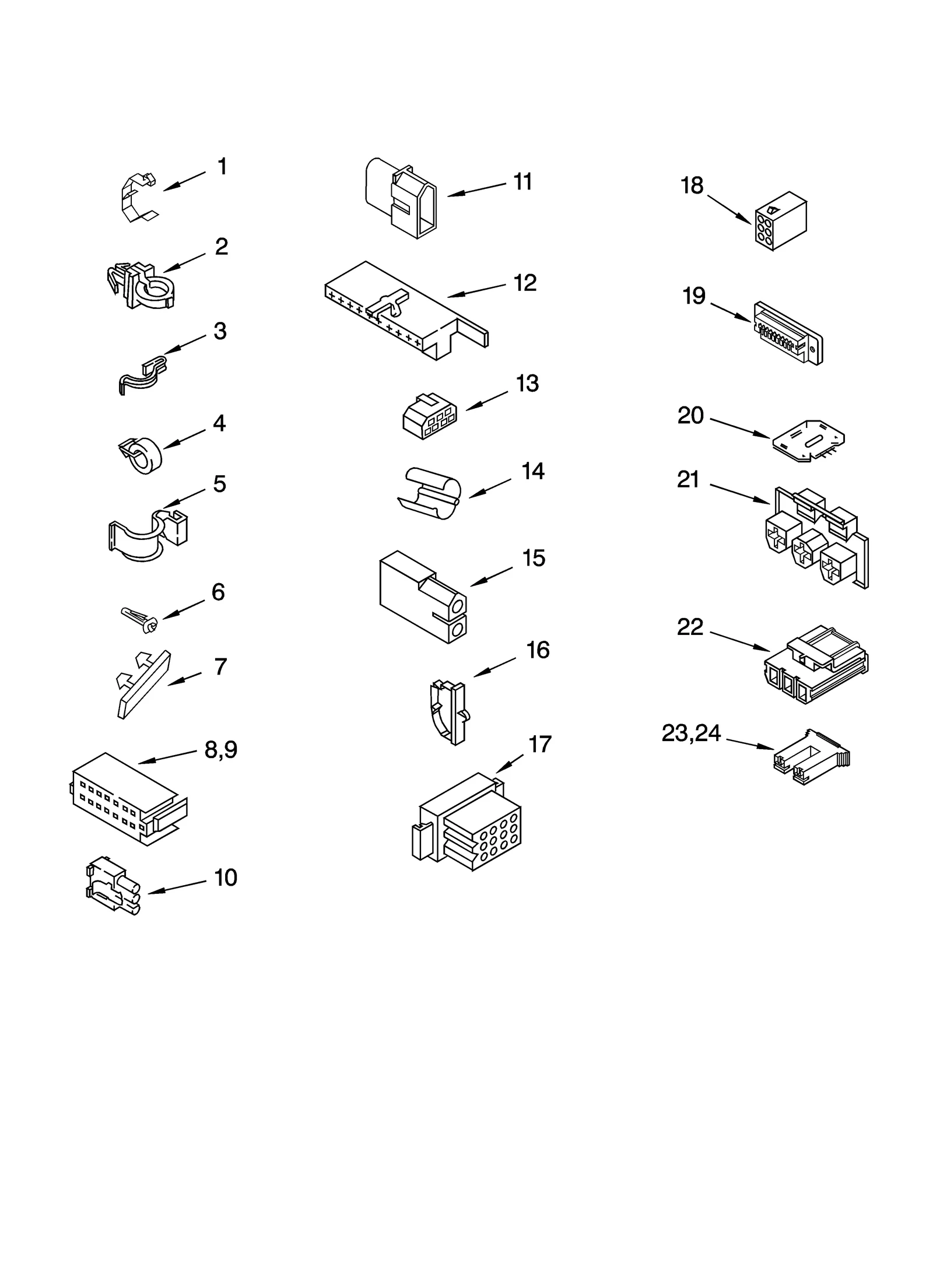

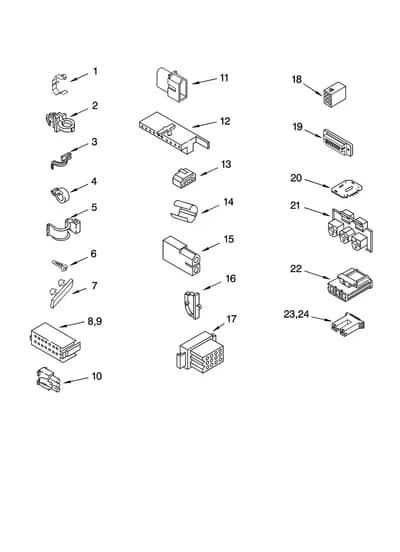

WIRING HARNESS PARTS
Parts in WIRING HARNESS PARTS
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Washer Wire Harness Retainer | - |
| 2 | – | 388498 Harness Clip | - |
| 3 |  | 8528351replaces 3347812 Harness Clip | - |
| 4 |  | 8559320replaces 3352501 Harness Clip | - |
| 5 |  | WP90016replaces 90016 Clip | $7.43 RepairClinic |
| 6 | | 3390496NLA Harness Clip | Discontinued |
| 7 |  | WP389379replaces 389379 Washer Harness Retainer Clip | $5.00 RepairClinic |
| 8 | | Washer Timer Wire Harness Connector | - |
| 9 |  | W10876590replaces 352089 Connector (Black) | $4.52 Part Advantage |
| 10 |  | WP62889replaces 62889 Washer Lid Switch Terminal Receptacle | $9.62 PartSelect |
| 11 |  | Washer Terminal Connector | - |
| 12 |  | WP62505replaces 62505 Connector (Black) | $15.95 ApplianceParts Pro |
| 13 | | 3347243NLA Connector | Discontinued |
| 14 | | Protector | - |
| 15 | | 717252NLA Receptacle | Discontinued |
| 16 | – | 3352944 Harness Clip | - |
| 17 | | Connector | - |
| 18 | | Connector | - |
| 19 | | Connector | - |
| 20 | | 3407125NLA Washer Water Temperature Control Board | Discontinued |
| 21 |  | WP2172937replaces 3948617 Connector | $13.47 RepairClinic |
| 22 |  | WP3360056replaces 3360056 Connector | $12.61 ApplianceParts Pro |
| 23 |  | Washer Cold Water Inlet Valve Wire Connector | - |
| 24 | | 3354926NLA Connector | Discontinued |
