Model
Kenmore 110.15954400
Washer (Kenmore 11015954400)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.15954400Washer (Kenmore 11015954400)
11 diagrams247 parts
Parts Sections (11)
Diagram

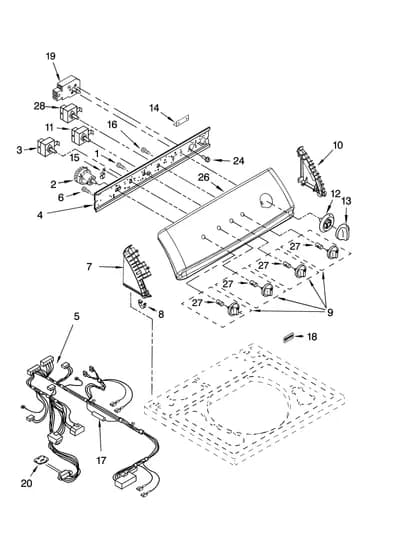

CONTROL PANEL PARTS
Parts in CONTROL PANEL PARTS
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP90767replaces 90767 Tap Screw | $2.30 Part Advantage |
| 2 |  | 8528337NLA Water-Level Pressure Switch | Discontinued |
| 3 | | Washer Temperature Switch | - |
| 4 | – | 8538915 Bracket | - |
| 5 | | Wire Harness | - |
| 6 | – | 8533890 Screw | - |
| 7 | | End Cap (White) | - |
| 7A | | End Cap | - |
| 8 |  | WP8312709replaces 8312709 Laundry Appliance End Cap Clip | $7.96 Part Advantage |
| 9 |  | W10816321replaces 8541468 Washer Control Knob | $35.99 Parts Dr |
| 9A | | Washer Control Knob (Bisque) | - |
| 10 | | End Cap (White) | - |
| 10A | | End Cap | - |
| 11 | | Cycle Switch | - |
| 12 | | 8541465NLA Washer Timer Dial | Discontinued |
| 12A | | 8541466NLA Dial | Discontinued |
| 13 | | 8541457NLA Washer Control Knob | Discontinued |
| 13A | | 8541458NLA Washer Control Knob | Discontinued |
| 14 | | Shield | - |
| 15 | | Washer Clip | - |
| 16 |  | Washer Screw | - |
| 17 | – | 8317387 Fuse | - |
| 18 | | WP9744397replaces 9744397 Medallion | - |
| 19 |  | WP8541110replaces 8541110 Washer Timer | $134.45 Part Advantage |
| 20 | – | 3955787 Microcomputer | - |
| 24 |  | WP3400818replaces 3400818 Washer Screw | - |
| 26 | – | 8543568 Control Panel | - |
| 26A | – | 8543569 Control Panel | - |
| 27 |  | WP8536939replaces 8536939 Laundry Appliance Control Knob Clip | $3.55 Part Advantage |
| 28 |  | WP3954573replaces 3954573 Washer Cycle Selector Switch | $100.70 Parts Dr |
