Kenmore 110.20272000
Commercial Washer (Kenmore 11020272000)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.20272000Commercial Washer (Kenmore 11020272000)
11 diagrams179 parts

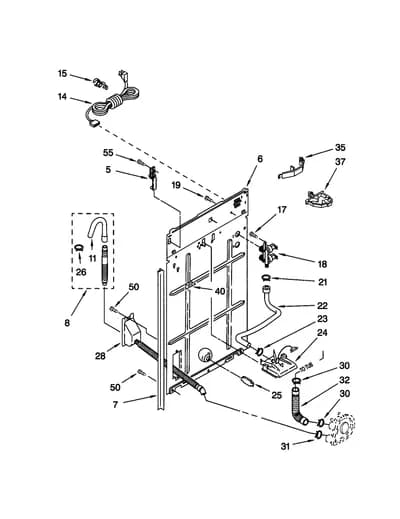

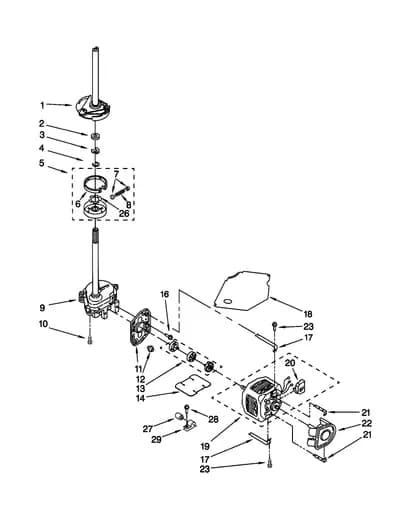

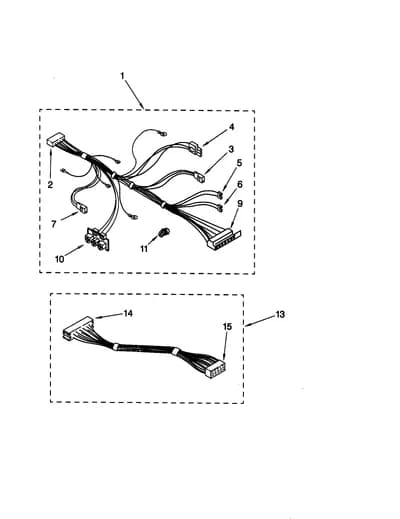

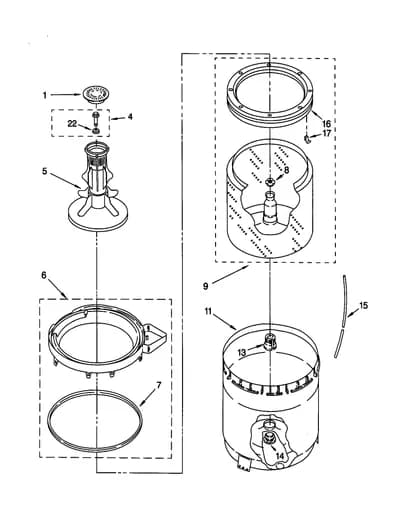

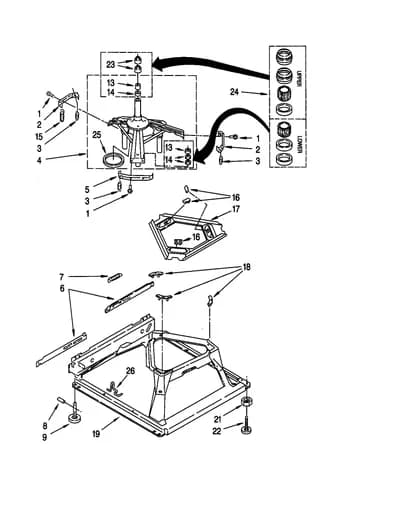

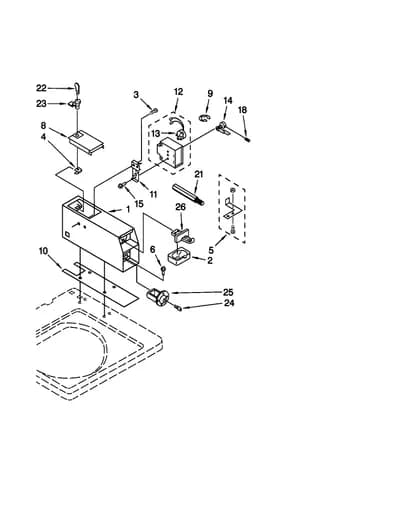

Parts Sections (11)
Diagram

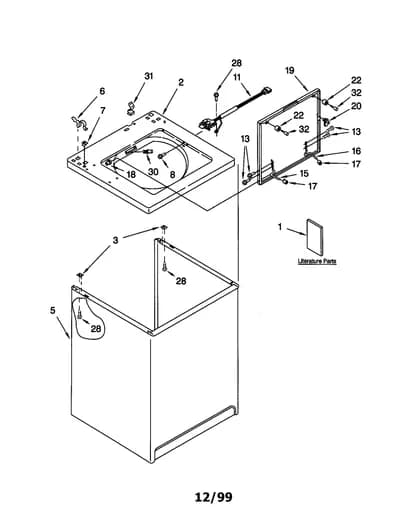

TOP AND CABINET
Parts in TOP AND CABINET
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | LIT3348444 Wiring Diagram | - |
| 1A | – | LIT3976332 Technical Sheet | - |
| 1B | – | LIT3948597 Installation Instructions | - |
| 1C | – | LIT8312797 Parts List | - |
| 2 |  | Washer Top Panel (White) | - |
| 3 |  | WP62750replaces 62750 Washer Cabinet Spacer | $3.38 Part Advantage |
| 5 |  | Washer Cabinet (White) | - |
| 6 |  | WP62780replaces 62780 Washer Cabinet Clip | $3.55 Part Advantage |
| 7 |  | WP357213replaces 357213 Nut | $5.95 ApplianceParts Pro |
| 8 |  | WP3356311replaces 3356311 Laundry Appliance Screw | $2.30 Part Advantage |
| 11 | – | 3949237 Switch | - |
| 13 |  | WPW10119828replaces 355274 Lid Hinge Mounting Screw | $2.41 Part Advantage |
| 15 |  | WP54584replaces 54584 Hinge | $11.20 Parts Dr |
| 16 |  | WP54583replaces 54583 Washer Lid Hinge, Rear | $8.57 Part Advantage |
| 17 | | 19119NLA Bumper, Lid Hinge | Discontinued |
| 18 |  | WP21258replaces 21258 Washer Lid Hinge Bearing | $3.18 Part Advantage |

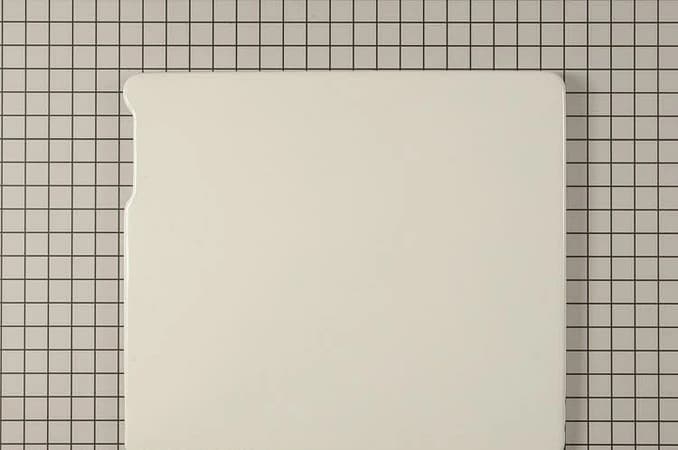

| 19 |  | WP3398848replaces 3349049 Lid (White) | $201.95 ApplianceParts Pro |
| 20 |  | WP358684replaces 358684 Washer Door Strike | $2.87 Part Advantage |
| 22 | | Lid Bumper | Discontinued |
| 28 |  | WP3390631replaces 62863 Screw | $2.30 Part Advantage |
| 30 | | Rivet | $6.10 RepairClinic |
| 31 |  | WP90016replaces 90016 Clip | $7.43 RepairClinic |
| 32 |  | WP356907replaces 356907 Rivet | $2.47 RepairClinic |
