Model
Kenmore 110.22956100
Washer (Kenmore 11022956100)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.22956100Washer (Kenmore 11022956100)
11 diagrams270 parts
Parts Sections (11)
Diagram

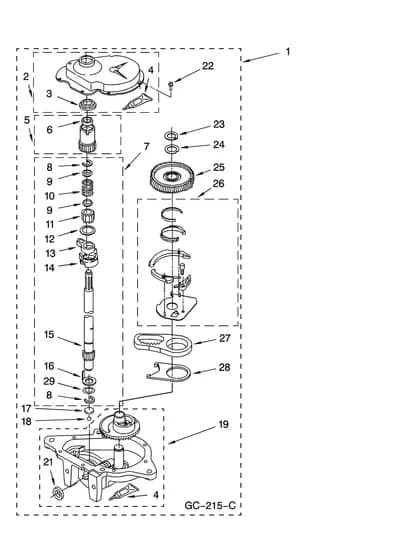

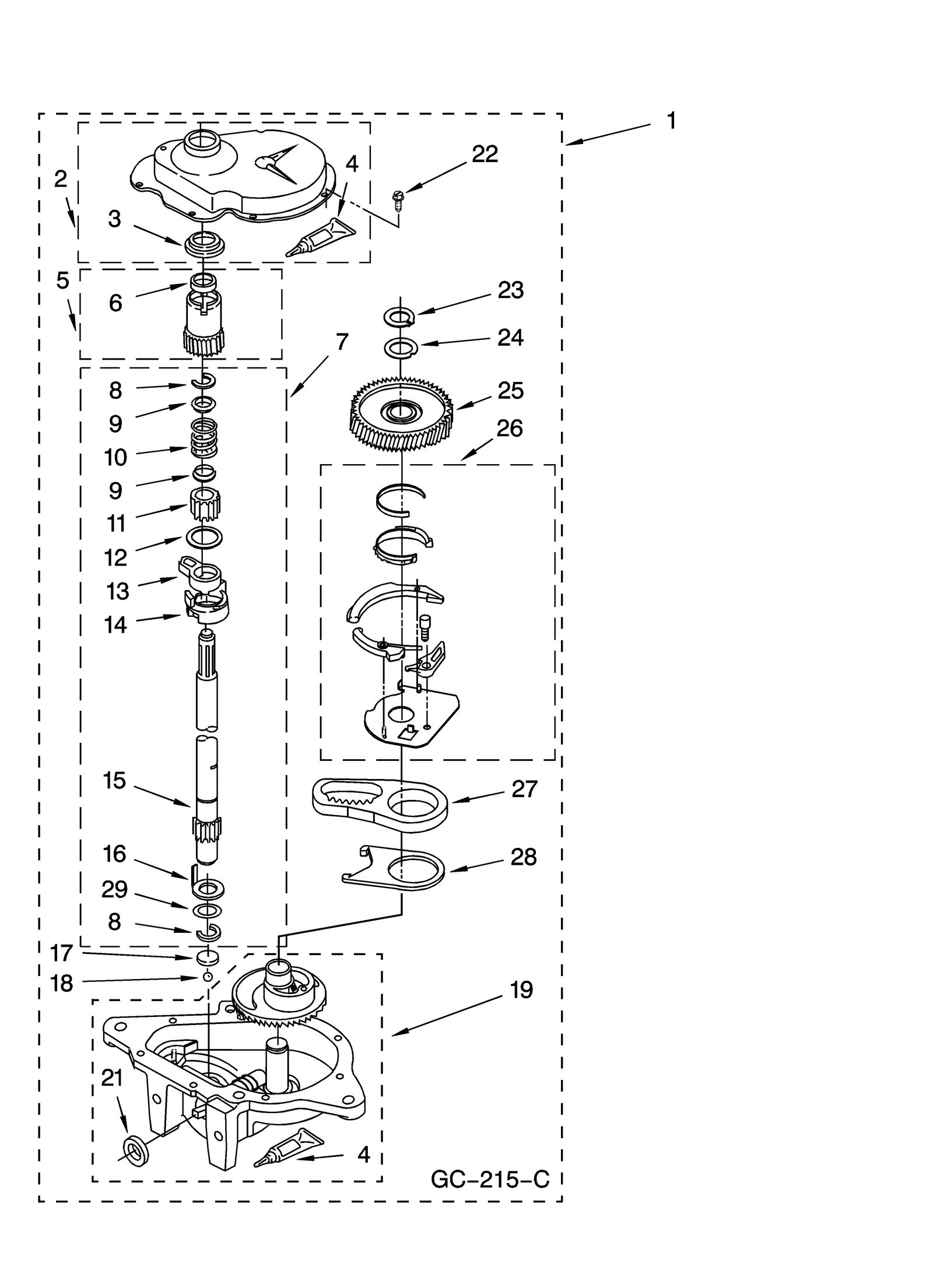

GEARCASE PARTS
Parts in GEARCASE PARTS
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 3360629replaces 3360630 Gear Case | $225.98 Part Advantage |

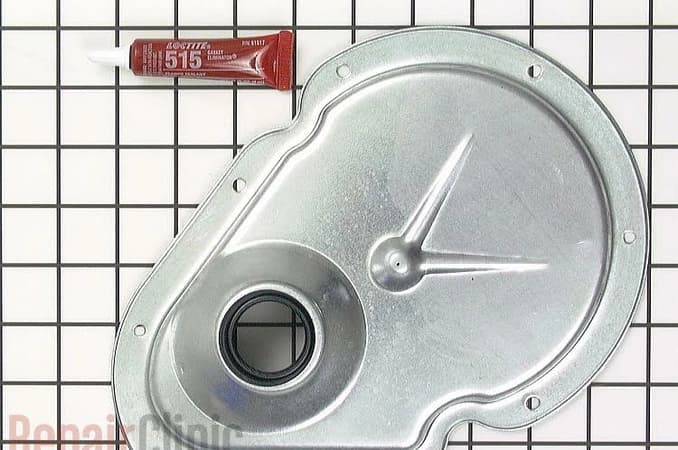

| 2 |  | Washer Gear Case Cover, Upper | - |
| 3 |  | WP3349985replaces 3349985 Washer Gear Case Cover Seal | $8.55 Part Advantage |
| 4 |  | WP285195replaces 285195 Appliance Sealant | $64.70 ApplianceParts Pro |
| 5 | | 3360629replaces 63320 Pinion | $225.98 Part Advantage |
| 6 |  | WP356427replaces 356427 Shaft Seal | $3.55 Part Advantage |
| 7 |  | WP389387replaces 389387 Shaft | $127.65 ApplianceParts Pro |
| 8 |  | 90369NLA Retaining Ring | Discontinued |
| 9 |  | Washer Gear Case Spring Retainer | - |
| 10 | | 62676NLA Spring | Discontinued |
| 11 | | WP389387replaces 63273 Gear | $127.65 ApplianceParts Pro |
| 12 |  | Washer Gear Case Flat Washer | - |
| 13 | | WP389387replaces 62580 Follower | $127.65 ApplianceParts Pro |
| 14 | | WP389387replaces 62581 Cam | $127.65 ApplianceParts Pro |
| 15 | | WP389387replaces 285509 Washer Agitator Drive Shaft | $127.65 ApplianceParts Pro |
| 16 | | 62618NLA Washer | Discontinued |
| 17 |  | 285205replaces 16018 Bearing | - |
| 18 | | 285205replaces 85529 Ball | - |
| 19 | | 3360629replaces 389230 Gear Case | $225.98 Part Advantage |
| 21 |  | Washer Gear Case Oil Seal | $29.76 Part Advantage |
| 22 |  | WP3351614replaces 3351614 Washer Screw, #10-24 x 3/8-in | $3.62 Parts Dr |
| 23 | – | 3362552 Retainer Ring | - |
| 24 | – | 285735 Washer | - |
| 25 | | 3360629replaces 62570 Gear | $225.98 Part Advantage |
| 26 |  | 388253Areplaces 388253 Washer Neutral Drain Assembly | $29.93 Part Advantage |
| 27 | | 3360629replaces 3349296 Rack | $225.98 Part Advantage |
| 28 | | 3360629replaces 62621 Actuator | $225.98 Part Advantage |
| 29 |  | WP388815replaces 388815 Washer | - |
