Model
Kenmore 110.24042301
Washer (Kenmore 11024042301)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.24042301Washer (Kenmore 11024042301)
11 diagrams277 parts

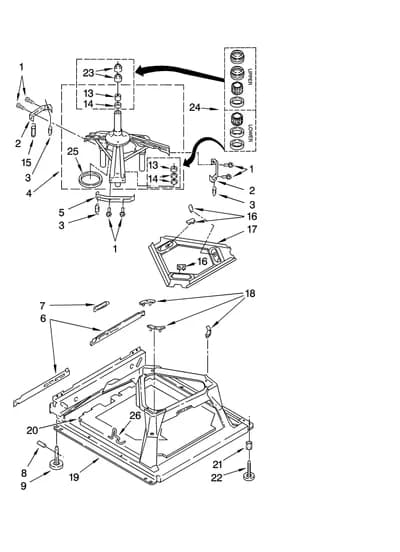

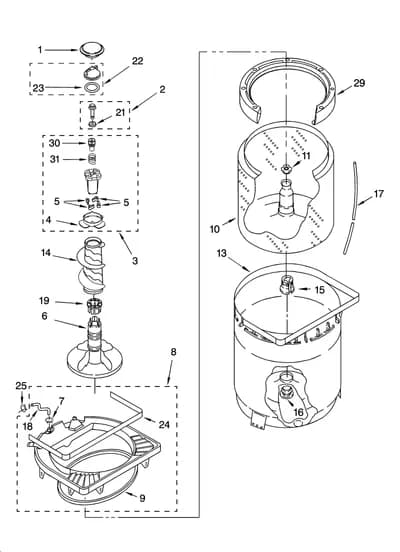

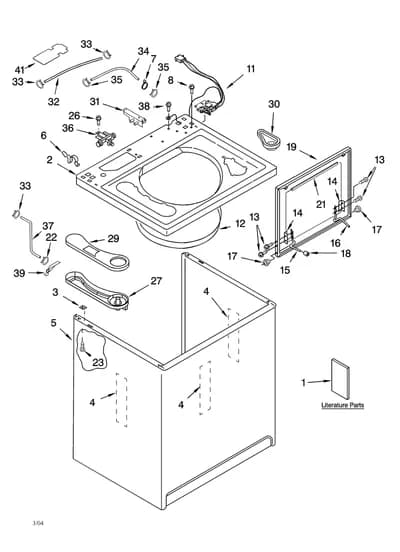

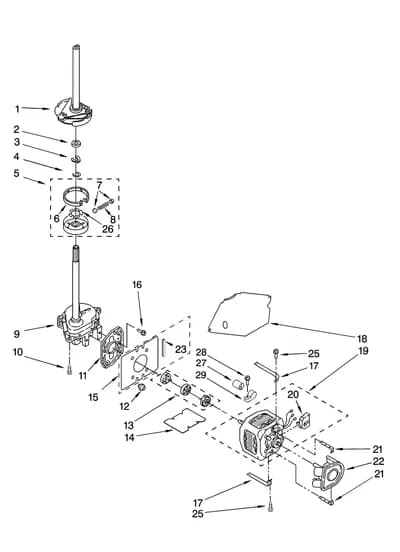

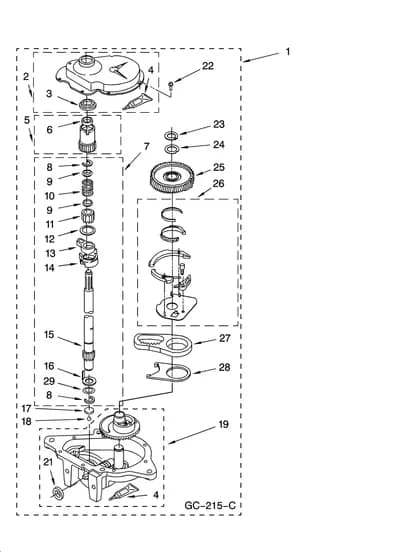

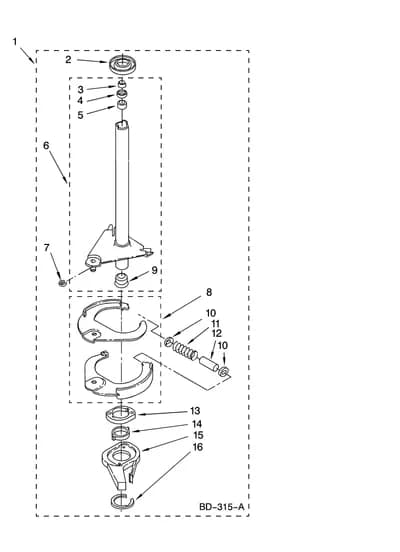

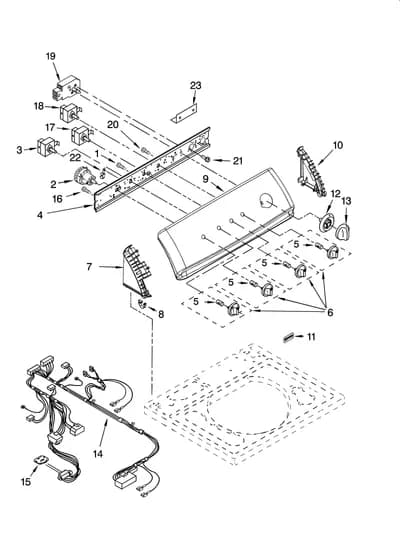

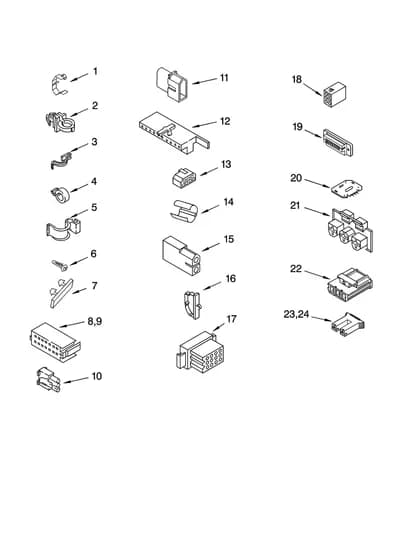

Parts Sections (11)
Diagram

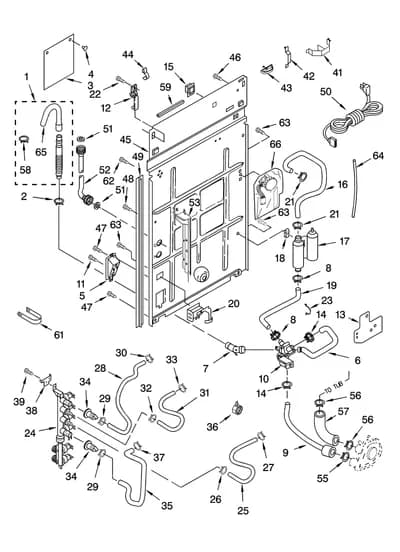

REAR PANEL PARTS
Parts in REAR PANEL PARTS
66 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 285664replaces 3951609 Drain Hose | $16.76 Part Advantage |
| 1A |  | 285666replaces 661577 Drain Hose | $31.25 Parts Dr |
| 1B |  | 285702replaces 3357090 Drain Hose | $35.09 RepairClinic |

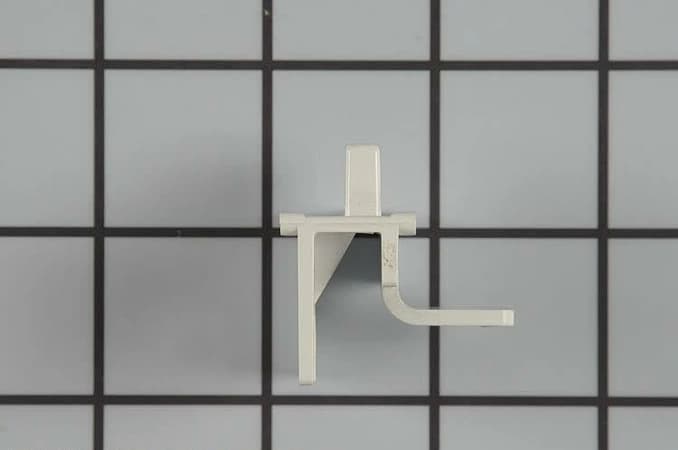

| 2 |  | WP356138replaces 3366912 Clamp | $3.38 Part Advantage |
| 3 | – | 8282565 Shield | - |
| 4 |  | Washer Retainer Clip | $6.10 RepairClinic |
| 5 | | Bracket | - |
| 6 | | 8317908NLA Hose | Discontinued |
| 7 | | Connector | - |
| 8 |  | WP285655replaces 370445 Clamp | $3.38 Part Advantage |
| 9 | – | 8317907 Hose | - |
| 10 | | Washer Inlet Valve | - |
| 11 | – | 3352299 Screw | - |
| 12 | | 387402NLA Hinge Panel | Discontinued |
| 13 | | Shield Valve | - |
| 14 | | WP285655replaces 370449 Clamp | $3.38 Part Advantage |
| 15 | | 3952821NLA Relief Stirrer | Discontinued |
| 16 | | Hose | - |
| 17 | | Pressure Dome | - |
| 18 | | 98084NLA Clip | Discontinued |
| 19 | | Hose | - |
| 20 | | 8283252NLA Switch-bal | Discontinued |
| 21 |  | Kirkland Washer Hose Clamp | $11.71 ApplianceParts Pro |
| 22 | – | 8533890 Screw | - |
| 23 | | Retainer | - |
| 24 | | 8542063NLA Valve | Discontinued |
| 25 | | 8271982NLA Washer Recirculation Pump Hose | Discontinued |
| 26 |  | WP596669replaces 8318490 Clamp | $2.30 Part Advantage |
| 27 | | WP596669replaces 8318492 Clamp | $2.30 Part Advantage |
| 28 | | 8271984NLA Washer Bleach Dispenser Hose | Discontinued |
| 29 | | WP596669replaces 8318493 Clamp | $2.30 Part Advantage |
| 30 | | WP596669replaces 8318494 Clamp | $2.30 Part Advantage |
| 31 | | Washer Softener Dispenser Inlet Hose | - |
| 32 | | WP596669replaces 8318491 Clamp | $2.30 Part Advantage |
| 33 | | WP596669replaces 8318495 Clamp | $2.30 Part Advantage |
| 34 | | 8055306NLA Washer Valve | Discontinued |
| 35 | | 8318496NLA Hose | Discontinued |
| 36 |  | Washer Drain Hose Support Clip | - |
| 37 | | WP285655replaces 8318497 Clamp | $3.38 Part Advantage |
| 38 | – | 8271909 Bracket | - |
| 39 |  | WP9740848replaces 8318499 Screw | $3.74 Parts Dr |
| 41 | | WP8055003replaces 8055003 Retainer | - |
| 42 | – | 8054658 Retainer | - |
| 43 | – | 3352944 Harness Clip | - |
| 44 |  | 8528351replaces 3347812 Harness Clip | - |
| 45 | | Rear Panel | - |
| 46 |  | WP3351614replaces 3351614 Washer Screw, #10-24 x 3/8-in | $3.62 Parts Dr |
| 47 |  | WP3390631replaces 62863 Screw | $2.30 Part Advantage |
| 48 |  | WP489069replaces 693995 Washer Screw | $2.30 Part Advantage |
| 49 |  | WP62747replaces 62747 Pad Panel | - |
| 50 |  | W10820044replaces 661661 Power Cord | $63.13 Parts Dr |
| 51 |  | WP16123replaces 3976300 Washer | $2.30 Part Advantage |
| 52 |  | WP89503replaces 3949374 Fill Hose | $4.59 Part Advantage |
| 52A | | WP89503replaces 3949375 Fill Hose | $4.59 Part Advantage |
| 53 | – | 8543414 Shield | - |
| 55 | | WP285655replaces 8317496 Clamp | $3.38 Part Advantage |
| 56 |  | WP616099replaces 371504 Clamp | $8.55 PartSelect |
| 57 | | 8055063NLA Hose | Discontinued |
| 58 |  | WP3357331replaces 3366913 Clamp | $9.57 ApplianceParts Pro |
| 59 | | Protector | Discontinued |
| 61 | – | 8272128 Clip | - |
| 62 | | WP9740848replaces 9740848 SCREW | $3.74 Parts Dr |
| 63 |  | WP681414replaces 3390663 Screw | $2.30 Part Advantage |
| 64 |  | WP353244replaces 3347781 Hose-wl | $31.19 Part Advantage |
| 65 |  | WP3357027replaces 3357027 Washer Drain Hose Nozzle | $29.33 Part Advantage |
| 66 | | Water-Level Switch | - |
