Model
Kenmore 110.24924202
Washer (Kenmore 11024924202)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.24924202Washer (Kenmore 11024924202)
11 diagrams250 parts

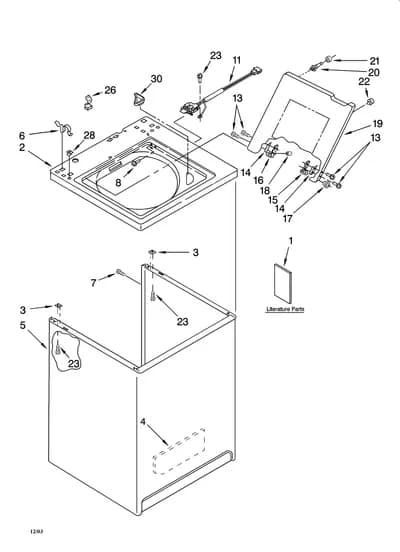

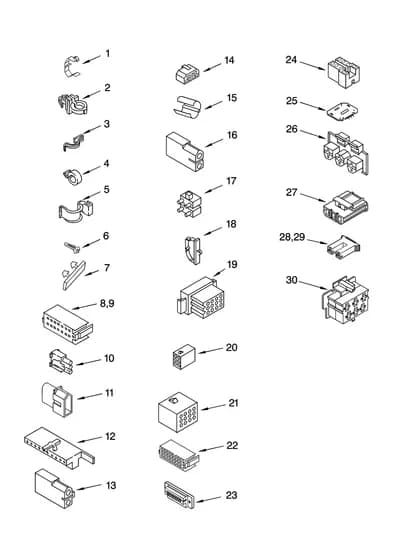

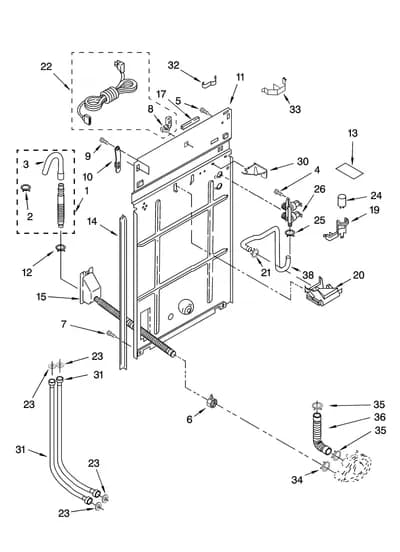

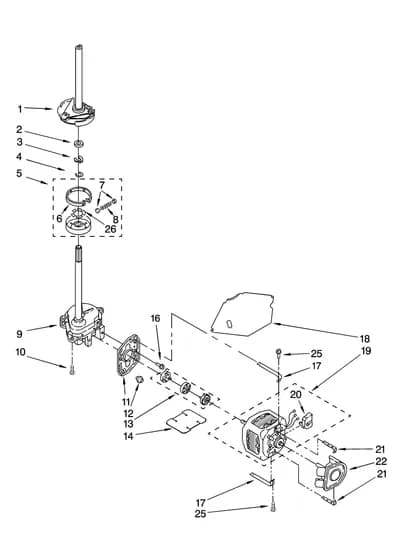

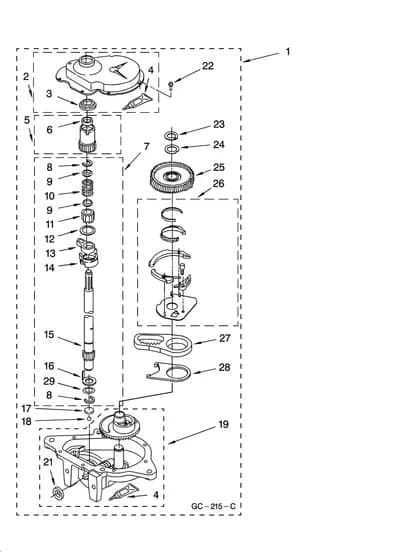

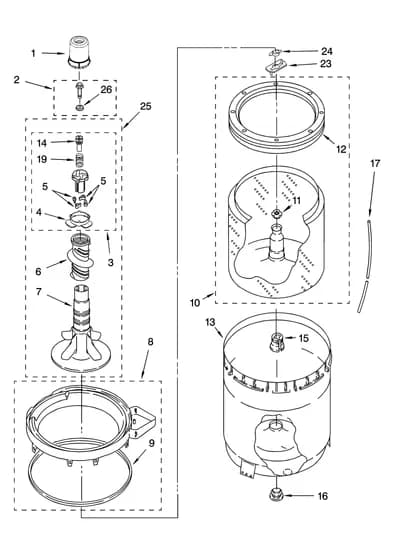

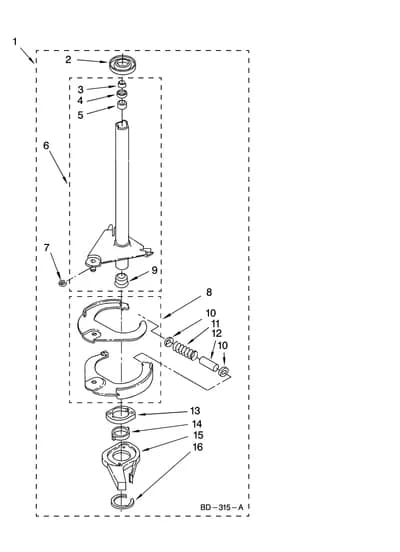

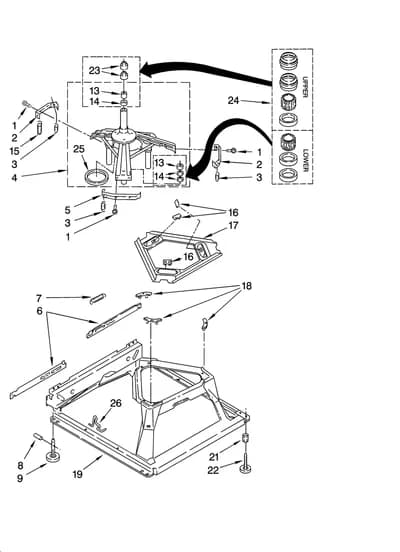

Parts Sections (11)
Diagram

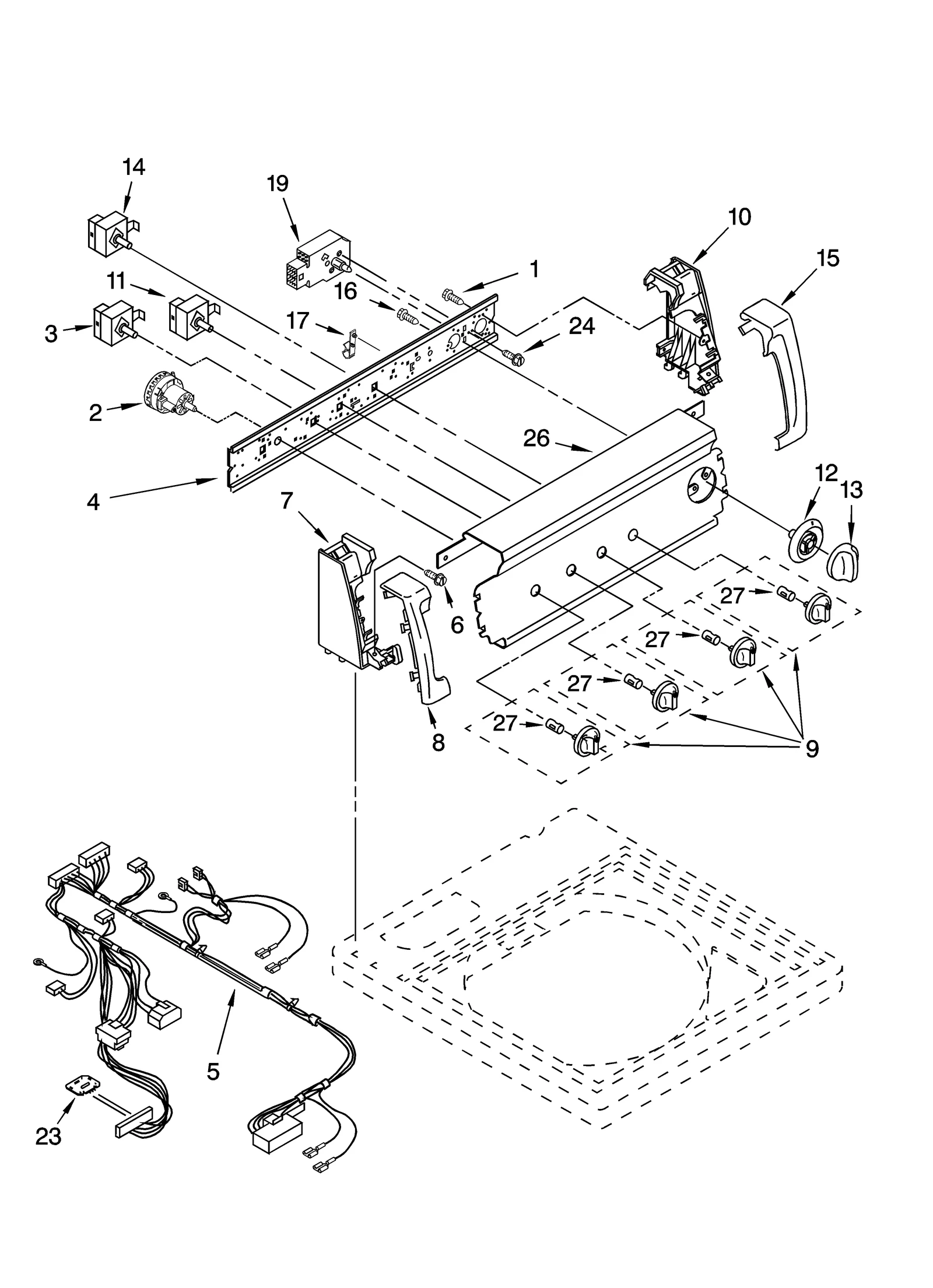

CONTROL PANEL PARTS
Parts in CONTROL PANEL PARTS
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

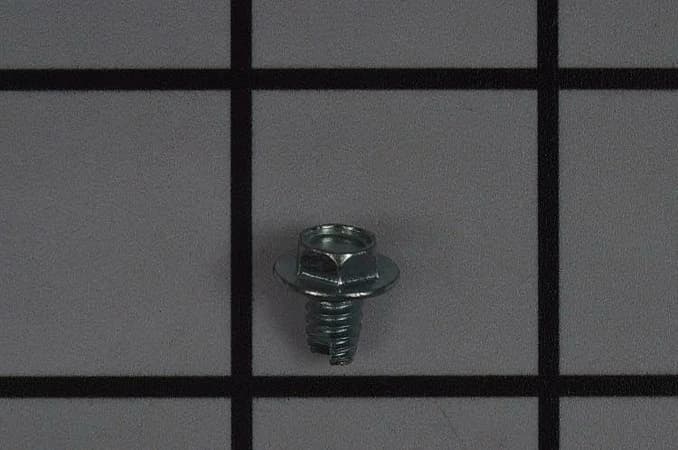

| 1 |  | WP90767replaces 90767 Tap Screw | $2.30 Part Advantage |
| 2 |  | W10337780replaces 3366847 Washer Water-Level Pressure Switch Kit | $41.60 Part Advantage |
| 3 | – | 3950344 Temperature Switch | - |
| 4 |  | WP3948608replaces 3948608 Bracket | - |
| 5 | – | 3955719 Wire Harness | - |
| 6 |  | WP388326replaces 388326 Washer Screw | $5.00 RepairClinic |
| 7 |  | 279954replaces 3949280 End Cap (White) | $74.34 Parts Dr |
| 7A | – | 3949284 End Cap | - |
| 8 |  | 279868replaces 3951013 Trim | $78.95 ApplianceParts Pro |
| 8A | | Trim | - |
| 9 | | 3402576NLA Washer Control Knob (Gray and White) | Discontinued |
| 9A | | 3402575NLA Dryer Timer Knob (White) | Discontinued |
| 10 | | 279954replaces 3949274 End Cap (White) | $74.34 Parts Dr |
| 10A | – | 3949278 End Cap (Off-White) | - |
| 11 |  | WPW10168257replaces 3949180 Cycle Switch | $77.75 PartSelect |
| 12 |  | 3949432NLA Washer Timer Dial | Discontinued |
| 12A | | Washer Timer Dial (Bisque) | - |
| 13 | | 3948416NLA Washer Timer Knob (Gray and White) | Discontinued |
| 13A | | 3948415NLA Washer Control Knob | Discontinued |
| 14 | | Washer Cycle Selector Switch | - |
| 15 | | 279868replaces 3951009 Washer Trim | $78.95 ApplianceParts Pro |
| 15A | | Trim | - |
| 16 |  | Washer Screw | - |
| 17 | | Washer Clip | - |

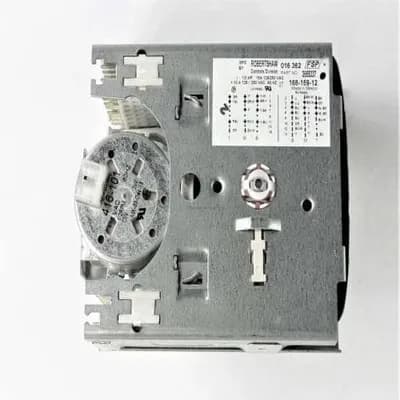

| 19 |  | WP3955337replaces 3955337 Washer Timer | $205.95 ApplianceParts Pro |
| 23 | – | 8539879 Microcomputer | - |

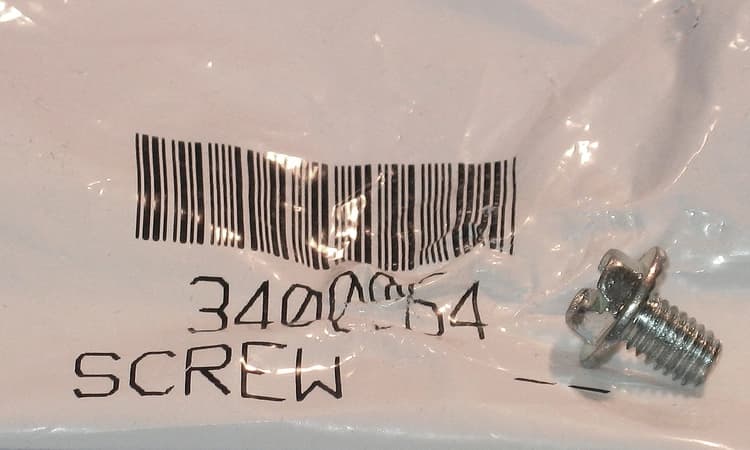

| 24 |  | WP3400064replaces 3400064 Timer Mounting Screw | $7.43 ApplianceParts Pro |
| 26 | – | 8537151 Control Panel | - |
| 26A | – | 8537290 Control Panel | - |
| 27 |  | WP688805replaces 688805 Laundry Appliance Control Knob Clip | $3.55 Part Advantage |
