Model
Kenmore 110.25292501
Washer (Kenmore 11025292501)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.25292501Washer (Kenmore 11025292501)
11 diagrams226 parts
Parts Sections (11)
Diagram

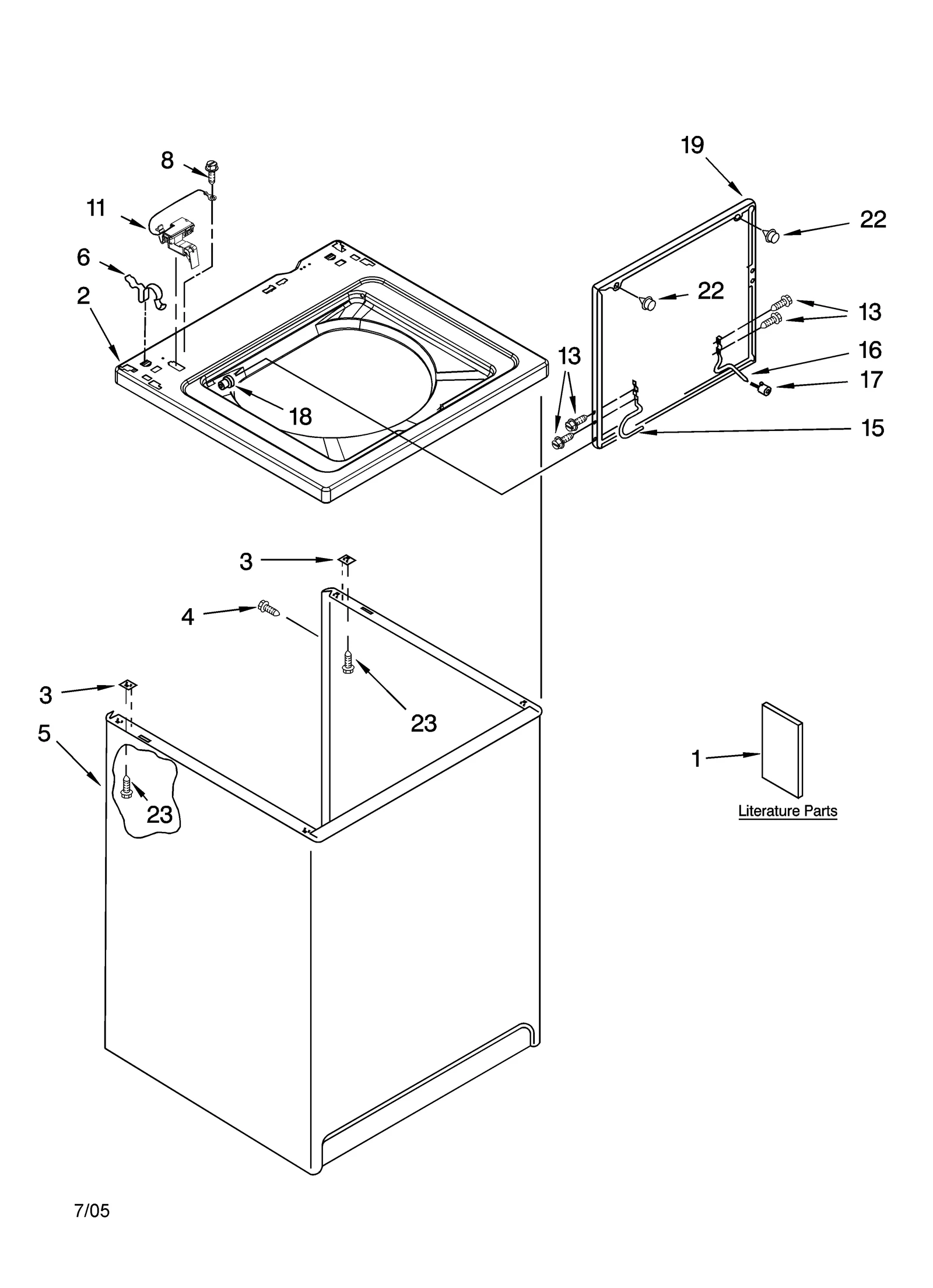

TOP AND CABINET PARTS
Parts in TOP AND CABINET PARTS
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8566999 Installation Instructions | - |
| 1A | – | 8567000 Washer Owner's Manual | - |
| 1B | – | 8574997 Wiring Diagram | - |
| 1C | – | 8567131 Energy Guide | - |
| 1D | – | 856686 REPAIR PARTS LIST (0) | - |
| 1E | – | N/P (338471) (ALT.) | - |
| 1F | – | 4314044 Washer Owner's Manual | - |
| 2 |  | Cooktop Main Top | - |
| 2A | – | 8567425 Top | - |
| 3 |  | WP62750replaces 62750 Washer Cabinet Spacer | $3.38 Part Advantage |
| 4 |  | WP308685replaces 3357011 Screw | $2.30 Part Advantage |
| 5 |  | Washer Cabinet (White) | - |
| 5A | | Washer Cabinet | - |
| 6 |  | WP62780replaces 62780 Washer Cabinet Clip | $3.55 Part Advantage |
| 8 |  | WP3351614replaces 3351614 Washer Screw, #10-24 x 3/8-in | $3.62 Parts Dr |
| 11 |  | WP8318084replaces 8318084 Washer Lid Switch Assembly | $18.14 Part Advantage |
| 13 |  | WPW10119828replaces 3351355 Screw | $2.41 Part Advantage |
| 15 |  | Hinge Washer | - |
| 16 |  | WP54583replaces 54583 Washer Lid Hinge, Rear | $8.57 Part Advantage |
| 17 | | 19119NLA Bumper, Lid Hinge | Discontinued |
| 18 |  | WP21258replaces 21258 Washer Lid Hinge Bearing | $3.18 Part Advantage |
| 19 |  | WPW10193857replaces 8567429 Lid | $211.09 RepairClinic |
| 19A | | Lid | Discontinued |
| 22 |  | WP9724509replaces 9724509 Washer Lid Bumper | $2.41 Part Advantage |
| 23 |  | WP3390631replaces 3390631 Laundry Appliance Screw | $2.30 Part Advantage |
