Model
Kenmore 110.26852503
Washer (Kenmore 11026852503)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.26852503Washer (Kenmore 11026852503)
11 diagrams219 parts
Parts Sections (11)
Diagram

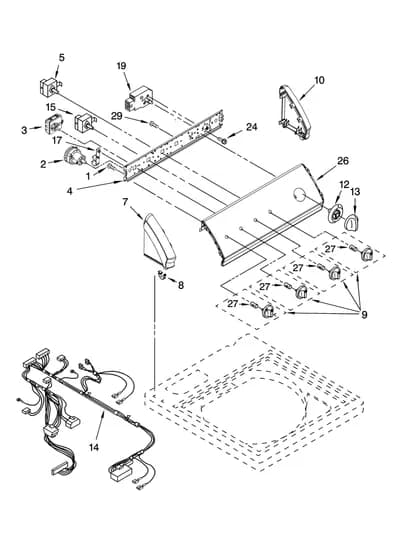

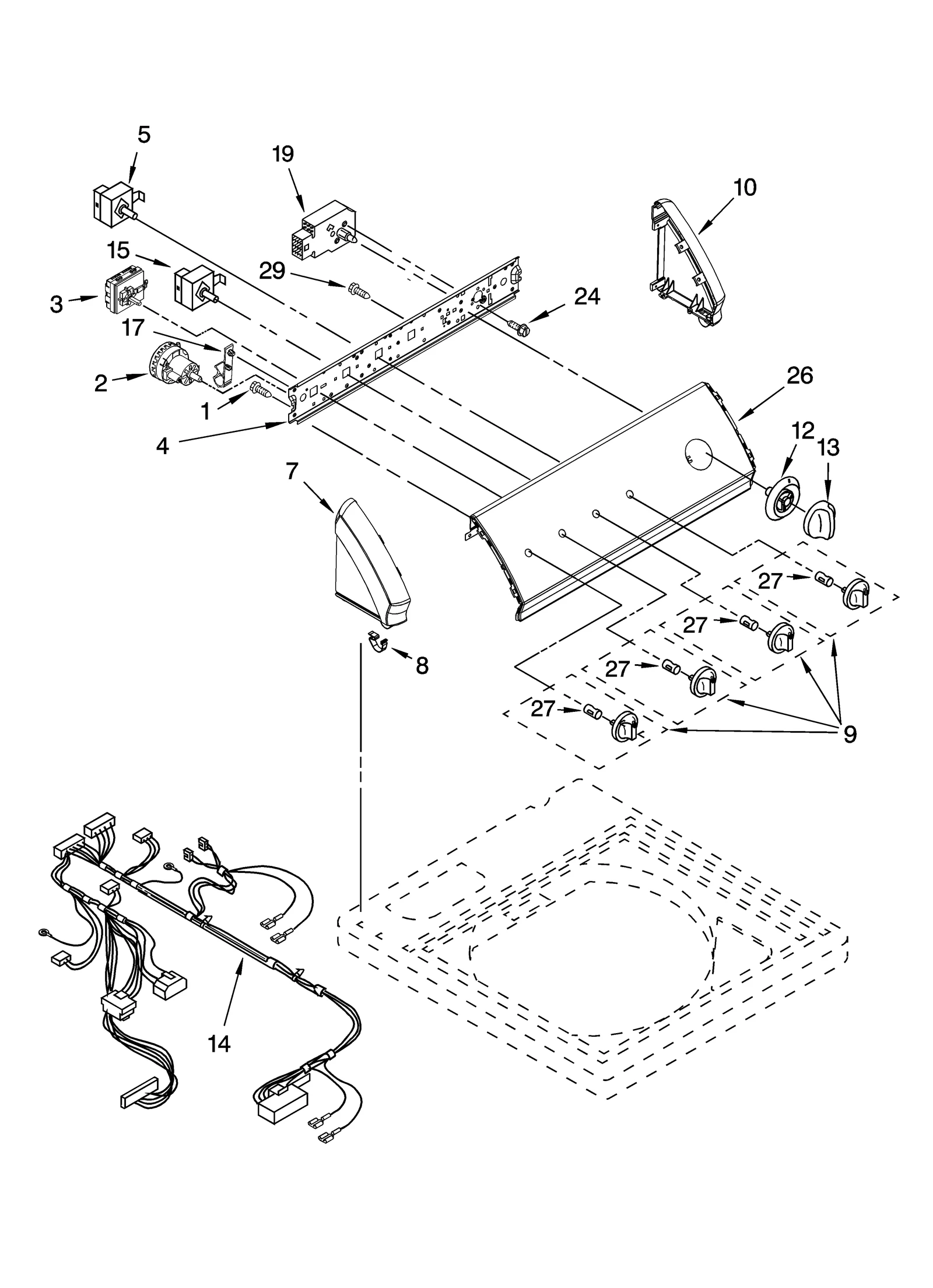

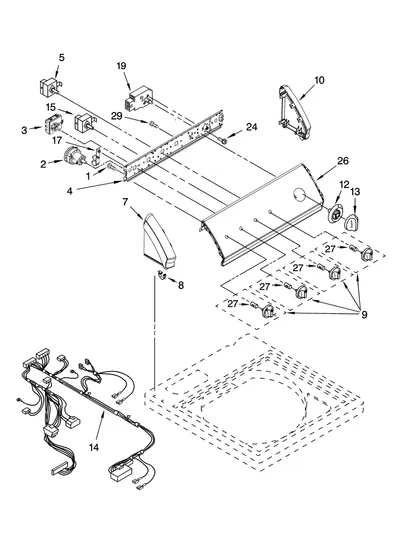

CONTROL PANEL PARTS
Parts in CONTROL PANEL PARTS
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP90767replaces 90767 Tap Screw | $2.30 Part Advantage |
| 2 |  | W10337780replaces 3366847 Washer Water-Level Pressure Switch Kit | $41.60 Part Advantage |

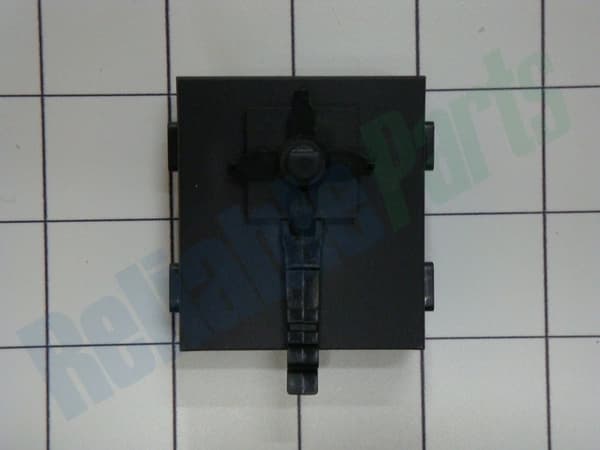

| 3 |  | WP8564139replaces 8564139 Washer Temperature Switch | - |
| 4 | – | 8559504 Bracket | - |
| 5 |  | 8280503NLA Cycle Switch | Discontinued |
| 7 |  | WP8559502replaces 8559502 Washer Control Panel End Cap, Left | $51.23 ApplianceParts Pro |
| 8 |  | WP8312709replaces 8312709 Laundry Appliance End Cap Clip | $7.96 Part Advantage |
| 9 |  | W10816321replaces 3956788 Washer Control Knob | $35.99 Parts Dr |
| 10 |  | WP8559501replaces 8559501 End Cap (White) | - |
| 12 | | 3956787NLA Washer Timer Knob | Discontinued |
| 13 | | 3956786NLA Washer Timer Knob (Gray and White) | Discontinued |
| 14 | | 3957363NLA Washer Wire Harness | Discontinued |
| 15 |  | WPW10168257replaces 3949180 Cycle Switch | $77.75 PartSelect |
| 17 | | Washer Clip | - |
| 19 |  | WP8557393replaces 8557393 Washer Timer | $196.42 Part Advantage |
| 24 |  | WP3400818replaces 3400818 Washer Screw | - |
| 26 | – | 8566600 Control Panel | - |
| 27 |  | WP8536939replaces 8536939 Laundry Appliance Control Knob Clip | $3.55 Part Advantage |
| 29 |  | Washer Screw | - |
