Model
Kenmore 110.28942890
Washer (Kenmore 11028942890)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.28942890Washer (Kenmore 11028942890)
11 diagrams237 parts

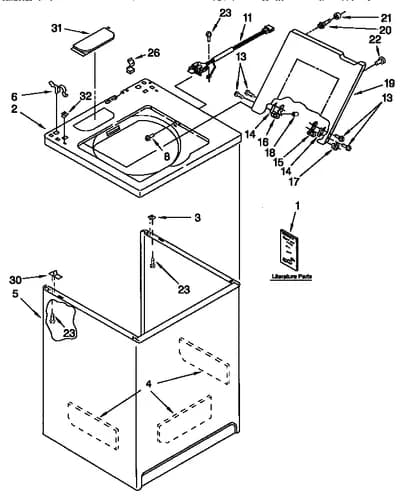

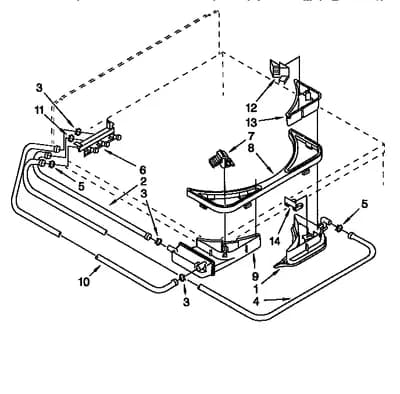

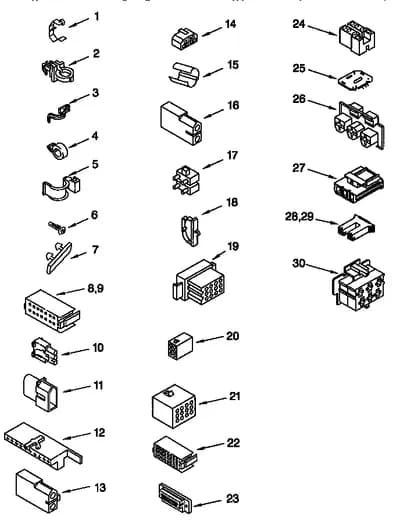

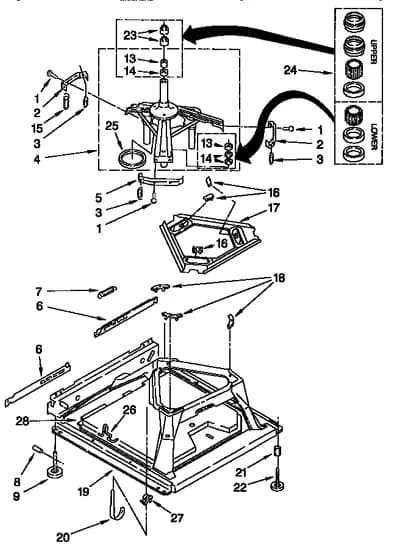

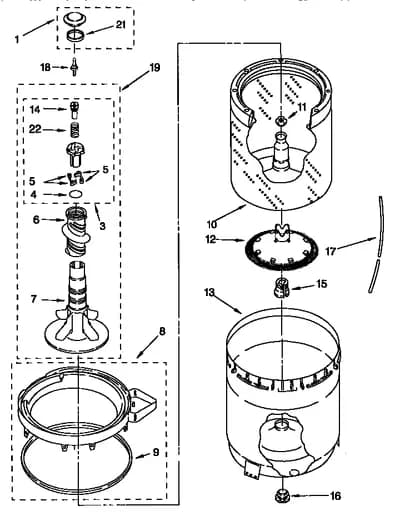

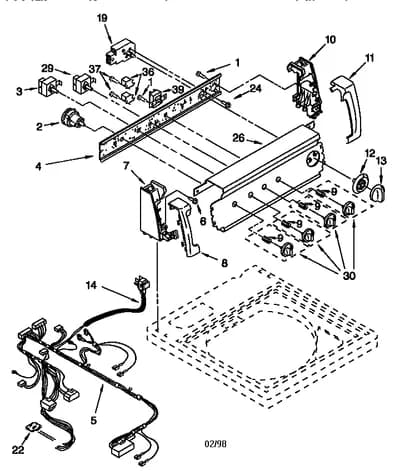

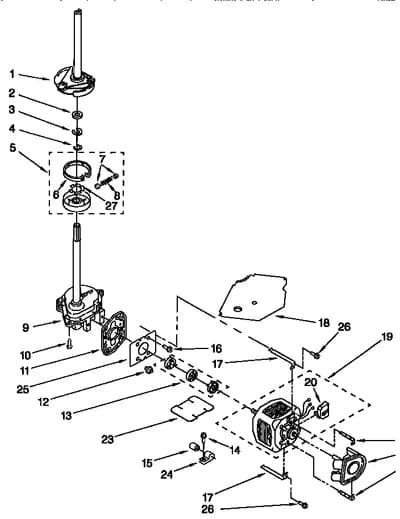

Parts Sections (11)
Diagram

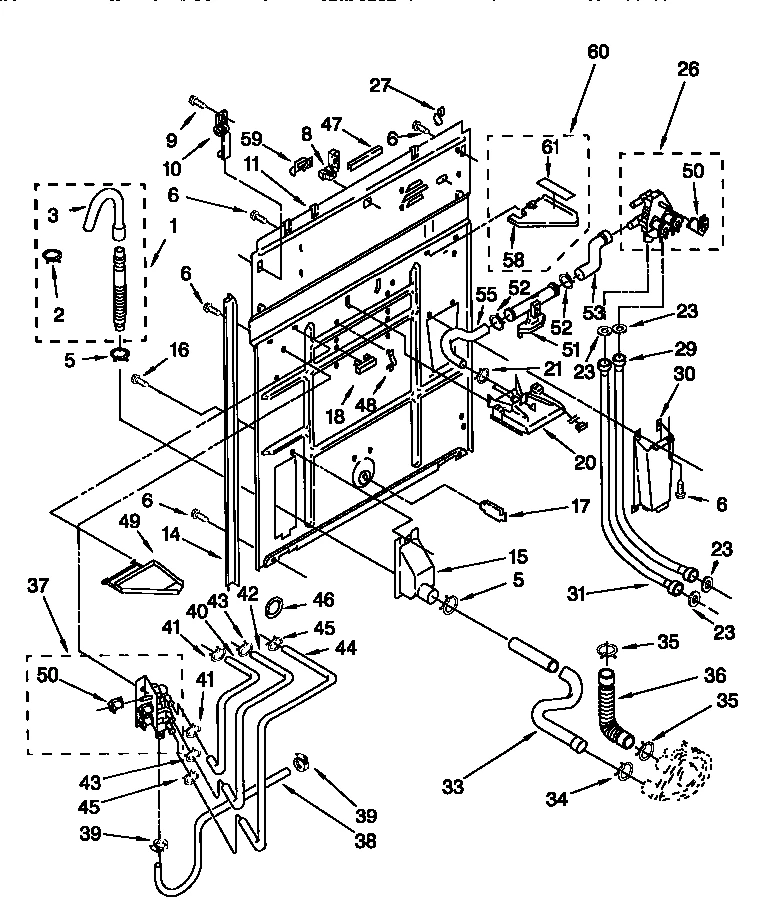

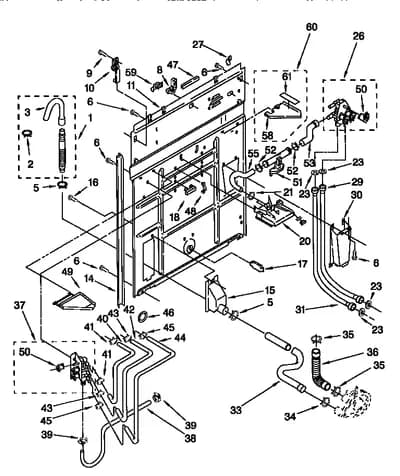

REAR PANEL
Parts in REAR PANEL
47 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 285664replaces 3951609 Drain Hose | $16.76 Part Advantage |
| 1A |  | 285666replaces 661577 Drain Hose | $31.25 Parts Dr |
| 1B |  | 285702replaces 3357090 Drain Hose | $35.09 RepairClinic |
| 2 |  | WP3357331replaces 3366913 Clamp | $9.57 ApplianceParts Pro |
| 3 |  | WP3357027replaces 3357027 Washer Drain Hose Nozzle | $29.33 Part Advantage |
| 5 |  | WP356138replaces 356138 Hose Clamp | $3.38 Part Advantage |
| 6 |  | WP3351614replaces 3351614 Washer Screw, #10-24 x 3/8-in | $3.62 Parts Dr |
| 8 |  | 3949468NLA Relief Stirrer | Discontinued |
| 9 |  | WP488729replaces 487909 Screw | $2.41 Part Advantage |
| 10 | | 387402NLA Hinge Panel | Discontinued |
| 11 | – | 3352315 Rear Panel | - |
| 14 |  | WP62747replaces 62747 Pad Panel | - |
| 15 |  | WPW10358149replaces 3361809 Connector | $13.44 Part Advantage |
| 16 | | WP3351614replaces 90864 Screw | $3.62 Parts Dr |
| 17 |  | WP8519200replaces 63290 Support | $12.39 RepairClinic |
| 18 |  | WP389379replaces 389379 Washer Harness Retainer Clip | $5.00 RepairClinic |
| 20 |  | WP3360977replaces 387606 Break | $22.28 Part Advantage |
| 21 |  | WP596669replaces 371503 Clamp | $2.30 Part Advantage |
| 23 |  | WP16123replaces 16123 Washing Machine Washer | $2.30 Part Advantage |
| 26 | – | 64163 Inlet Valve | - |
| 27 |  | 8528351replaces 3347812 Harness Clip | - |
| 29 |  | WP89503replaces 3949351 Fill Hose (Red) | $4.59 Part Advantage |
| 30 | – | 64219 Bracket | - |
| 31 | | WP89503replaces 3949350 Fill Hose (Blue) | $4.59 Part Advantage |
| 33 |  | WP3352515replaces 3359816 Pump Hose | - |
| 34 | | WP596669replaces 370451 Hose Clamp | $2.30 Part Advantage |
| 35 |  | WP616099replaces 371504 Clamp | $8.55 PartSelect |
| 36 |  | 285871replaces 3950340 Pump Hose | $7.56 Amazon |
| 37 | | 64164NLA Washer Inlet Valve | Discontinued |
| 38 | | 64171NLA Dispenser Hose | Discontinued |
| 39 | | WP596669replaces 388000 Hose Clamp | $2.30 Part Advantage |
| 40 | | 64165NLA Dispenser Hose | Discontinued |
| 42 | | 64166NLA Dispenser Hose | Discontinued |
| 43 | | WP596669replaces 371506 Hose Clamp | $2.30 Part Advantage |
| 44 | | 64167NLA Dispenser Hose | Discontinued |
| 46 | – | 387999 O-Ring | - |
| 47 | | Protector | Discontinued |
| 48 | – | 64162 Retainer | - |
| 49 | | 64173NLA Shield Valve | Discontinued |
| 50 | – | 389252 Valve Coil | - |
| 51 | | Washer Water Temperature Sensor | - |
| 53 |  | WP3349365replaces 3349365 Washer Temperature Sensor Hose | $6.57 Part Advantage |
| 55 | | Hose-etc | - |
| 58 |  | 8539874replaces 3348424 Shield Valve | - |
| 59 | | Clip | - |
| 60 | | 3950830NLA Shield-sud | Discontinued |
| 61 | – | 3950829 Extension Shield | - |
