Model
Kenmore 110.28972891
Washer (Kenmore 11028972891)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.28972891Washer (Kenmore 11028972891)
11 diagrams244 parts
Parts Sections (11)
Diagram

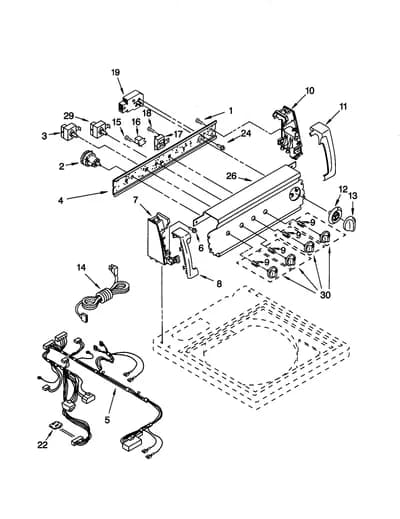

CONTROL PANEL
Parts in CONTROL PANEL
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP90767replaces 90767 Tap Screw | $2.30 Part Advantage |
| 2 |  | W10339326replaces 3366845 Washer Water-Level Switch | $36.80 Part Advantage |
| 3 |  | 661615NLA Washer Water Temperature Switch | Discontinued |
| 4 | | WP3948608replaces 3948608 Bracket | - |
| 5 | – | 3952573 Wire Harness | - |
| 6 |  | WP388326replaces 388326 Washer Screw | $5.00 RepairClinic |
| 7 |  | 279954replaces 3949280 End Cap (White) | $74.34 Parts Dr |
| 7A | | 279953replaces 3949281 End Cap | - |
| 8 |  | 279868replaces 3951013 Trim | $78.95 ApplianceParts Pro |
| 8A | – | 3951014 Trim | - |
| 9 |  | WP688805replaces 688805 Laundry Appliance Control Knob Clip | $3.55 Part Advantage |
| 10 | | 279954replaces 3949274 End Cap (White) | $74.34 Parts Dr |
| 10A | | 279953replaces 3949275 End Cap | - |
| 11 | | 279868replaces 3951009 Washer Trim | $78.95 ApplianceParts Pro |
| 11A | – | 3951010 Trim | - |
| 12 | | 3949428NLA Washer Timer Dial | Discontinued |
| 12A | | Dial | - |
| 13 | | 3948412NLA Washer Control Knob | Discontinued |
| 13A | | 3948414NLA Knob | Discontinued |
| 14 |  | W10820044replaces 3948063 Power Cord | $63.13 Parts Dr |
| 15 |  | WP3388228replaces 3388228 Screw | $2.30 Part Advantage |
| 16 |  | Kirkland Washer Cancel Relay | - |
| 17 | – | 3946851 Fabric Switch | - |
| 18 |  | WP3351614replaces 90864 Screw | $3.62 Parts Dr |
| 19 | | 3951770NLA Washer Timer | Discontinued |
| 22 | | Control | - |
| 24 |  | WP3400064replaces 3400064 Timer Mounting Screw | $7.43 ApplianceParts Pro |
| 26 | – | 3952352 Control Panel | - |
| 26A | – | 3952353 Control Panel | - |
| 29 | | Washer Cycle Selector Switch | - |
| 30 | | 3402572NLA Washer Control Knob | Discontinued |
| 30A | | Washer Control Knob | - |
