Model
Kenmore 110.29012990
Commercial Washer (Kenmore 11029012990)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.29012990Commercial Washer (Kenmore 11029012990)
11 diagrams188 parts
Parts Sections (11)
Diagram

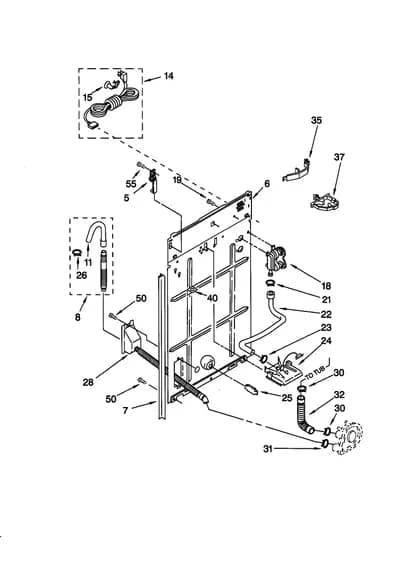

REAR PANEL
Parts in REAR PANEL
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 5 |  | 387402NLA Hinge Panel | Discontinued |
| 6 | | Rear Panel | - |
| 7 |  | WP62747replaces 62747 Pad Panel | - |
| 8 |  | 285664replaces 3951609 Drain Hose | $16.76 Part Advantage |
| 8A |  | 285666replaces 661577 Drain Hose | $31.25 Parts Dr |
| 8B |  | 285702replaces 3357090 Drain Hose | $35.09 RepairClinic |
| 11 |  | WP3357027replaces 3357027 Washer Drain Hose Nozzle | $29.33 Part Advantage |

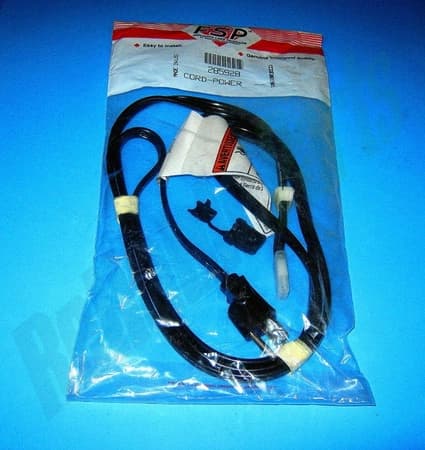

| 14 |  | 285928replaces 3359548 Power Cord | $53.98 Part Advantage |
| 15 | | 3949468NLA Relief Stirrer | Discontinued |
| 18 |  | 285805replaces 3952164 Washer Inlet Valve | $16.69 Part Advantage |
| 19 |  | WP3390631replaces 62863 Screw | $2.30 Part Advantage |
| 21 |  | WP596669replaces 370451 Hose Clamp | $2.30 Part Advantage |
| 22 |  | WP3357328replaces 3357328 Washer Water Fill Nozzle Hose | $7.24 Part Advantage |
| 23 | | WP596669replaces 371503 Clamp | $2.30 Part Advantage |
| 24 |  | WP3347034replaces 3347034 Break | $29.21 Part Advantage |
| 25 |  | WP8519200replaces 63290 Support | $12.39 RepairClinic |
| 26 |  | WPW10358149replaces 3361809 Connector | $13.44 Part Advantage |
| 28 | | WPW10358149replaces 3361805 Drain Hose | $13.44 Part Advantage |
| 30 |  | WP616099replaces 3363366 Hose Clamp | $8.55 PartSelect |
| 31 | – | 6600628 Hose Clamp | - |
| 32 |  | 285871replaces 3950340 Pump Hose | $7.56 Amazon |
| 35 | | Washer Wire Harness Retainer | - |
| 37 | – | 3352944 Harness Clip | - |
| 40 | | Bracket | - |
| 55 |  | WP308685replaces 3357011 Screw | $2.30 Part Advantage |
