Model
Kenmore 110.29032990
Commercial Washer (Kenmore 11029032990)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.29032990Commercial Washer (Kenmore 11029032990)
11 diagrams186 parts
Parts Sections (11)
Diagram

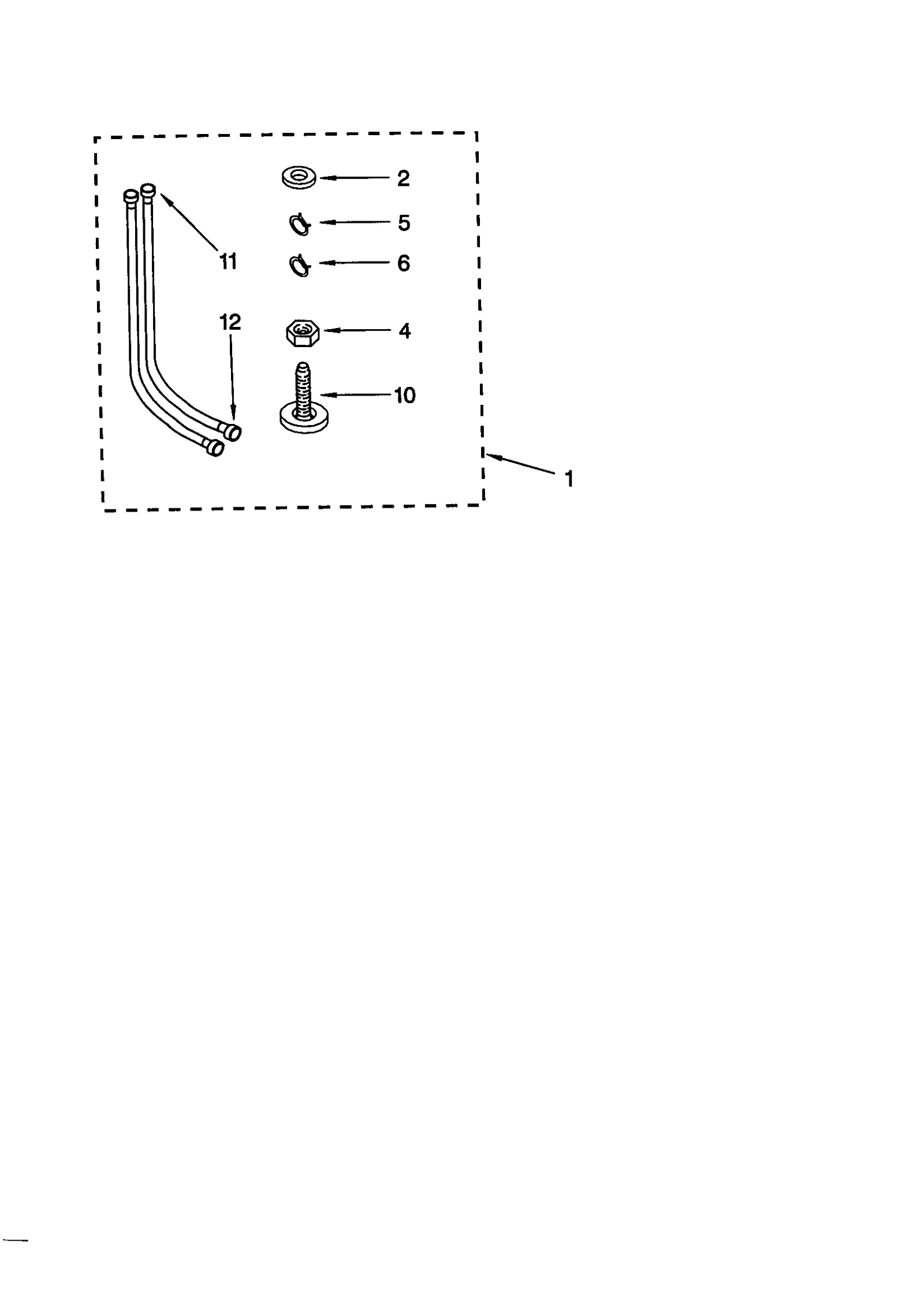

MISCELLANEOUS
Parts in MISCELLANEOUS
8 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 285654replaces 3976253 Replacement Part | - |
| 2 |  | WP16123replaces 16123 Washing Machine Washer | $2.30 Part Advantage |
| 4 |  | WP3359452replaces 3359452 Washer Leveling Leg Locking Nut | $1.74 Part Advantage |
| 5 |  | WP356138replaces 3366912 Clamp | $3.38 Part Advantage |
| 6 |  | WP3357331replaces 3366913 Clamp | $9.57 ApplianceParts Pro |
| 10 |  | WPW10001130replaces 3359453 Leveling Foot | $2.22 Part Advantage |
| 11 |  | WP89503replaces 3949368 Fill Hose | $4.59 Part Advantage |
| 12 | | WP89503replaces 3949369 Fill Hose | $4.59 Part Advantage |
