Model
Kenmore 110.29072990
Commercial Washer (Kenmore 11029072990)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.29072990Commercial Washer (Kenmore 11029072990)
11 diagrams178 parts
Parts Sections (11)
Diagram

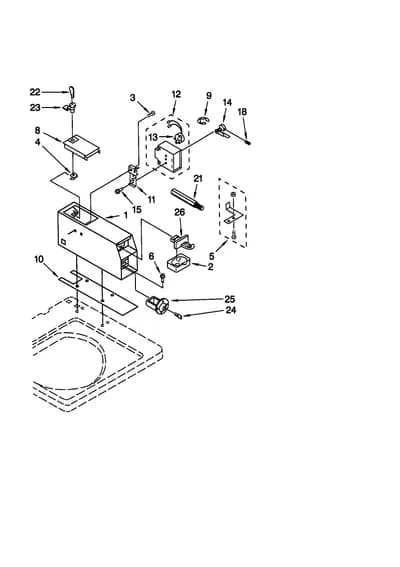

METER CASE
Parts in METER CASE
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 285623replaces 3348006 Case | - |
| 2 |  | WP385421replaces 385421 Laundry Appliance Coin Funnel | $28.34 Part Advantage |
| 3 |  | Screw, #10-32 x 3/1-in | - |
| 4 |  | WP90406replaces 90406 Speed Clip | $9.62 PartSelect |
| 5 | – | 3976291 Extension | - |
| 6 |  | W11715721replaces 3349065 Washer Bolt | $7.47 PartSelect |
| 8 |  | W11283272replaces 3351136 Commercial Laundry Meter Case Access Door | $67.15 Part Advantage |
| 9 |  | WP354987replaces 354987 Ring | $4.52 Part Advantage |
| 10 | | Cushion | - |
| 11 | | Timer Bracket | - |
| 12 |  | WP3955668replaces 3348296 Tmr 60 Q1 | $184.65 Part Advantage |
| 13 | | 388290NLA Timer Motor | Discontinued |
| 14 | | Clutch | Discontinued |
| 15 |  | WP356418replaces 96435 Screw | $2.30 Part Advantage |
| 18 | | Screw | - |
| 21 |  | WP8576635replaces 3400216 Bolt | $27.21 Part Advantage |
| 22 |  | 4396669replaces 358288 Key | $6.60 Part Advantage |
| 23 |  | WP3349091replaces 3349091 Commercial Laundry Meter Case Lock and Key Assembly | $77.23 ApplianceParts Pro |
| 24 | – | N/P (338471) (ALT.) | - |
