Model
Kenmore 110.72408160
Electric Washer (Kenmore 11072408160)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.72408160Electric Washer (Kenmore 11072408160)
10 diagrams296 parts
Parts Sections (10)
Diagram

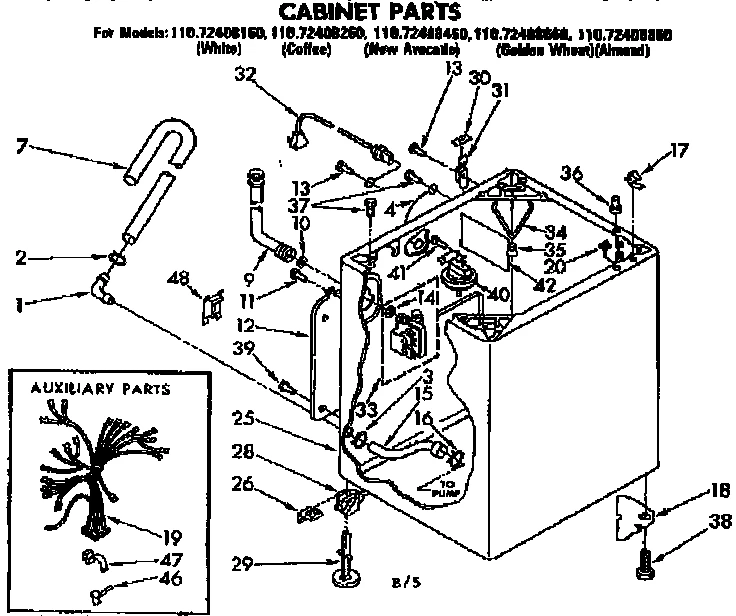

CABINET PARTS
Parts in CABINET PARTS
43 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP95440replaces 95440 Washer Drain Hose Connector | $5.97 Parts Dr |
| 2 |  | WP356138replaces 356138 Hose Clamp | $3.38 Part Advantage |
| 3 |  | WP285655replaces 370445 Clamp | $3.38 Part Advantage |
| 4 | – | 364089 Ground Wire | - |
| 7 |  | WP96743replaces 96743 Washer Drain Hose | $24.33 Part Advantage |
| 9 |  | WP89503replaces 660028 Hose | $4.59 Part Advantage |
| 10 |  | WP16123replaces 16123 Washing Machine Washer | $2.30 Part Advantage |
| 11 |  | WP3351614replaces 90864 Screw | $3.62 Parts Dr |
| 12 | – | 85279 Panel | - |
| 13 |  | WP681414replaces 343641 SCREW | $2.30 Part Advantage |
| 14 |  | WP96160replaces 96160 Filter Screen | $4.36 Part Advantage |
| 15 |  | 21114NLA Pump Hose | Discontinued |
| 16 | | WP285655replaces 272858 Hose Clamp | $3.38 Part Advantage |
| 17 |  | WP18776replaces 18776 Dryer Top Panel Clip | $4.59 Part Advantage |
| 18 | – | 356459 Gusset | - |
| 19 | – | 358342 Harness | - |
| 20 |  | WP90406replaces 90406 Speed Clip | $9.62 PartSelect |
| 25 | – | N/P (338471) (ALT.) | - |
| 25A | – | 384793 Cabinet (White) | - |
| 25B | – | 384794 Cabinet (Almond) | - |
| 25C | – | 384795 Cabinet | - |
| 25D | – | 384796 Cabinet | - |
| 25E | – | 384797 Cabinet | - |
| 26 |  | WP359364replaces 359364 Clip, Leveling Mechanism | $3.55 Part Advantage |
| 28 | | 359059NLA Link | Discontinued |
| 29 |  | WP358594replaces 358594 Washer Leveling Leg | $6.64 Part Advantage |
| 30 | | Washer Lid Hinge Bumper | - |
| 31 | | 92657NLA Hinge | Discontinued |
| 31A | – | 18775 Hinge | - |
| 32 | – | 354837 Cord | - |
| 33 |  | Washer Water Inlet Valve Assembly | $41.23 Parts Dr |
| 34 |  | 357977NLA Spring | Discontinued |
| 35 |  | 358336NLA Washer Snubber Pad | Discontinued |
| 36 | | 98669NLA Dryer Cabinet Panel Guide Pin | Discontinued |
| 37 | | WP681414replaces 359262 Screw | $2.30 Part Advantage |
| 38 |  | WP367594replaces 367594 Washer Leveling Leg, Front | $9.96 Part Advantage |
| 39 | | WP681414replaces 687128 Screw | $2.30 Part Advantage |
| 40 | – | 359361 Switch | - |
| 41 |  | WP90767replaces 90767 Tap Screw | $2.30 Part Advantage |
| 42 | – | 353885 Barrier | - |
| 46 | | WP98997replaces 98997 Harness Clip | - |
| 47 |  | WP90016replaces 90016 Clip | $7.43 RepairClinic |
| 48 | – | 354179 Plug | - |
