Model
Kenmore 110.72433630
Electric Washer (Kenmore 11072433630)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.72433630Electric Washer (Kenmore 11072433630)
10 diagrams286 parts
Parts Sections (10)
Diagram

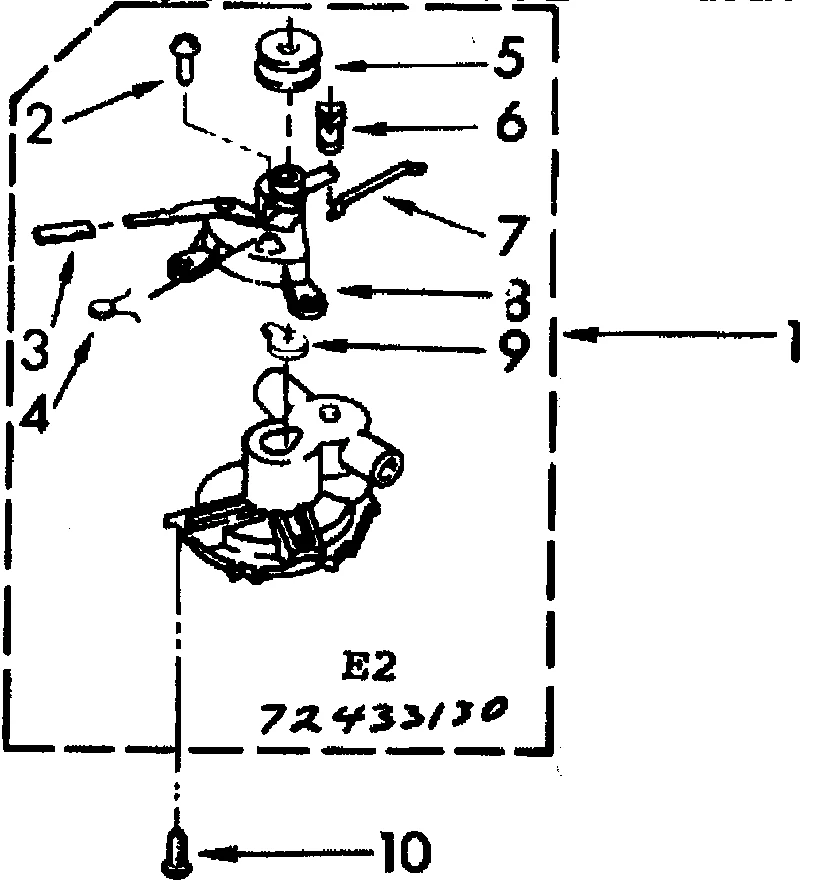

PUMP PARTS
Parts in PUMP PARTS
10 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 350365replaces 358036 Pump | $58.59 Parts Dr |
| 2 |  | WP273556replaces 273556 Washer Screw | $2.30 Part Advantage |
| 3 | – | 96175 Sleeve | - |
| 4 | – | 96266 Spring | - |
| 5 | – | 16113 Pump Pulley | - |
| 6 | – | 355538 Lever | - |
| 7 | – | 96264 Rod | - |
| 8 | – | 87290 Bearng Blck | - |
| 9 | – | 96265 Wick Oil | - |
| 10 |  | 386011replaces 96867 Screw | $32.95 ApplianceParts Pro |
