Model
Kenmore 110.72865610
Washer (Kenmore 11072865610)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.72865610Washer (Kenmore 11072865610)
11 diagrams322 parts
Parts Sections (11)
Diagram

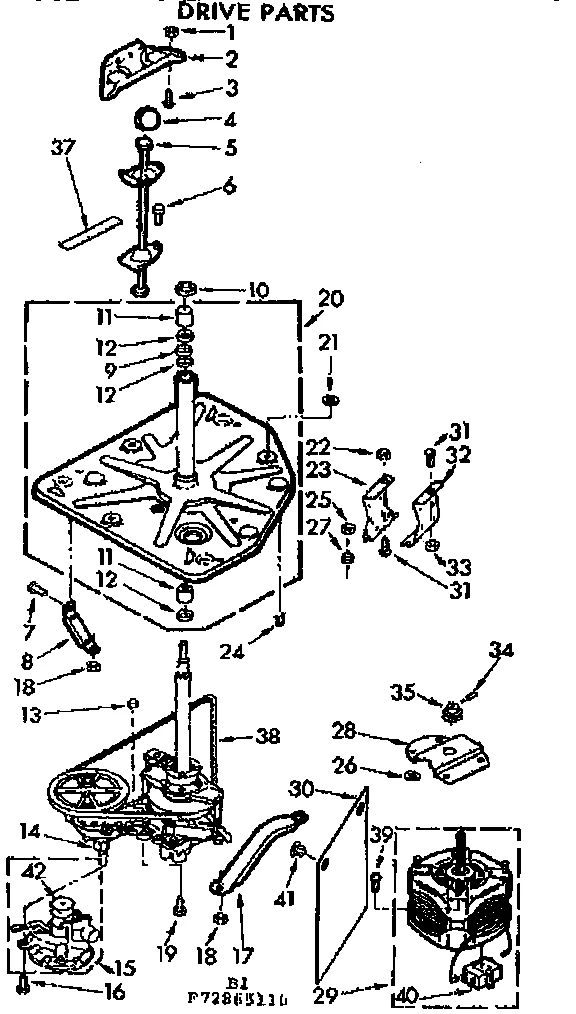

DRIVE PARTS
Parts in DRIVE PARTS
52 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Nut | - |
| 2 | – | N/P (338471) (ALT.) | - |
| 2A | – | 94114 Basic Cover | - |
| 2B | – | 352143 Cover | - |
| 2C | – | 353230 Cover | - |
| 3A | – | 126358 Bolt | - |
| 3B | – | 126211 Carriage Bolt | - |
| 3C | – | 353770 Bolt | - |
| 4 | | 91073NLA Ball | Discontinued |
| 5 | | 82584NLA NLA Parts | Discontinued |
| 6 | – | 98048 Screw | - |
| 7 |  | WP3400516replaces 98062 Screw | $2.30 Part Advantage |
| 8 | – | 353301 Brace | - |
| 9 | – | 358804 Spacer | - |
| 10 |  | WP8577376replaces 356934 Seal, Center Post | $3.55 Part Advantage |
| 11A |  | WP8546455replaces 54207 Bearing | $8.66 Part Advantage |
| 11B | – | 354195 Bearing | - |
| 12 |  | W11095997replaces 357409 Seal | $9.85 Part Advantage |
| 13 | – | 92429 Spacer | - |
| 14 | – | 358365 Gear Case | - |
| 15A | – | 362175 Pump (Black) | - |
| 15B | – | 357729 Pump | - |
| 16 | | 386011replaces 96867 Screw | $32.95 ApplianceParts Pro |
| 17A | – | 351500 Brace | - |
| 17B | | Brace | - |
| 18 | – | 96101 Nut | - |
| 19 | – | 90877 Hex Screw | - |
| 20 | – | 358949 Base Plate | - |
| 21 | | 17235NLA Gasket | Discontinued |
| 22 |  | WP358160replaces 96016 Lock Nut | $1.68 RepairClinic |
| 23 | – | 85286 Bracket | - |
| 24 |  | Washer Wire Harness Retainer | $25.76 ApplianceParts Pro |
| 25 | | 98023NLA Nut | Discontinued |
| 26 | – | 92217 Washer | - |
| 27 | | 19138NLA Grommet, Motor Bracket | Discontinued |
| 28 | – | 356217 Shield | - |
| 29A | – | 361316 Motor | - |
| 29B | – | 362190 Motor | - |
| 30 | – | 356214 Shield | - |
| 31 | – | 98537 Bolt | - |
| 32 | – | 93549 Bracket | - |
| 33 | – | 95721 Nut | - |
| 34 |  | Screw | - |
| 35A | – | 357514 Pulley | - |
| 35B | – | 93219 Pully 50 Cy | - |
| 37 | – | 352434 Pad | - |
| 38 |  | WP95405replaces 95405 Washer Drive Belt | $10.45 Part Advantage |
| 39 |  | WP3390631replaces 9420601 Screw | $2.30 Part Advantage |
| 40A | | 362738NLA Motor Switch | Discontinued |
| 40B | – | 362086 Switch | - |
| 41 | – | 356288 Clip | - |
| 42 | – | 16113 Pump Pulley | - |
