Model
Kenmore 110.72940110
Washer (Kenmore 11072940110)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.72940110Washer (Kenmore 11072940110)
10 diagrams274 parts
Parts Sections (10)
Diagram

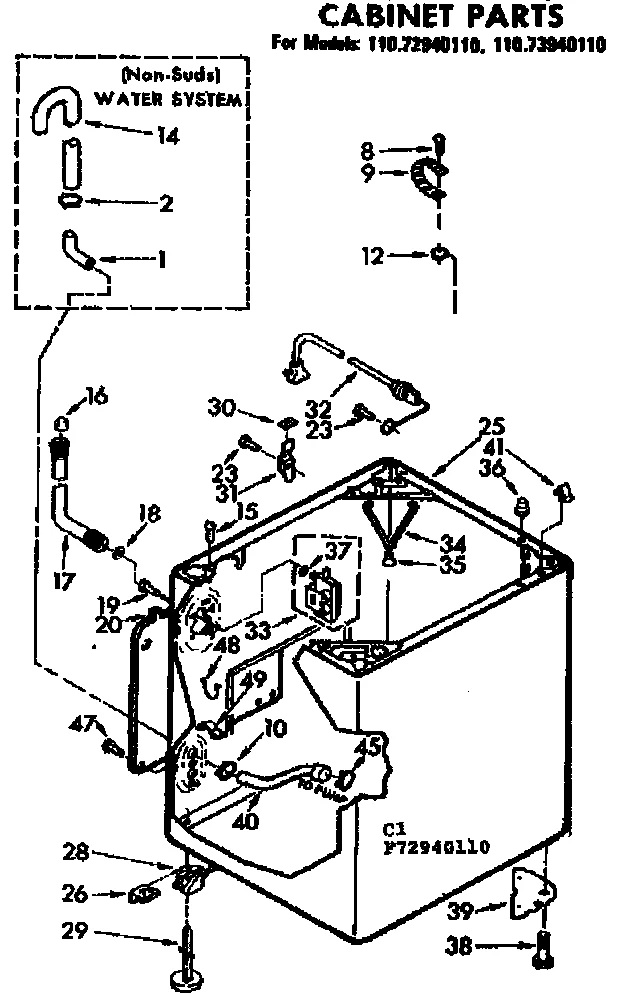

CABINET PARTS
Parts in CABINET PARTS
38 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP95440replaces 95440 Washer Drain Hose Connector | $5.97 Parts Dr |
| 2 |  | WP356138replaces 356138 Hose Clamp | $3.38 Part Advantage |
| 8 | – | 132848 Screw | - |
| 9 | – | 22965 Ground Strap | - |
| 10 |  | WP285655replaces 370445 Clamp | $3.38 Part Advantage |
| 12 | – | 364089 Ground Wire | - |
| 14 |  | WP96743replaces 96743 Washer Drain Hose | $24.33 Part Advantage |
| 15 |  | WP681414replaces 359262 Screw | $2.30 Part Advantage |
| 16 |  | 285452Areplaces 355521 Washer | $2.41 Part Advantage |
| 17 |  | WP89503replaces 81339 Hose Assembly | $4.59 Part Advantage |
| 18 |  | WP16123replaces 16123 Washing Machine Washer | $2.30 Part Advantage |
| 19 |  | WP3351614replaces 90864 Screw | $3.62 Parts Dr |
| 20 | – | N/P (338471) (ALT.) | - |
| 20A | – | 85279 Panel | - |
| 20B | – | 357335 Panel | - |
| 23 | | WP681414replaces 343641 SCREW | $2.30 Part Advantage |
| 25A | – | 379111 Cabinet (White) | - |
| 26 |  | WP359364replaces 359364 Clip, Leveling Mechanism | $3.55 Part Advantage |
| 28 |  | 359059NLA Link | Discontinued |
| 29 |  | WP358594replaces 358594 Washer Leveling Leg | $6.64 Part Advantage |
| 30 | | Washer Lid Hinge Bumper | - |
| 31A | | 92657NLA Hinge | Discontinued |
| 31B | – | 18775 Hinge | - |
| 32A | – | 92667 Power Cord | - |
| 32B | – | 83742 Power Cord | - |
| 33 |  | 358277replaces 358971 Valve | $41.23 Parts Dr |
| 34 |  | 357977NLA Spring | Discontinued |
| 35 |  | 358336NLA Washer Snubber Pad | Discontinued |
| 36 | | 98669NLA Dryer Cabinet Panel Guide Pin | Discontinued |
| 37 |  | WP96160replaces 96160 Filter Screen | $4.36 Part Advantage |
| 38 |  | WP367594replaces 367594 Washer Leveling Leg, Front | $9.96 Part Advantage |
| 39 | – | 356459 Gusset | - |
| 40 | | 21114NLA Pump Hose | Discontinued |
| 41 |  | WP18776replaces 18776 Dryer Top Panel Clip | $4.59 Part Advantage |
| 45 | | WP285655replaces 272858 Hose Clamp | $3.38 Part Advantage |
| 47 | | WP681414replaces 687128 Screw | $2.30 Part Advantage |
| 48 | – | 357469 Clip | - |
| 49 | | WP98997replaces 98997 Harness Clip | - |
