Model
Kenmore 110.72960400
Washer (Kenmore 11072960400)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.72960400Washer (Kenmore 11072960400)
11 diagrams342 parts
Parts Sections (11)
Diagram

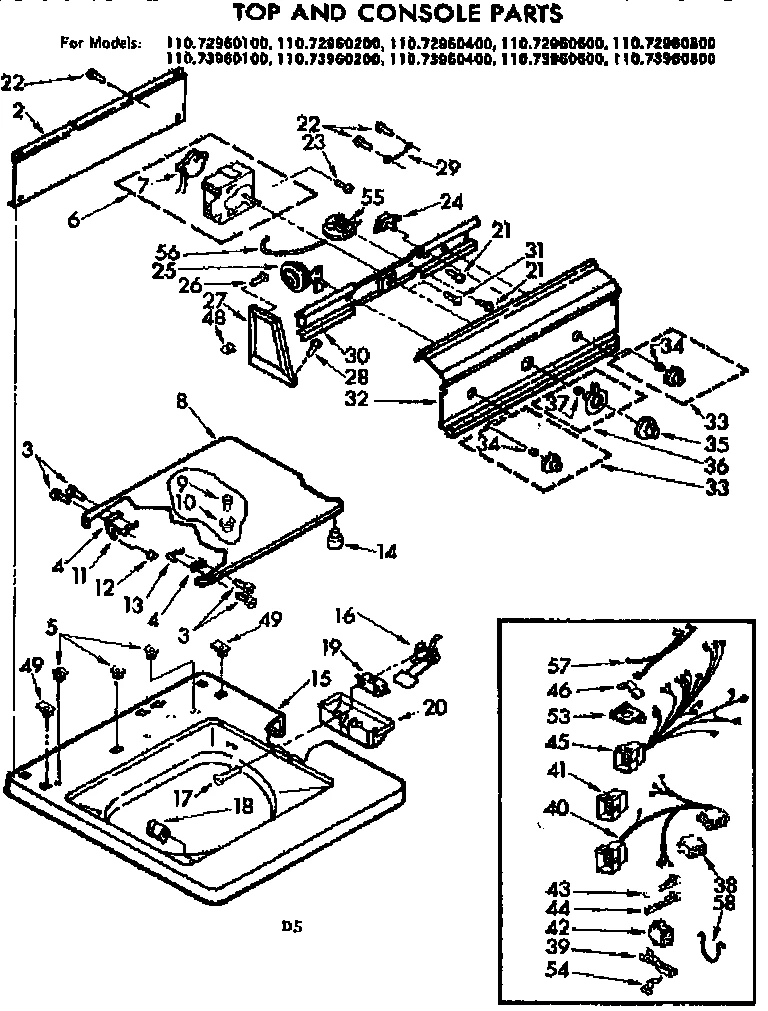

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
73 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 | – | 357421 Panel | - |
| 3 |  | WPW10119828replaces 18724 Screw | $2.41 Part Advantage |
| 4 |  | WP21097replaces 21097 Washer Lid Hinge Bracket | $3.38 Part Advantage |
| 5 |  | Washer Push Nut | $6.41 RepairClinic |
| 6 | – | N/P (338471) (ALT.) | - |
| 6A | – | 378127 Timer | - |
| 6B | – | 378130 Timer | - |
| 6C | – | 378128 Timer | - |
| 6D | – | 378131 Timer | - |
| 6E | – | 378129 Timer | - |
| 6F | – | 378132 Timer | - |
| 7A | | 362681NLA Washer Motor | Discontinued |
| 7B | – | 365941 Motor | - |
| 7C | – | 362682 Motor | - |
| 7D | – | 357557 Motor | - |
| 8A | – | 371378 Lid (White) | - |
| 8B | – | 371385 Lid (Almond) | - |
| 8C | – | 371386 Lid | - |
| 8D | – | 371387 Lid | - |
| 8E | – | 371388 Lid | - |
| 9 | – | 357141 Strike | - |
| 10 |  | WP354255replaces 354255 Bumper | $2.30 Part Advantage |
| 11 |  | WP91770replaces 91770 Washer Lid Hinge | $8.06 Part Advantage |
| 12 | | 19119NLA Bumper, Lid Hinge | Discontinued |
| 13 | | 91367NLA Washer Lid Hinge | Discontinued |
| 14 |  | WP9724509replaces 354241 Bumper | $2.41 Part Advantage |
| 15A | – | 378638 Top (White) | - |
| 15B | – | 378639 Top (Almond) | - |
| 15C | – | 378640 Top | - |
| 15D | – | 378641 Top | - |
| 15E | – | 378642 Top | - |
| 16 | | 370959NLA Actuator | Discontinued |
| 17 | | Washer Lid Switch Screw | - |
| 18 |  | WP21258replaces 21258 Washer Lid Hinge Bearing | $3.18 Part Advantage |
| 19 |  | W10820036replaces 364090 Lid Switch | $9.09 Part Advantage |
| 20 |  | WP359231replaces 354289 Shield | $3.38 Part Advantage |
| 21 |  | WP90767replaces 90767 Tap Screw | $2.30 Part Advantage |
| 22 |  | WP681414replaces 343641 SCREW | $2.30 Part Advantage |
| 23 | – | 356866 Screw | - |
| 24 | – | 358934 Switch | - |
| 25 | – | 359028 Switch | - |
| 26 | – | 355326 Screw | - |
| 27A | – | 372127 Cap (Chestnut) | - |
| 27B | – | 372134 Cap (Chestnut) | - |
| 28 | – | 358225 Screw | - |
| 29 |  | 3184020replaces 54570 Ground Wire | $50.57 ApplianceParts Pro |
| 30 | – | 369054 Bracket | - |
| 31 | – | 339607 Screw, Nibbed | - |
| 32A | – | 378314 Panel | - |
| 32B | – | 378315 Panel | - |
| 33 | – | 369153 Knob | - |
| 34 | – | 90015 Compression Ring | - |
| 35 | | 355519NLA Washer Timer Knob | Discontinued |
| 36 | | Dial | - |
| 37 | – | 354555 Clip | - |
| 38 |  | W10876590replaces 352089 Connector (Black) | $4.52 Part Advantage |
| 39 | | 352088NLA Terminal | Discontinued |
| 40A | – | 359017 Harness | - |
| 40B | – | 359018 Harness | - |
| 41 | – | 94612 Connector | - |
| 42 | – | 94611 Plug | - |
| 43 |  | WP596797replaces 94613 Terminal | $7.95 ApplianceParts Pro |
| 44 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 45 | – | 358179 Harness | - |
| 46 |  | WP90016replaces 90016 Clip | $7.43 RepairClinic |
| 48 | – | 688982 Clip | - |
| 49 |  | WP357213replaces 357213 Nut | $5.95 ApplianceParts Pro |
| 53 | – | 357695 Ring | - |
| 54 | | WP98997replaces 98997 Harness Clip | - |
| 55 | – | 358664 Switch | - |
| 56 |  | WP353244replaces 358719 Hose | $31.19 Part Advantage |
| 57 | – | 358710 Harness | - |
| 58 | – | 357469 Clip | - |
