Model

Kenmore 110.72974810

Name: Kenmore 110.72974810
Brand: Kenmore
Availability: InStock

Washer (Kenmore 11072974810)

Parts Sections (10)

How to find your part

Find part on diagram

Zoom in & tap a highlighted area

Tap "Parts" tab

Switch to the parts list view

See details & prices

Your selected part is highlighted

ModelKenmore

110.72974810Washer (Kenmore 11072974810)

10 diagrams323 parts

Parts Sections (10)

Diagram

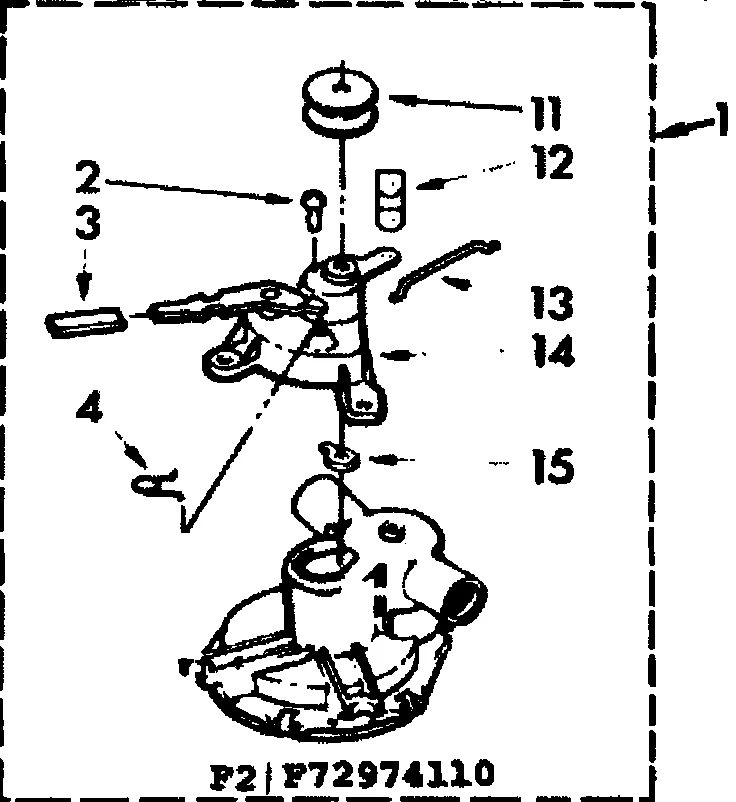

PUMP PARTS

Parts in PUMP PARTS

9 parts

Parts list for PUMP PARTS
Ref	Image	Part / Description	Best Price
1		350365replaces 358036 Pump	$58.59 Parts Dr
2		WP273556replaces 273556 Washer Screw	$2.30 Part Advantage
3	–	96175 Sleeve	-
4	–	96266 Spring	-
11	–	16113 Pump Pulley	-
12	–	355538 Lever	-
13	–	96264 Rod	-
14	–	87290 Bearng Blck	-
15	–	96265 Wick Oil	-
