Model
Kenmore 110.73967620
Washer (Kenmore 11073967620)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.73967620Washer (Kenmore 11073967620)
10 diagrams322 parts
Parts Sections (10)
Diagram

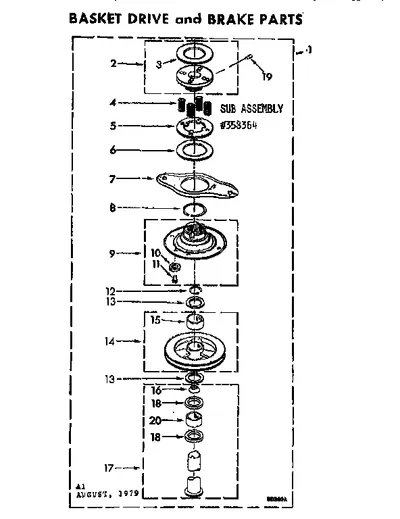

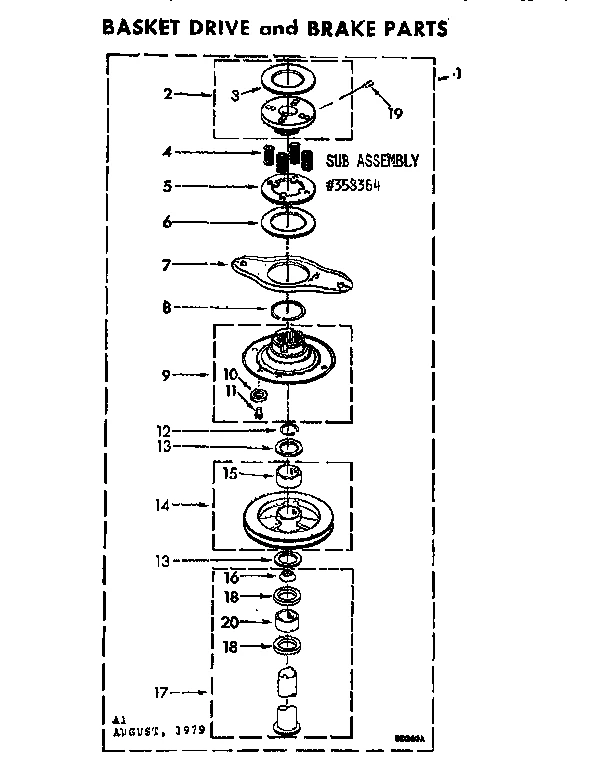

BRAKE AND CLUTCH
Parts in BRAKE AND CLUTCH
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 358364 Drive | - |
| 2 |  | Washer Gear Case Brake Line and Guide | - |
| 3 |  | 354550NLA Lining | Discontinued |
| 4 | – | 381046 Spring | - |
| 5 | – | 97664 Drum | - |
| 6 |  | Lining | - |
| 7 | | 92903NLA Brake Yoke | Discontinued |
| 8 | – | 16049 Ring | - |
| 9 |  | Plate | - |
| 10 | – | 354243 Lining | - |
| 11 | – | 98281 Eyelet | - |
| 12 |  | W11033823replaces 90368 Ring | $6.26 Parts Dr |
| 13 |  | Washer | $3.32 RepairClinic |
| 14 | | 364032NLA Pulley | Discontinued |
| 15 |  | 16033NLA Bearing | Discontinued |
| 16 |  | WP91939replaces 91939 Shaft Seal | $3.55 Part Advantage |
| 17 | – | 357965 Tube | - |
| 18 |  | WP356427replaces 356427 Shaft Seal | $3.55 Part Advantage |
| 19 | | 356057NLA Screw | Discontinued |
| 20 |  | 356937NLA Spacer | Discontinued |
