Model
Kenmore 110.81361720
Electric Washer (Kenmore 11081361720)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.81361720Electric Washer (Kenmore 11081361720)
10 diagrams223 parts
Parts Sections (10)
Diagram

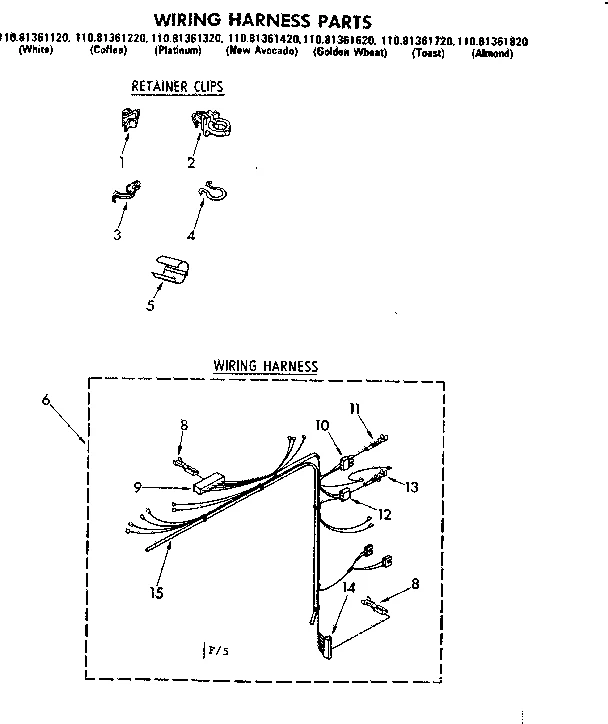

WIRING HARNESS PARTS
Parts in WIRING HARNESS PARTS
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Clip | - |
| 2 | – | 62749 Clip | - |
| 3 | | WP98997replaces 98997 Harness Clip | - |
| 4 | – | 357469 Clip | - |
| 5 | | Protector | - |
| 6 | – | 63509 Harness | - |
| 8 | | 352088NLA Terminal | Discontinued |
| 9 |  | W10876590replaces 352089 Connector (Black) | $4.52 Part Advantage |
| 10 |  | WP62889replaces 62889 Washer Lid Switch Terminal Receptacle | $9.62 PartSelect |
| 11 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 12 |  | Washer Terminal Connector | - |
| 13 |  | WP596797replaces 94613 Terminal | $7.95 ApplianceParts Pro |
| 14 |  | WP62505replaces 62505 Connector (Black) | $15.95 ApplianceParts Pro |
| 15 |  | WP353244replaces 62977 Hose | $31.19 Part Advantage |
