Model
Kenmore 110.81445100
Electric Washer (Kenmore 11081445100)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.81445100Electric Washer (Kenmore 11081445100)
10 diagrams265 parts
Parts Sections (10)
Diagram

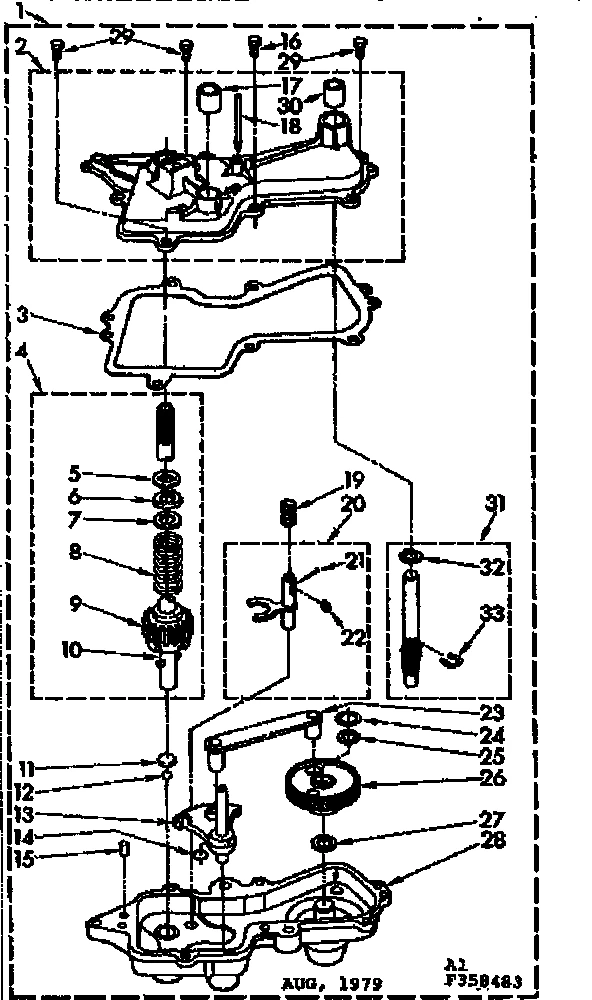

GEARCASE/TRANSMISSION
Parts in GEARCASE/TRANSMISSION
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 358483 Case | - |
| 2 | – | 367552 Cover | - |
| 3 |  | Washer Gear Case Cover Seal | - |
| 4 | – | 362642 Shaft | - |
| 5 |  | 350920replaces 352430 Ring | $4.95 ApplianceParts Pro |
| 6 | – | 92814 Shaft Seal | - |
| 7 | – | 94276 Shield | - |
| 8 | – | 92815 Spring | - |
| 9 |  | Gear | - |
| 10 | – | 362098 Shaft | - |
| 11 |  | 285205replaces 16018 Bearing | - |
| 12 | | 285205replaces 85529 Ball | - |
| 13 | | Gr Sec/shaft | - |
| 14 | – | 52083 Ring | - |
| 15 | – | 5018 Pin | - |
| 16 | – | 356599 Bolt | - |
| 17 | – | 96853 Bearing | - |
| 18 | – | 356445 Support | - |
| 19 |  | 16015NLA Spring | Discontinued |
| 20 | | Fork Gear | - |
| 21 | | Pin | - |
| 22 | | 92119NLA Roller | Discontinued |
| 23 | – | 76577 Cnnctng Rod | - |
| 24 | – | 95082 Ring | - |
| 25 | | Washer | - |
| 26 | | Drive Gear | - |
| 27 | – | 363362 Washer | - |
| 28 | | Gear Case | - |
| 29 | – | 356512 Screw | - |
| 30 |  | Bearing | - |
| 31 |  | Drive Pinion | - |
| 32 |  | 16024NLA Washer | Discontinued |
| 33 | – | 90094 Ring | - |
