Model
Kenmore 110.81475300
Electric Washer (Kenmore 11081475300)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.81475300Electric Washer (Kenmore 11081475300)
10 diagrams263 parts
Parts Sections (10)
Diagram

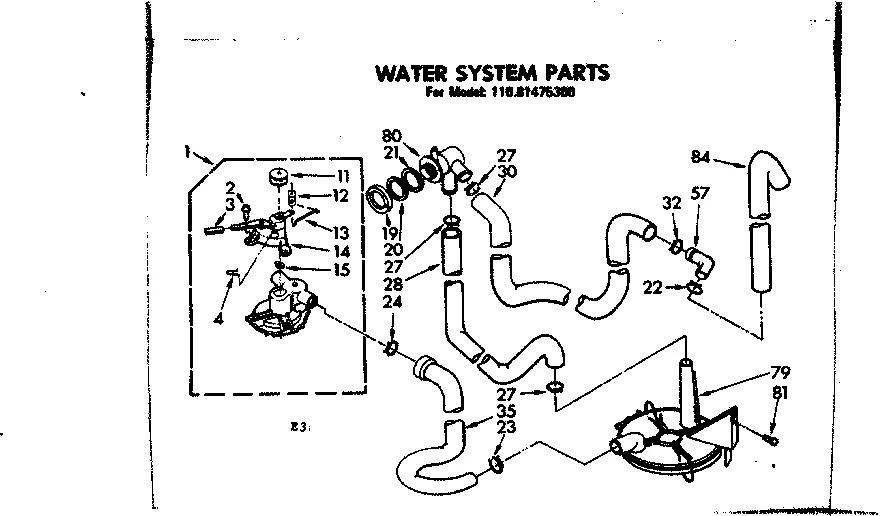

WATER SYSTEM PARTS
Parts in WATER SYSTEM PARTS
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 350365replaces 358036 Pump | $58.59 Parts Dr |
| 2 |  | WP273556replaces 273556 Washer Screw | $2.30 Part Advantage |
| 3 | – | 96175 Sleeve | - |
| 4 | – | 96266 Spring | - |
| 11 |  | 359630NLA Pulley | Discontinued |
| 12 | – | 355538 Lever | - |
| 13 | – | 96264 Rod | - |
| 14 | – | 87290 Bearng Blck | - |
| 15 | – | 96265 Wick Oil | - |
| 19 | | Nut | - |
| 20 | | 92232NLA Washer | Discontinued |
| 21 | | Washer | - |
| 22 |  | WP356138replaces 356138 Hose Clamp | $3.38 Part Advantage |
| 23 | – | 353096 Clamp | - |
| 24 |  | WP616099replaces 353098 Clamp | $8.55 PartSelect |
| 27 | | WP356138replaces 353095 Clamp | $3.38 Part Advantage |
| 28 | – | 359814 Hose | - |
| 30 | – | 96067 Hose | - |
| 32 |  | WP285655replaces 370445 Clamp | $3.38 Part Advantage |
| 35 | | Hose | - |
| 57 |  | WP95440replaces 95440 Washer Drain Hose Connector | $5.97 Parts Dr |
| 79 | | Washer Drain Pump Filter | - |
| 80 | – | 84984 Check Valve | - |
| 81 | – | 98005 Screw-lckwsr | - |
| 84 | | 96865NLA Washer Drain Hose | Discontinued |
