Model
Kenmore 110.81475400
Electric Washer (Kenmore 11081475400)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.81475400Electric Washer (Kenmore 11081475400)
10 diagrams293 parts
Parts Sections (10)
Diagram

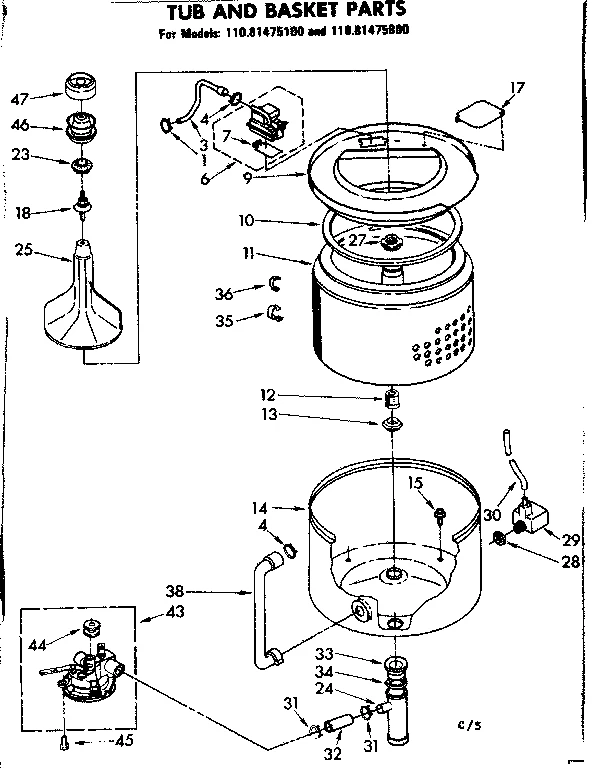

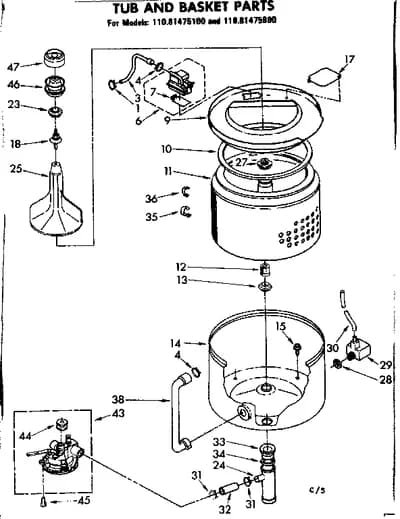

TUB AND BASKET PARTS
Parts in TUB AND BASKET PARTS
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP596669replaces 272846 Hose Clamp | $2.30 Part Advantage |
| 3 | – | 356555 Hose | - |
| 4 | | WP596669replaces 272847 Clamp | $2.30 Part Advantage |
| 6 |  | 366072NLA Inlet | Discontinued |
| 7 | – | 355584 Flapper | - |
| 9 | – | 381970 Ring | - |
| 10 | – | 356585 Seal | - |
| 11 | – | 358837 Basket | - |
| 12 |  | 96384NLA Washer Drive Block | Discontinued |
| 13 |  | W10814296replaces 96690 Gasket | $2.49 Part Advantage |
| 14 | – | 370295 Tub | - |
| 15 | – | 370571 Screw | - |
| 17 |  | Washer Snubber Plate | - |
| 18 | – | 358440 Stud | - |
| 23 | – | 358432 Cap | - |
| 24 | | 84091NLA Manifold | Discontinued |
| 25 | – | 360646 Agitator | - |
| 27 |  | WP21366replaces 21366 Washer Spanner Nut | $3.38 Part Advantage |
| 28 | | 351830NLA Washer Seal | Discontinued |
| 29 | – | 360804 Air Dome | - |
| 30 |  | WP353244replaces 353405 Hose | $31.19 Part Advantage |
| 31 |  | WP285655replaces 370447 Clamp | $3.38 Part Advantage |
| 32 | | 92231NLA Hose | Discontinued |
| 33 |  | 93553NLA Washer Outer Tub Grommet | Discontinued |
| 34 | – | 9421321 Clamp | - |
| 35 | – | 356701 Clip | - |
| 36 | – | 356700 Clip | - |
| 38 | | Hose | - |
| 43 |  | 350365replaces 358036 Pump | $58.59 Parts Dr |
| 44 | | 359630NLA Pulley | Discontinued |
| 45 | | 386011replaces 96867 Screw | $32.95 ApplianceParts Pro |
| 46 | – | 355007 Cup | - |
| 47 | – | 355006 Cover | - |
