Model
Kenmore 110.81675700
System 21 Washer (Kenmore 11081675700)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.81675700System 21 Washer (Kenmore 11081675700)
11 diagrams240 parts
Parts Sections (11)
Diagram

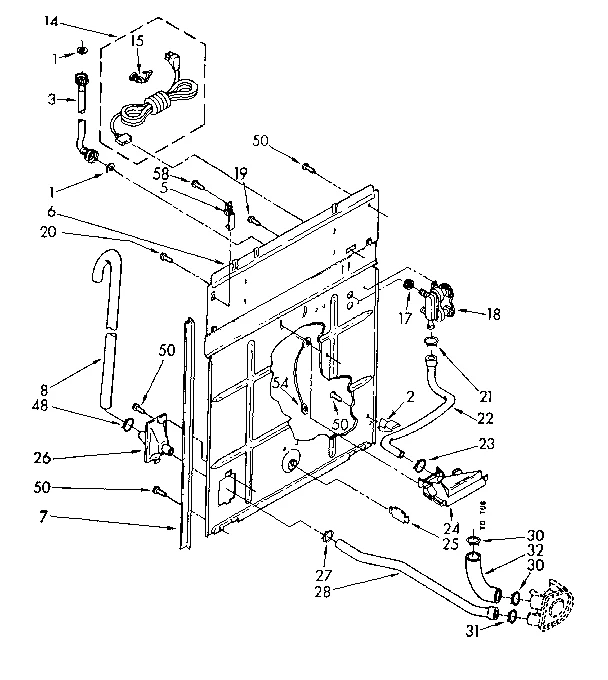

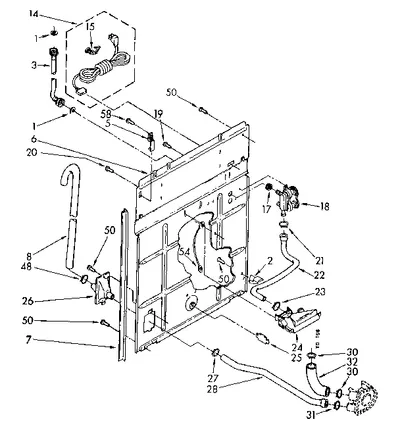

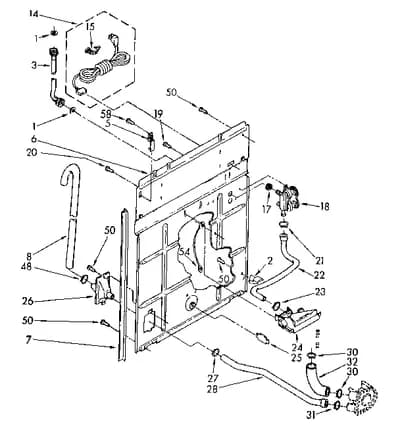

REAR PANEL PARTS
Parts in REAR PANEL PARTS
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP16123replaces 16123 Washing Machine Washer | $2.30 Part Advantage |
| 2 | – | 63162 Pin | - |
| 3 |  | WP89503replaces 660028 Hose | $4.59 Part Advantage |
| 5 |  | 387402NLA Hinge Panel | Discontinued |
| 6 | – | 387959 Rear Panel | - |
| 7 |  | WP62747replaces 62747 Pad Panel | - |
| 8 |  | WP96743replaces 96743 Washer Drain Hose | $24.33 Part Advantage |
| 14 |  | W10820044replaces 62734 Cord | $63.13 Parts Dr |
| 15 | | W11733005replaces 63848 Washer Power Cord Strain Relief | - |
| 17 |  | WP96160replaces 96160 Filter Screen | $4.36 Part Advantage |
| 18 |  | 285805replaces 358992 Valve | $16.69 Part Advantage |
| 19 |  | WP3351614replaces 90864 Screw | $3.62 Parts Dr |
| 20 |  | WP681414replaces 359262 Screw | $2.30 Part Advantage |
| 21 |  | WP596669replaces 272846 Hose Clamp | $2.30 Part Advantage |
| 22 |  | WP3357328replaces 62662 Hose | $7.24 Part Advantage |
| 23 | | WP596669replaces 371503 Clamp | $2.30 Part Advantage |
| 24 |  | WP3347034replaces 63029 Washer Break | $29.21 Part Advantage |
| 25 |  | WP8519200replaces 63290 Support | $12.39 RepairClinic |
| 26 |  | WPW10358149replaces 63206 Connector | $13.44 Part Advantage |
| 27 |  | WP356138replaces 272856 Hose Clamp | $3.38 Part Advantage |
| 28 |  | WP3348552replaces 63172 Hose | $49.50 PartSelect |
| 30 | | WP371502replaces 371502 Hose Clamp | - |
| 31 |  | WP285655replaces 272858 Hose Clamp | $3.38 Part Advantage |
| 32 |  | 285871replaces 62731 Hose | $7.56 Amazon |
| 48 | | WP356138replaces 356138 Hose Clamp | $3.38 Part Advantage |
| 50 |  | WP3390631replaces 62863 Screw | $2.30 Part Advantage |
| 54 | – | 364089 Ground Wire | - |
| 58 |  | WP308685replaces 9416643 Screw | $2.30 Part Advantage |
