Model
Kenmore 110.81862700
Washer (Kenmore 11081862700)

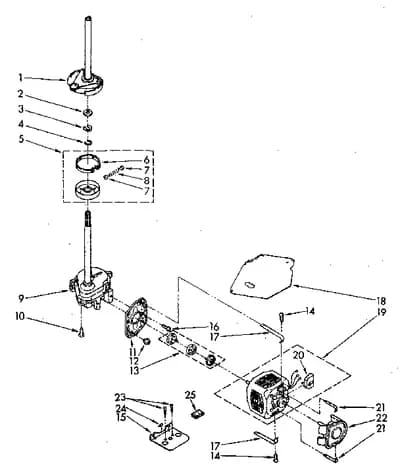

Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.81862700Washer (Kenmore 11081862700)
11 diagrams241 parts
Parts Sections (11)
Diagram

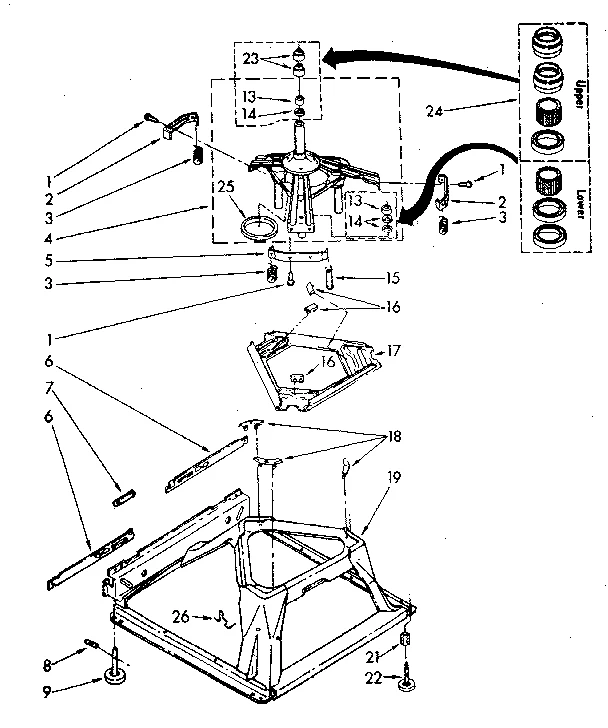

MACHINE BASE
Parts in MACHINE BASE
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP273556replaces 98610 Screw | $2.30 Part Advantage |
| 2 |  | WP64067replaces 64067 Bracket Spring | $3.55 Part Advantage |
| 3 |  | WP63907replaces 63907 Washer Suspension Spring | $3.55 Part Advantage |
| 4 |  | Support | Discontinued |
| 5 |  | Bracket | Discontinued |
| 6 | | Washer Leveling Link Assembly | - |
| 7 |  | 8316845replaces 62597 Spring | $3.55 Part Advantage |
| 8 |  | WP62837replaces 62837 Pin, Knurled | $7.71 Parts Dr |
| 9 |  | 285244replaces 62596 Foot | $10.40 Part Advantage |
| 13 |  | WP8546455replaces 3347047 Bearing-cp | $8.66 Part Advantage |
| 14 |  | W11095997replaces 357409 Seal | $9.85 Part Advantage |
| 15 |  | WPW10250667replaces 388492 Counterweight Spring (Red) | $2.10 Part Advantage |
| 16 |  | 285219replaces 62568 Pad | $10.18 Part Advantage |
| 17 |  | WP3946509replaces 389299 Suspension Plate | $96.95 ApplianceParts Pro |
| 18 |  | 285744replaces 62602 Pad | $5.32 Part Advantage |
| 19 |  | 285459replaces 3349337 Base | - |
| 21 | | WP62739replaces 62739 Jam Nut | $2.84 Parts Dr |
| 22 |  | WPW10001130replaces 389102 Leveling Foot | $2.22 Part Advantage |
| 23 |  | WP8577376replaces 356934 Seal, Center Post | $3.55 Part Advantage |
| 24 |  | Washer Bearing and Seal Kit | $61.27 Part Advantage |
| 25 |  | WP63134replaces 63134 Ring | $5.00 RepairClinic |
| 26 |  | WPW10145155replaces 63806 Suspension Spring Retainer | $2.03 Part Advantage |
