Kenmore 110.81863100
Washer (Kenmore 11081863100)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.81863100Washer (Kenmore 11081863100)
11 diagrams239 parts

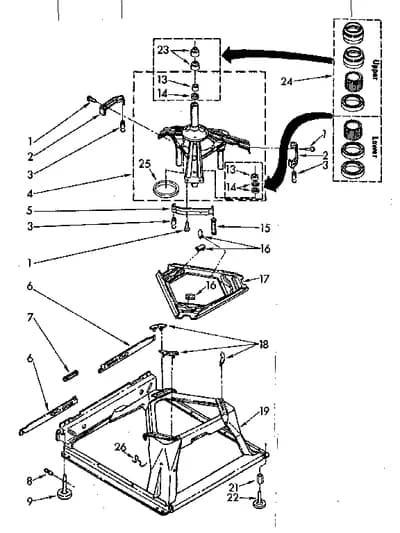

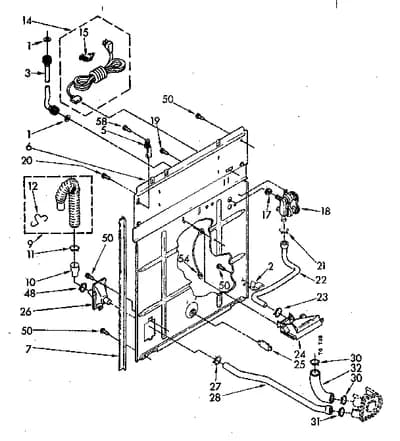

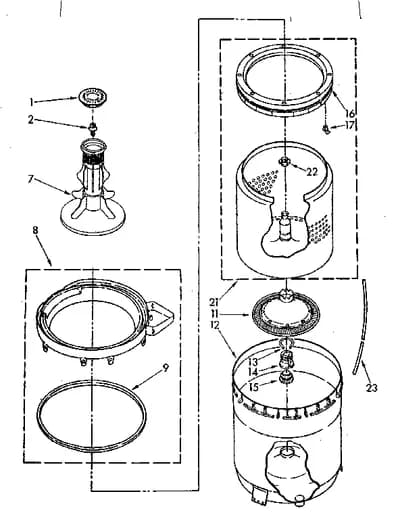

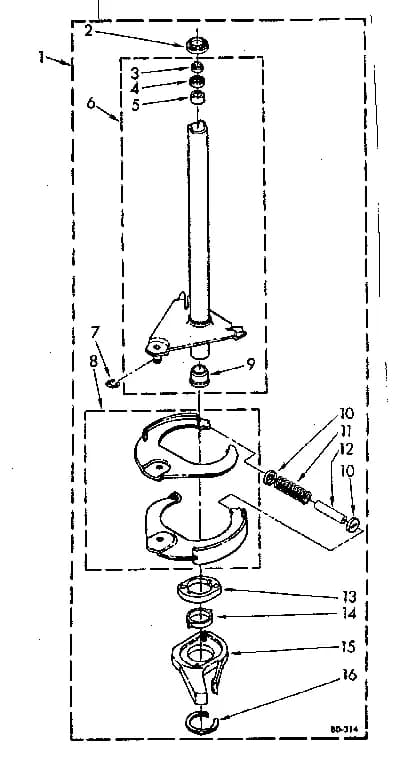

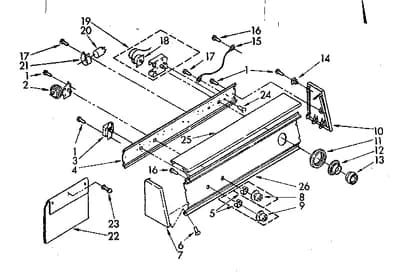

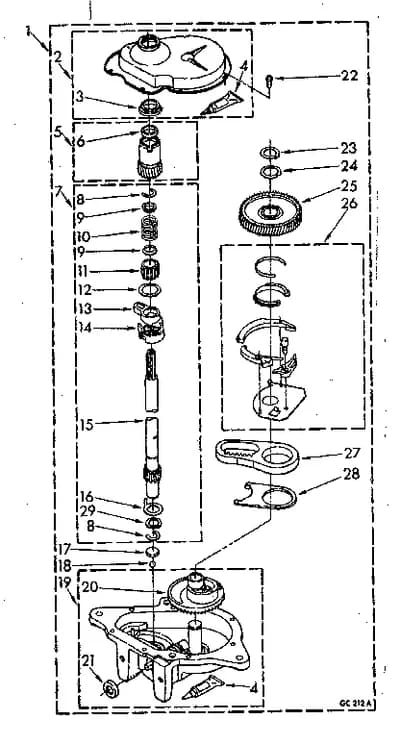

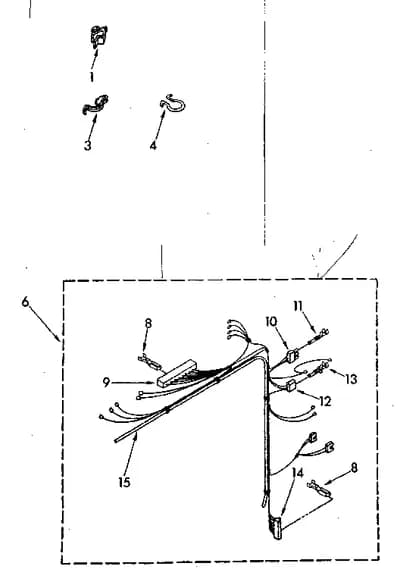

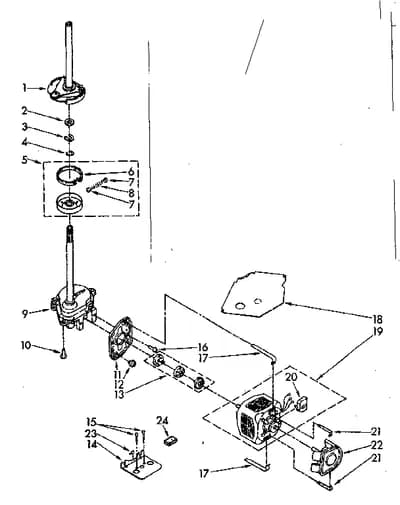

Parts Sections (11)
Diagram

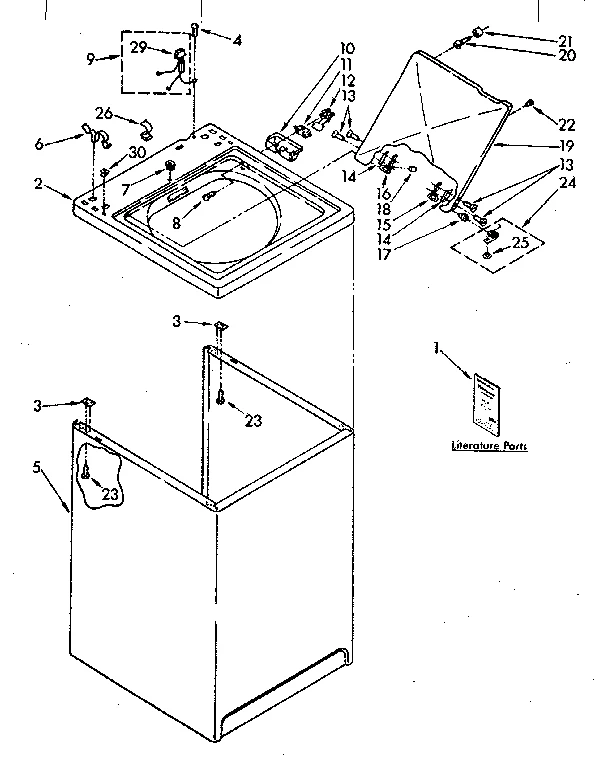

TOP AND CABINET PARTS
Parts in TOP AND CABINET PARTS
46 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | N/P (338471) (ALT.) | - |
| 1A | – | LIT3349103 Laundry Guide | - |
| 1B | – | LIT3349984 Installation Instructions | - |
| 1C | – | LIT3349400 Operating Instructions | - |
| 1D | – | LIT3349383 Technical Sheet | - |
| 1E | – | LIT3347179 Label | - |
| 1F | – | LIT386124 Energy Guide | - |
| 1G | – | LIT3348484 Parts List | - |
| 2B | – | 63108 Top | - |
| 2C | – | 63105 Top (Almond) | - |
| 2D | – | 386649 Top | - |
| 2E | – | 386650 Platinum (Platinum) | - |
| 3 |  | WP62750replaces 62750 Washer Cabinet Spacer | $3.38 Part Advantage |
| 4 |  | WP681414replaces 687128 Screw | $2.30 Part Advantage |
| 5A |  | Cabinet (White) | - |
| 5B | – | 63132 Cabinet | - |
| 5C | – | 63129 Cabinet (Almond) | - |
| 5D | – | 386617 Cabinet | - |
| 5E | – | 386618 Cabinet (Platinum) | - |
| 6 |  | WP62780replaces 62780 Washer Cabinet Clip | $3.55 Part Advantage |
| 7 | | Washer Push Nut | $6.41 RepairClinic |
| 9 | – | 63595 Harness | - |
| 10 |  | WP359231replaces 359231 Washer Lid Switch Shield | $3.38 Part Advantage |
| 11 |  | W10820036replaces 661517 Switch | $9.09 Part Advantage |
| 12 | | 357347NLA Actuator | Discontinued |
| 13 |  | WPW10119828replaces 18724 Screw | $2.41 Part Advantage |
| 14 |  | WP21097replaces 21097 Washer Lid Hinge Bracket | $3.38 Part Advantage |
| 15 |  | WP54584replaces 54584 Hinge | $11.20 Parts Dr |
| 16 |  | WP54583replaces 54583 Washer Lid Hinge, Rear | $8.57 Part Advantage |
| 17 |  | WP21258replaces 21258 Washer Lid Hinge Bearing | $3.18 Part Advantage |
| 18 | | 19119NLA Bumper, Lid Hinge | Discontinued |
| 19A | – | 63070 Lid (White) | - |
| 19B | – | 63074 Lid | - |
| 19C | – | 63071 Lid (Almond) | - |
| 19D | – | 385436 Lid | - |
| 19E | – | 385437 Platinum (Platinum) | - |
| 20 | – | 357141 Strike | - |
| 21 |  | WP354255replaces 354255 Bumper | $2.30 Part Advantage |
| 22 |  | WP9724509replaces 354241 Bumper | $2.41 Part Advantage |
| 23 | | WP681414replaces 384435 Screw | $2.30 Part Advantage |
| 24A | – | 53749 Spring | - |
| 24B | | 53748NLA Spring | Discontinued |
| 25 | | 54690NLA Plug | Discontinued |
| 26 |  | WP90016replaces 90016 Clip | $7.43 RepairClinic |
| 29 | | 62888NLA Plug | Discontinued |
| 30 |  | WP357213replaces 357213 Nut | $5.95 ApplianceParts Pro |
