Model
Kenmore 110.82094820
Washer (Kenmore 11082094820)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.82094820Washer (Kenmore 11082094820)
10 diagrams376 parts
Parts Sections (10)
Diagram

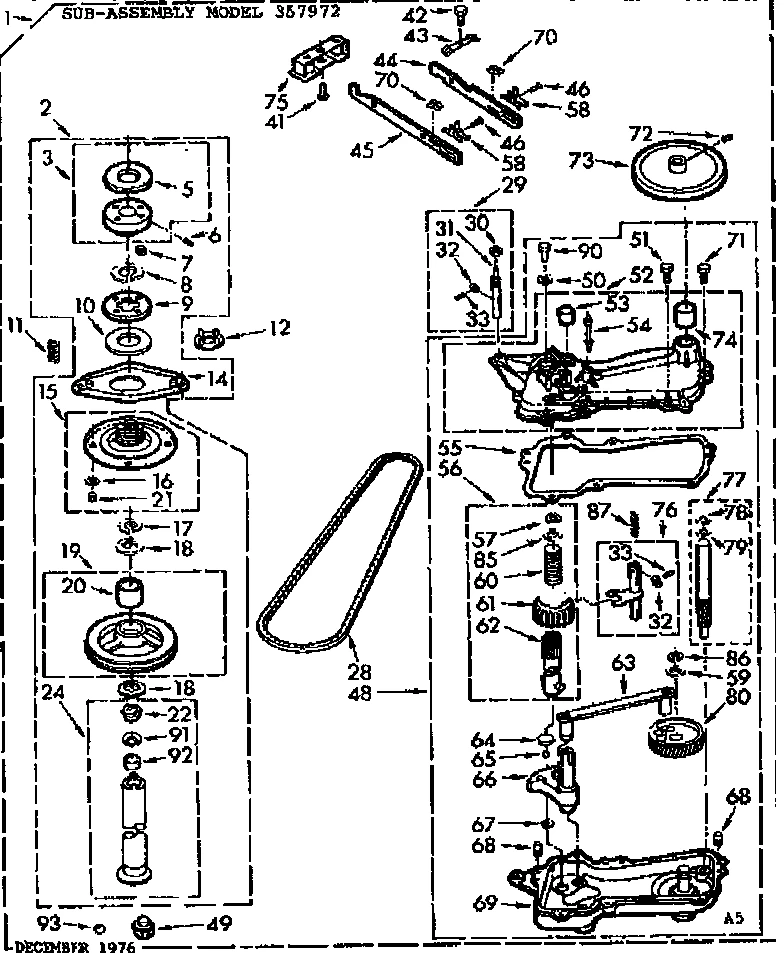

GEARCASE/TRANSMISSION
Parts in GEARCASE/TRANSMISSION
73 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 357972 Case | - |
| 2 | – | 357970 Drive | - |
| 3 |  | Washer Gear Case Brake Line and Guide | - |
| 5 |  | 354550NLA Lining | Discontinued |
| 6 | | 356057NLA Screw | Discontinued |
| 7 |  | Brake Spring | - |
| 8 | – | 16049 Ring | - |
| 9 | – | 97664 Drum | - |
| 10 |  | Lining | - |
| 11 |  | 17261NLA Spring | Discontinued |
| 12 |  | 356444NLA Washer Basket Drive Spring Retainer | Discontinued |
| 14 | | 92903NLA Brake Yoke | Discontinued |
| 15 |  | Plate | - |
| 16 | – | 354243 Lining | - |
| 17 |  | W11033823replaces 90368 Ring | $6.26 Parts Dr |
| 18 |  | Washer | $3.32 RepairClinic |
| 19 | | 364032NLA Pulley | Discontinued |
| 20 |  | 16033NLA Bearing | Discontinued |
| 21 | – | 98281 Eyelet | - |
| 22 |  | WP91939replaces 91939 Shaft Seal | $3.55 Part Advantage |
| 24 | – | 357965 Tube | - |
| 28 |  | WP95405replaces 95405 Washer Drive Belt | $10.45 Part Advantage |
| 29 | – | 76220 Clutch Shaft | - |
| 30 | – | 90715 Nut | - |
| 31 | – | 18930 Shaft | - |
| 32 | | 92119NLA Roller | Discontinued |
| 33 | | Pin | - |
| 41 | | 16135NLA Tap End Scr | Discontinued |
| 42 | – | 98001 Bolt | - |
| 43 |  | Washer Brake Pad Retainer | - |
| 44 |  | 18642NLA Bar Cam | Discontinued |
| 45 | – | 354838 Cam Bar | - |
| 46 | – | 354959 Rivet | - |
| 48 | | 362901NLA Gear Case | Discontinued |
| 49 |  | 350920replaces 358586 Bearing | $4.95 ApplianceParts Pro |
| 50 | | 350920replaces 352430 Ring | $4.95 ApplianceParts Pro |
| 51 | – | 356599 Bolt | - |
| 52 | – | 367552 Cover | - |
| 53 | – | 96853 Bearing | - |
| 54 | – | 356445 Support | - |
| 55 |  | Washer Gear Case Cover Seal | - |
| 56 | – | 362642 Shaft | - |
| 57 | – | 92814 Shaft Seal | - |
| 58 | – | 84866 Plunger | - |
| 59 | | Washer | - |
| 60 | – | 92815 Spring | - |
| 61 | – | 17553 Drive Gear | - |
| 62 | – | 362098 Shaft | - |
| 63 | – | 76577 Cnnctng Rod | - |
| 64 |  | 285205replaces 16018 Bearing | - |
| 65 | | 285205replaces 85529 Ball | - |
| 66 | | Gr Sec/shaft | - |
| 67 | – | 52083 Ring | - |
| 68 | – | 5018 Pin | - |
| 69 | | Gear Case | - |
| 70 |  | 95462NLA Cam Bar Guide | Discontinued |
| 71 | – | 356512 Screw | - |
| 72 |  | Screw | - |
| 73 |  | 360840NLA Washer Transmission Pulley | Discontinued |
| 74 | – | 17250 Bearing | - |
| 75 | – | 365998 Wig Way Ay | - |
| 76 | | Fork Gear | - |
| 77 |  | Drive Pinion | - |
| 78 |  | 16024NLA Washer | Discontinued |
| 79 | – | 90094 Ring | - |
| 80 | | Drive Gear | - |
| 85 | – | 94276 Shield | - |
| 86 | – | 95082 Ring | - |
| 87 |  | 16015NLA Spring | Discontinued |
| 90 | – | 355613 Screw | - |
| 91 |  | WP356427replaces 356427 Shaft Seal | $3.55 Part Advantage |
| 92 |  | 356937NLA Spacer | Discontinued |
| 93 | | 350920replaces 358585 Ball | $4.95 ApplianceParts Pro |
