Model
Kenmore 110.82271820
Electric Washer (Kenmore 11082271820)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.82271820Electric Washer (Kenmore 11082271820)
11 diagrams320 parts
Parts Sections (11)
Diagram

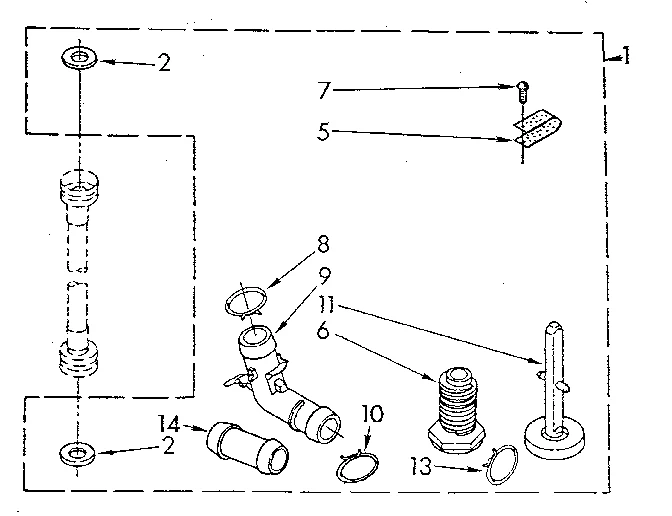

MISCELLANEOUS
Parts in MISCELLANEOUS
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 375976 Replacement Part | - |
| 1A | – | 375975 Replacement Part | - |
| 2 |  | WP16123replaces 16123 Washing Machine Washer | $2.30 Part Advantage |
| 5 | – | 22965 Ground Strap | - |
| 6 |  | WP367594replaces 367594 Washer Leveling Leg, Front | $9.96 Part Advantage |
| 7 | – | 132848 Screw | - |
| 8 |  | WP356138replaces 356138 Hose Clamp | $3.38 Part Advantage |
| 9 |  | WP95440replaces 95440 Washer Drain Hose Connector | $5.97 Parts Dr |
| 10 |  | WP285655replaces 370446 Clamp | $3.38 Part Advantage |
| 11 |  | WP358594replaces 358594 Washer Leveling Leg | $6.64 Part Advantage |
| 13 | | WP285655replaces 370445 Clamp | $3.38 Part Advantage |
| 14 |  | WP16272replaces 16272 Drain Hose Connector | $7.43 ApplianceParts Pro |
