Model
Kenmore 110.82283610
Electric Washer (Kenmore 11082283610)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.82283610Electric Washer (Kenmore 11082283610)
10 diagrams295 parts
Parts Sections (10)
Diagram

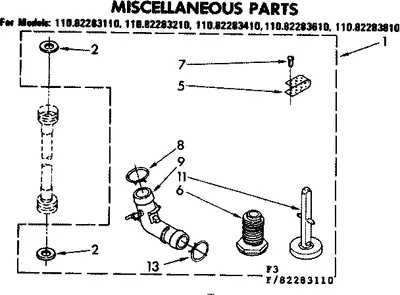

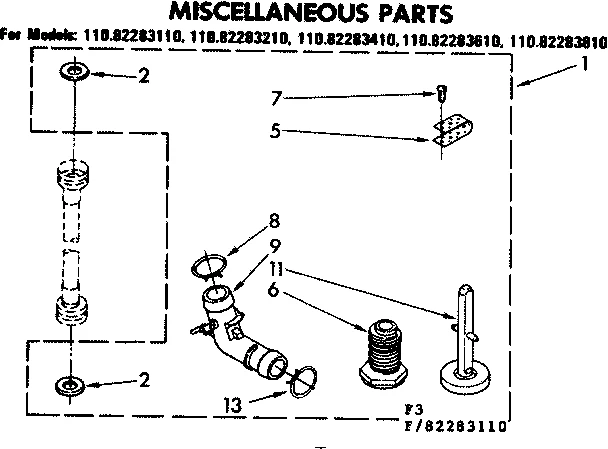

MISCELLANEOUS PARTS
Parts in MISCELLANEOUS PARTS
9 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 375976 Replacement Part | - |
| 2 |  | WP16123replaces 16123 Washing Machine Washer | $2.30 Part Advantage |
| 5 | – | 22965 Ground Strap | - |
| 6 |  | WP367594replaces 367594 Washer Leveling Leg, Front | $9.96 Part Advantage |
| 7 | – | 132848 Screw | - |
| 8 |  | WP356138replaces 356138 Hose Clamp | $3.38 Part Advantage |
| 9 |  | WP95440replaces 95440 Washer Drain Hose Connector | $5.97 Parts Dr |
| 11 |  | WP358594replaces 358594 Washer Leveling Leg | $6.64 Part Advantage |
| 13 |  | WP285655replaces 370445 Clamp | $3.38 Part Advantage |
