Model
Kenmore 110.82370300
Electric Washer (Kenmore 11082370300)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.82370300Electric Washer (Kenmore 11082370300)
11 diagrams338 parts
Parts Sections (11)
Diagram

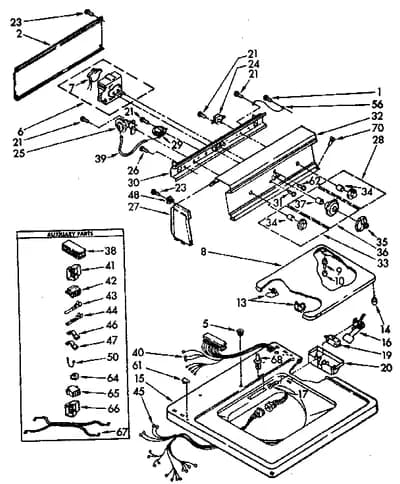

TOP AND CONSOLE
Parts in TOP AND CONSOLE
72 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP681414replaces 343641 SCREW | $2.30 Part Advantage |
| 2 | – | 359374 Panel | - |
| 5 |  | Washer Push Nut | $6.41 RepairClinic |
| 6 | – | 660686 Timer 60hz | - |
| 6A | | 373935NLA Washer Timer | Discontinued |
| 7 | | 362681NLA Washer Motor | Discontinued |
| 7A | – | 365941 Motor | - |
| 8 | – | N/P (338471) (ALT.) | - |
| 8A | – | 385427 Lid (White) | - |
| 8B | – | 385428 Lid (Almond) | - |
| 8C | – | 385429 Coffee | - |
| 8D | – | 385430 NEW AVOCADO | - |
| 8E | – | 385431 Lid | - |
| 8F | – | 385434 Toast | - |
| 8G | – | 385435 Platinum (Platinum) | - |
| 9 | – | 357141 Strike | - |
| 10 |  | WP354255replaces 354255 Bumper | $2.30 Part Advantage |
| 13 | – | 359855 Hinge | - |
| 13A | – | 359854 Hinge | - |
| 14 |  | WP9724509replaces 354241 Bumper | $2.41 Part Advantage |
| 15A | – | 385074 Top (White) | - |
| 15B | – | 385075 Top (Almond) | - |
| 15C | – | 385076 Coffee | - |
| 15D | – | 385077 NEW AVOCADO | - |
| 15E | – | 385078 Top | - |
| 15F | – | 386641 Top | - |
| 15G | – | 386642 Platinum (Platinum) | - |
| 16 | | 370959NLA Actuator | Discontinued |
| 17 | | Washer Lid Switch Screw | - |
| 19 |  | W10820036replaces 660308 Switch | $9.09 Part Advantage |
| 20 |  | WP359231replaces 354289 Shield | $3.38 Part Advantage |
| 21 |  | WP90767replaces 90767 Tap Screw | $2.30 Part Advantage |
| 23 |  | W11693756replaces 359625 Screw | $9.83 Parts Dr |
| 24 | | Switch | - |
| 25 | | Switch | - |
| 26 | – | 355326 Screw | - |
| 27A | – | 372127 Cap (Chestnut) | - |
| 27B | – | 372134 Cap (Chestnut) | - |
| 28 | | Knob | - |
| 29 | | Switch | - |
| 30 | – | 381473 Bracket | - |
| 31 | – | 339607 Screw, Nibbed | - |
| 32 | – | 383809 Panel | - |
| 32A | – | 383810 Panel | - |
| 33 | | Washer Control Knob | - |
| 34 | – | 90015 Compression Ring | - |
| 35 |  | Washer Timer Knob | - |
| 36 | | 359505NLA Pointer | Discontinued |
| 37 | | 384710NLA Clip | Discontinued |
| 38 |  | W10876590replaces 352089 Connector (Black) | $4.52 Part Advantage |
| 38A | – | 352090 Block (White) | - |
| 39 |  | WP353244replaces 358957 Hose | $31.19 Part Advantage |
| 40 | – | 359930 Harness | - |
| 40A | – | 359931 Harness | - |
| 41 | – | 94612 Connector | - |
| 42 | – | 94611 Plug | - |
| 43 |  | WP596797replaces 94613 Terminal | $7.95 ApplianceParts Pro |
| 44 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 45 | – | 358711 Harness | - |
| 46 |  | WP90016replaces 90016 Clip | $7.43 RepairClinic |
| 47 | | WP98997replaces 98997 Harness Clip | - |
| 48 | | WP689559replaces 689559 End Cap Clip | $8.95 ApplianceParts Pro |
| 50 | – | 357469 Clip | - |
| 56 |  | 3184020replaces 54570 Ground Wire | $50.57 ApplianceParts Pro |
| 61 |  | WP357213replaces 357213 Nut | $5.95 ApplianceParts Pro |
| 62 | – | 359504 Screw | - |
| 64 | – | 357695 Ring | - |
| 65 | – | 94696 Plug | - |
| 66 | – | 94697 Cap | - |
| 67 | – | 359587 Harness | - |
| 68 | – | 354239 Rivet | - |
| 70 | – | 358225 Screw | - |
