Kenmore 110.82470400
Electric Washer (Kenmore 11082470400)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.82470400Electric Washer (Kenmore 11082470400)
10 diagrams298 parts
Parts Sections (10)

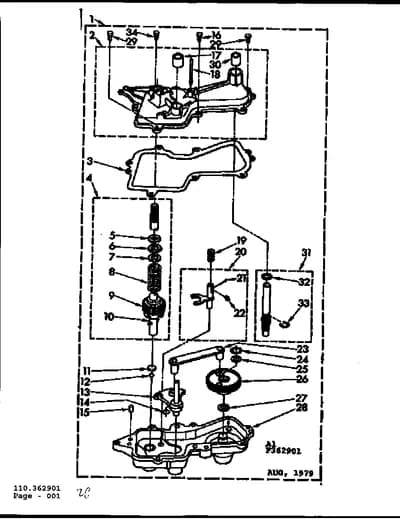

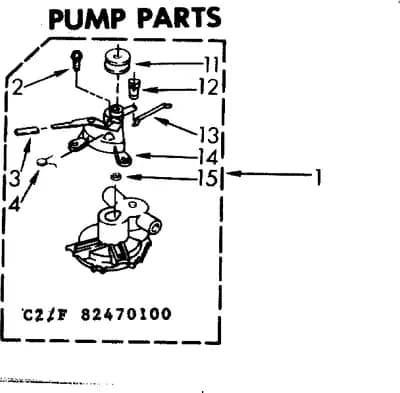

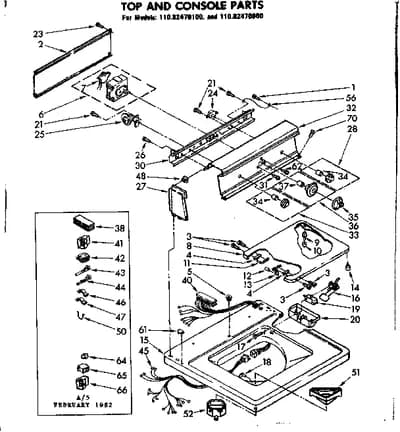

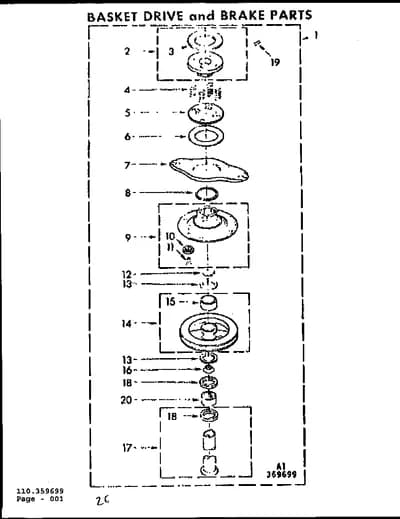

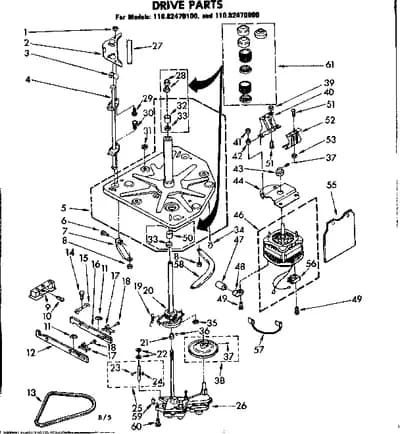

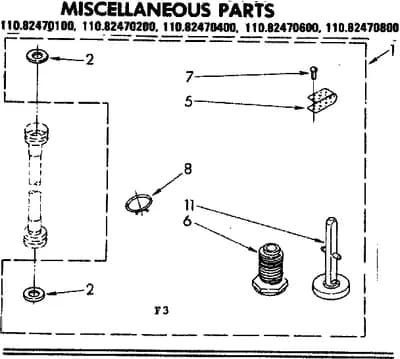

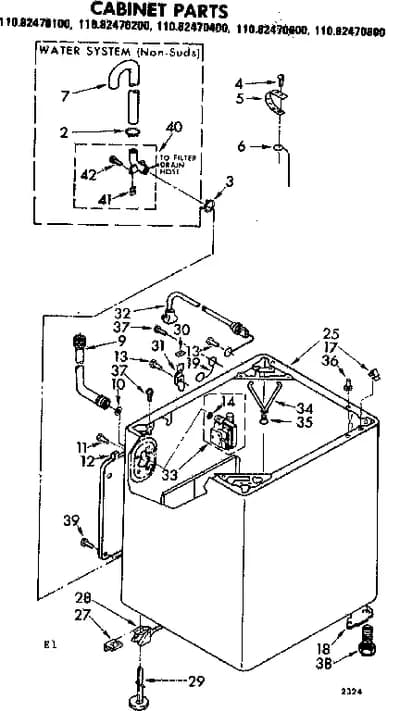

Diagram

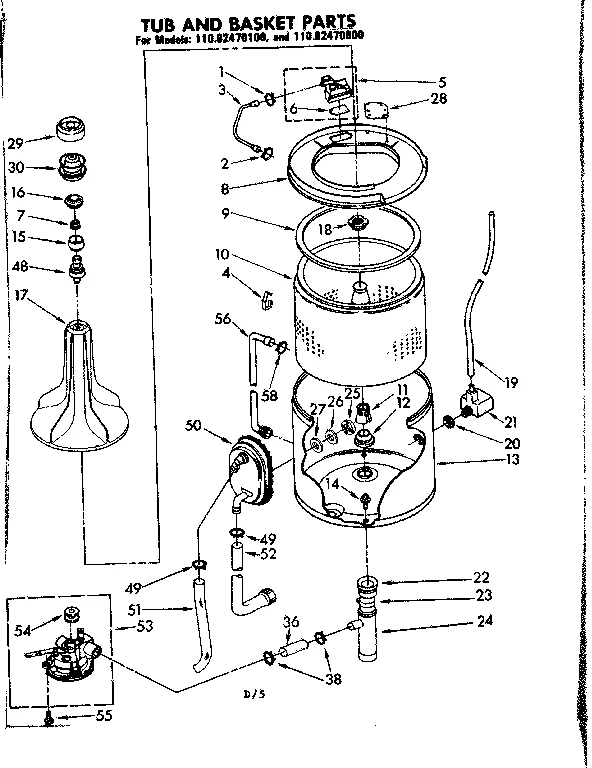

TUB AND BASKET PARTS
Parts in TUB AND BASKET PARTS
42 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP596669replaces 353366 Clamp | $2.30 Part Advantage |
| 2 | | WP596669replaces 353367 Hose Clamp | $2.30 Part Advantage |
| 3 |  | 356349NLA Hose | Discontinued |
| 4 |  | Washer Tub Ring Clip | - |
| 5 |  | 366072NLA Inlet | Discontinued |
| 6 | – | 355584 Flapper | - |
| 7 | – | 357732 Nut | - |
| 8 | – | 381971 Ring | - |
| 9 | | Washer Tub Ring Seal | - |
| 10 | – | 359705 Basket | - |
| 11 |  | WP389140replaces 357782 Block | $7.71 Part Advantage |
| 12 |  | W10814296replaces 96690 Gasket | $2.49 Part Advantage |
| 13 | – | 359668 Tub | - |
| 14 | – | 370571 Screw | - |
| 15 | – | 357943 Extension | - |
| 16 | | Cap | - |
| 17 | – | 359733 Agitator | - |
| 18 |  | WP21366replaces 21366 Washer Spanner Nut | $3.38 Part Advantage |
| 19 |  | WP353244replaces 353243 Hose | $31.19 Part Advantage |
| 20 | | 351830NLA Washer Seal | Discontinued |
| 21 | – | 360804 Air Dome | - |
| 22 |  | 93553NLA Washer Outer Tub Grommet | Discontinued |
| 23 | – | 9421321 Clamp | - |
| 24 | | 84091NLA Manifold | Discontinued |
| 25 | | Nut | - |
| 26 | | 92232NLA Washer | Discontinued |
| 27 | | Washer | - |
| 28 | | Washer Snubber Plate | - |
| 29 | – | 357377 Cover | - |
| 30 | – | 357376 Cup | - |
| 36 | | 92231NLA Hose | Discontinued |
| 38 |  | WP285655replaces 272858 Hose Clamp | $3.38 Part Advantage |
| 48 | – | 369516 Stud | - |
| 49 | – | 353096 Clamp | - |
| 50 | | 368772NLA Washer Lint Filter | Discontinued |
| 51 | | 359798NLA Hose | Discontinued |
| 52 | | Hose | - |
| 53 |  | 350365replaces 358036 Pump | $58.59 Parts Dr |
| 54 | | 359630NLA Pulley | Discontinued |
| 55 | | 386011replaces 96867 Screw | $32.95 ApplianceParts Pro |
| 56 | | 352978NLA Washer Exhaust Hose | Discontinued |
| 58 | | WP596669replaces 287859 Hose Clamp | $2.30 Part Advantage |
