Model
Kenmore 110.83070120
Washer (Kenmore 11083070120)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.83070120Washer (Kenmore 11083070120)
10 diagrams322 parts
Parts Sections (10)
Diagram

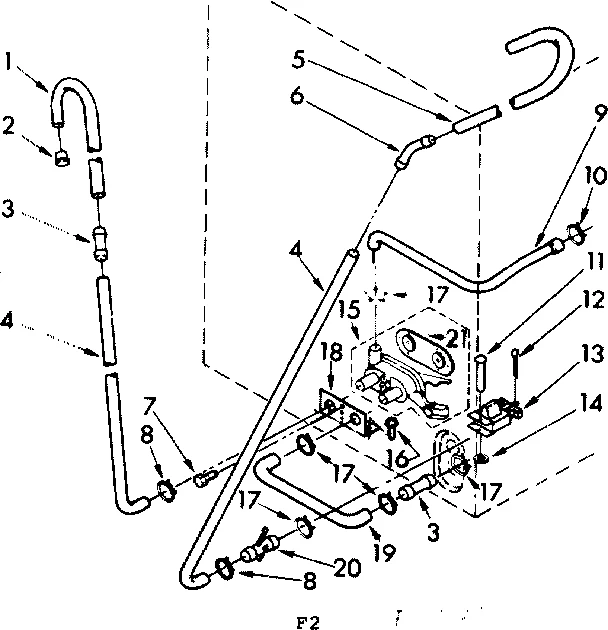

WATER SYSTEM SUDS ONLY
Parts in WATER SYSTEM SUDS ONLY
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 91273 Discharge Hose | - |
| 2 |  | Strainer | - |
| 3 |  | WP16272replaces 16272 Drain Hose Connector | $7.43 ApplianceParts Pro |
| 4 |  | Washer Suds Saver Drain Outlet Hose | - |
| 5 |  | WP96743replaces 96743 Washer Drain Hose | $24.33 Part Advantage |
| 6 |  | WP95440replaces 95440 Washer Drain Hose Connector | $5.97 Parts Dr |
| 7 | | Screw | - |
| 8 |  | WP356138replaces 356138 Hose Clamp | $3.38 Part Advantage |
| 9 | | 357189NLA Hose | Discontinued |
| 10 |  | WP616099replaces 370448 Clamp | $8.55 PartSelect |
| 11 | – | 356990 Rivet | - |
| 12 | – | 90228 Pin | - |
| 13 | – | 86798 Solenoid | - |
| 14 |  | WP90296replaces 90296 Clip | $5.00 RepairClinic |
| 15 | – | 99830 Valve Kit | - |
| 16 |  | WP681414replaces 343641 SCREW | $2.30 Part Advantage |
| 17 |  | WP285655replaces 370446 Clamp | $3.38 Part Advantage |
| 18 | – | 357191 Bracket | - |
| 19 | – | 97784 Hose | - |
| 20 | | Connector | - |
| 21 | | 75183NLA Diaphragm | Discontinued |
