ModelKenmore
110.83071100Washer (Kenmore 11083071100)
10 diagrams336 parts
Parts Sections (10)
Diagram

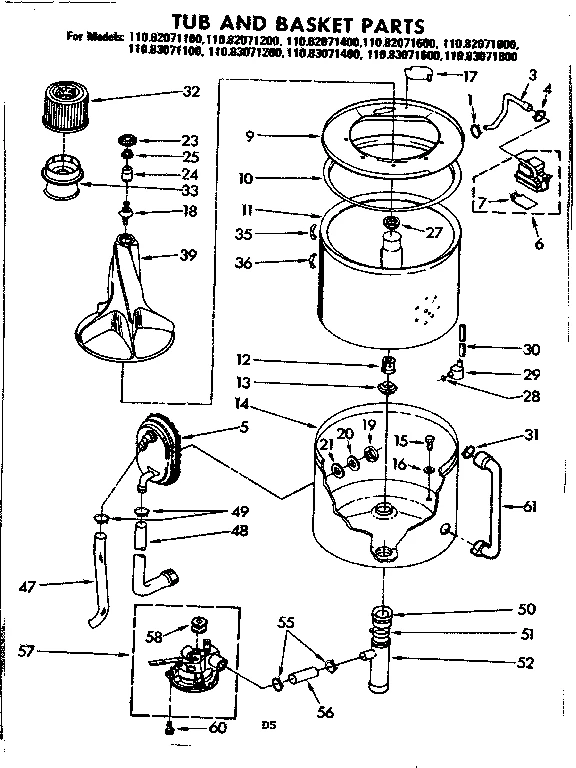

TUB AND BASKET PARTS
Parts in TUB AND BASKET PARTS
47 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP596669replaces 272846 Hose Clamp | $2.30 Part Advantage |
| 3 |  | 356349NLA Hose | Discontinued |
| 4 | | WP596669replaces 272847 Clamp | $2.30 Part Advantage |
| 5 | | 368772NLA Washer Lint Filter | Discontinued |
| 6 |  | 366072NLA Inlet | Discontinued |
| 7 | – | 355584 Flapper | - |
| 9 | – | 356038 Ring | - |
| 10 | | 356584NLA Washer Seal | Discontinued |
| 11 | – | 358402 Basket | - |
| 12 |  | WP389140replaces 357782 Block | $7.71 Part Advantage |
| 13 |  | W10814296replaces 96690 Gasket | $2.49 Part Advantage |
| 14 | – | 361983 Tub | - |
| 15 | – | 356973 Screw | - |
| 16 |  | WP21365replaces 21365 Washer | $7.39 RepairClinic |
| 17 | | Washer Snubber Plate | - |
| 18 | – | 369516 Stud | - |
| 19 | | Nut | - |
| 20 | | 92232NLA Washer | Discontinued |
| 21 | | Washer | - |
| 23 | | Cap | - |
| 24 | – | 357943 Extension | - |
| 25 | – | 357732 Nut | - |
| 27 |  | WP21366replaces 21366 Washer Spanner Nut | $3.38 Part Advantage |
| 28 | | 351830NLA Washer Seal | Discontinued |
| 29 | – | 360804 Air Dome | - |
| 30 | – | N/P (338471) (ALT.) | - |
| 30A |  | WP353244replaces 353243 Hose | $31.19 Part Advantage |
| 30B | | WP353244replaces 353574 Hose | $31.19 Part Advantage |
| 31 | | WP596669replaces 287859 Hose Clamp | $2.30 Part Advantage |
| 32 | – | 357377 Cover | - |
| 33 | – | 357376 Cup | - |
| 35 | – | 356701 Clip | - |
| 36 | – | 356700 Clip | - |
| 39 | – | 369645 Agitator | - |
| 47 | | Hose | - |
| 48A | | Hose | - |
| 48B | | Hose | - |
| 49 | – | 353096 Clamp | - |
| 50 | | 96386NLA Washer Outer Tub Grommet | Discontinued |
| 51 | – | 9421321 Clamp | - |
| 52 | | 84091NLA Manifold | Discontinued |
| 55 |  | WP285655replaces 272858 Hose Clamp | $3.38 Part Advantage |
| 56 | – | 96251 Hose | - |
| 57 |  | 350365replaces 358036 Pump | $58.59 Parts Dr |
| 58 | – | 16113 Pump Pulley | - |
| 60 | | 386011replaces 96867 Screw | $32.95 ApplianceParts Pro |
| 61 | | 352978NLA Washer Exhaust Hose | Discontinued |
