ModelKenmore
110.84090200Washer (Kenmore 11084090200)
10 diagrams273 parts
Parts Sections (10)
Diagram

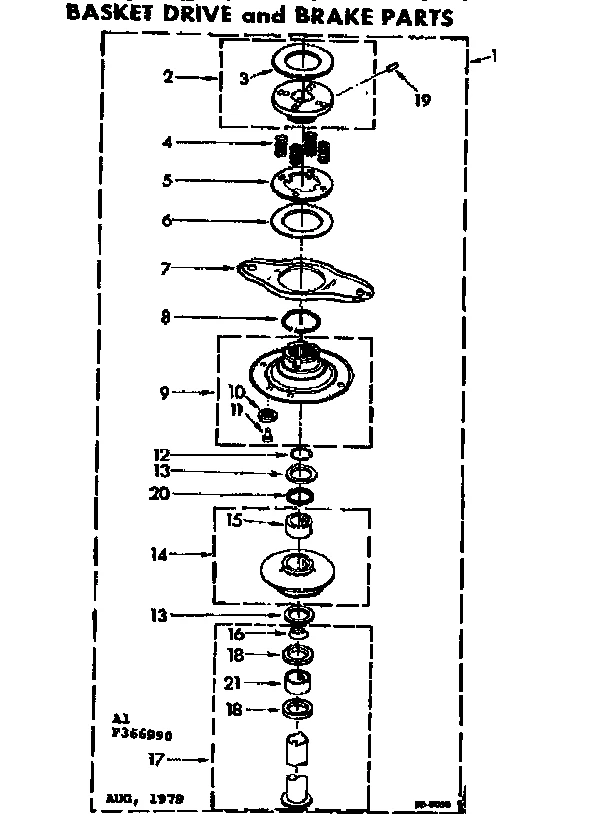

BRAKE AND CLUTCH
Parts in BRAKE AND CLUTCH
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 366990 Basket | - |
| 2 |  | Brake Drum | - |
| 3 |  | 350507replaces 354253 Lining | - |
| 4 |  | Spring | - |
| 5 | – | 97664 Drum | - |
| 6 | – | 356396 Lining | - |
| 7 | | 92903NLA Brake Yoke | Discontinued |
| 8 | – | 16049 Ring | - |
| 9 | | Plate | - |
| 10 | – | 356405 Lining | - |
| 11 | – | 98281 Eyelet | - |
| 12 |  | W11033823replaces 90368 Ring | $6.26 Parts Dr |
| 13 |  | Washer | $3.32 RepairClinic |
| 14 | | 366948NLA Pulley | Discontinued |
| 15 |  | 16033NLA Bearing | Discontinued |
| 16 |  | WP91939replaces 91939 Shaft Seal | $3.55 Part Advantage |
| 17 | – | 366658 Spin Tube | - |
| 18 |  | WP356427replaces 356427 Shaft Seal | $3.55 Part Advantage |
| 19 | – | 358931 Screw | - |
| 20 | – | 354319 Retainer | - |
| 21 |  | 356937NLA Spacer | Discontinued |
