Model
Kenmore 110.84090810
Washer (Kenmore 11084090810)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.84090810Washer (Kenmore 11084090810)
10 diagrams274 parts
Parts Sections (10)
Diagram

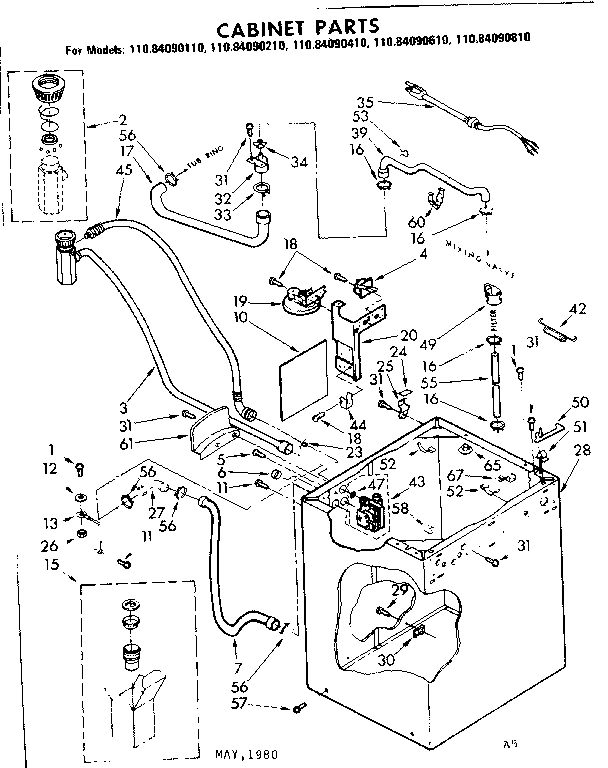

CABINET PARTS
Parts in CABINET PARTS
56 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP308544replaces 274707 Screw | $2.30 Part Advantage |
| 2 |  | 675164NLA Collar Kit | Discontinued |
| 3 | – | 358220 Coupler | - |
| 4 | – | 87136 Switch | - |
| 5 |  | WP3351614replaces 90864 Screw | $3.62 Parts Dr |
| 6 |  | WP356054replaces 356054 Cap | $7.03 RepairClinic |
| 7 | | 356727NLA Hose | Discontinued |
| 10 | – | 353885 Barrier | - |
| 11 |  | WP488234replaces 9412221 Screw | $4.38 Parts Dr |
| 12 | – | 90918 Lock Washer | - |
| 13 | – | 368715 Wire | - |
| 15 |  | WPW10254672replaces 713750 Adapter | $22.23 Part Advantage |
| 16 |  | WP596669replaces 371501 Clamp | $2.30 Part Advantage |
| 17 | – | 356314 Inlet Hose | - |
| 18 | | 98520NLA Screw | Discontinued |
| 19 | – | 367610 Switch | - |
| 20 | – | 357174 Bracket | - |
| 23 |  | WP16123replaces 16123 Washing Machine Washer | $2.30 Part Advantage |
| 24 | | Washer Lid Hinge Bumper | - |
| 25 | – | N/P (338471) (ALT.) | - |
| 25A | – | 356606 Hinge | - |
| 25B | – | 356740 Hinge | - |
| 26 | | W10080180replaces 271166 Nut | - |
| 27 |  | W11213338replaces 356739 Connector | $46.95 ApplianceParts Pro |
| 28A | – | 369281 Cabinet (White) | - |
| 28B | – | 376960 Cabinet (Almond) | - |
| 28C | – | 376961 Cabinet | - |
| 28D | – | 376962 Cabinet | - |
| 28E | – | 376963 Cabinet (Gold) | - |
| 29 | – | 9426223 Screw | - |
| 30 | – | 357043 Spacer | - |
| 31 |  | WP681414replaces 343641 SCREW | $2.30 Part Advantage |
| 32 |  | WP356363replaces 356363 Siphon | $3.55 Part Advantage |
| 33 |  | WP616099replaces 272861 Clamp | $8.55 PartSelect |
| 34 |  | WP356471replaces 356471 Cap | $3.38 Part Advantage |
| 35 | – | 357566 Cord | - |
| 39 | | Hose | - |
| 42 | – | 356887 Spring | - |
| 43 |  | 285805replaces 358992 Valve | $16.69 Part Advantage |
| 44 | – | 357171 Clamp | - |
| 45 | – | 358202 Hose | - |
| 47 |  | WP96160replaces 96160 Filter Screen | $4.36 Part Advantage |
| 49 | – | 356982 Hose Clamp | - |
| 50A | – | 356916 Pad | - |
| 50B | – | 356917 Pad | - |
| 51 | | Lock | - |
| 52 | | WP98997replaces 98997 Harness Clip | - |
| 53 | – | 357469 Clip | - |
| 55 | | 356397NLA Water Hose | Discontinued |
| 56 | – | 272855 Clamp | - |
| 57 |  | WP273556replaces 273556 Washer Screw | $2.30 Part Advantage |
| 58 | | Bumper | - |
| 60 | | Washer Retainer Clip | - |
| 61 | – | 356499 Bracket | - |
| 65 | – | 356288 Clip | - |
| 67 | – | 356387 Clip | - |
