Model
Kenmore 110.84370810
Electric Washer (Kenmore 11084370810)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.84370810Electric Washer (Kenmore 11084370810)
10 diagrams251 parts
Parts Sections (10)
Diagram

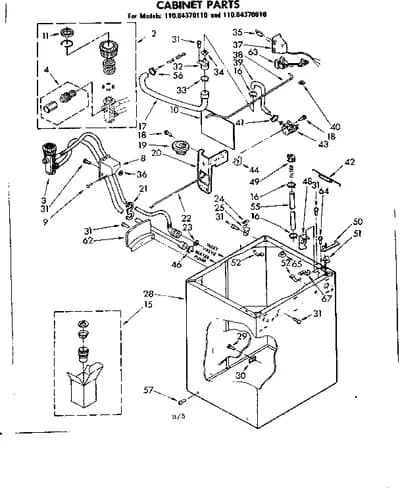

CABINET PARTS
Parts in CABINET PARTS
52 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | WP285170replaces 285170 Appliance Faucet Coupler Collar Kit | $28.77 Part Advantage |
| 3 | – | 359608 Coupler | - |
| 4 | – | 285171 Relief Valve | - |
| 8 | – | 356263 Housing | - |
| 9 | – | 356262 Pin | - |
| 10 | – | 353885 Barrier | - |
| 11 |  | Seal | - |
| 15 |  | WPW10254672replaces 713750 Adapter | $22.23 Part Advantage |
| 16 |  | WP596669replaces 371501 Clamp | $2.30 Part Advantage |
| 17 | – | 356314 Inlet Hose | - |
| 18 | | 98520NLA Screw | Discontinued |
| 19 | | 285394replaces 358625 Switch | - |
| 20 | – | 357174 Bracket | - |
| 21 | – | 356390 Hose Guide | - |
| 22 | – | 356389 Rod | - |
| 23 |  | WP16123replaces 16123 Washing Machine Washer | $2.30 Part Advantage |
| 24 | | Washer Lid Hinge Bumper | - |
| 25 | – | 356606 Hinge | - |
| 28 | – | N/P (338471) (ALT.) | - |
| 28A | – | 379672 Cabinet (White) | - |
| 28B | – | 379673 Cabinet (Almond) | - |
| 29 | – | 9426223 Screw | - |
| 30 | – | 357043 Spacer | - |
| 31 |  | WP681414replaces 343641 SCREW | $2.30 Part Advantage |
| 32 |  | WP356363replaces 356363 Siphon | $3.55 Part Advantage |
| 33 |  | WP616099replaces 272861 Clamp | $8.55 PartSelect |
| 34 |  | WP356471replaces 356471 Cap | $3.38 Part Advantage |
| 35 | – | 357500 Cord | - |
| 36 | – | 98149 Stud Clip | - |
| 37 | – | 356231 Housing | - |
| 38 |  | WP353244replaces 353161 Hose | $31.19 Part Advantage |
| 39 | – | 356313 Inlet Hose | - |
| 40 | – | 359399 Washer | - |
| 41 | | WP596669replaces 356436 Clamp | $2.30 Part Advantage |
| 42 | – | 356887 Spring | - |
| 43 | – | 367184 Inlet Valve | - |
| 44 | – | 357171 Clamp | - |
| 46 |  | WP285655replaces 353097 Clamp | $3.38 Part Advantage |
| 48 | – | 357504 Bracket | - |
| 49 | – | 356982 Hose Clamp | - |
| 50 | – | 356916 Pad | - |
| 50A | – | 356917 Pad | - |
| 51 | | Lock | - |
| 52 | | WP98997replaces 98997 Harness Clip | - |
| 55 | | 356397NLA Water Hose | Discontinued |
| 56 | – | 272855 Clamp | - |
| 57 |  | WP273556replaces 273556 Washer Screw | $2.30 Part Advantage |
| 62 | – | 356499 Bracket | - |
| 63 | – | 357499 Relief | - |
| 64 |  | WP488234replaces 9412221 Screw | $4.38 Parts Dr |
| 65 | – | 356288 Clip | - |
| 67 | – | 356387 Clip | - |
