Diagram

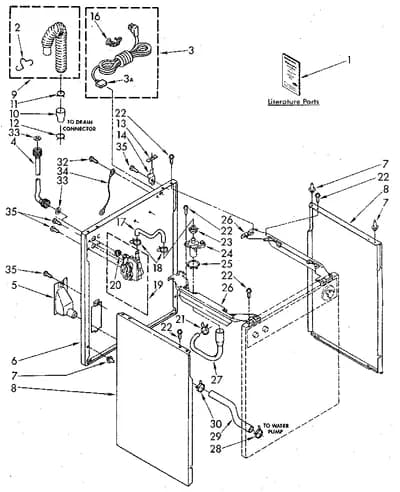

REAR AND SIDE PANEL
Parts in REAR AND SIDE PANEL
50 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | N/P (338471) (ALT.) | - |
| 1A | – | LIT3349104 Laundry Guide | - |
| 1B | – | LIT3350303 Installation Instructions | - |
| 1C | – | LIT388871 Operating Instructions | - |
| 1D | – | LIT387986 Installation Instructions | - |
| 1E | – | LIT3348452 Wiring Diagram | - |
| 1F | – | LIT3351221 Energy Guide Label | - |
| 1G | – | LIT64190 Owner's Manual | - |
| 1H | – | LIT387631 Parts List | - |
| 2 |  | 3350222NLA Retainer | Discontinued |
| 3 |  | W10820044replaces 62734 Cord | $63.13 Parts Dr |
| 3A | | Receptacle | - |
| 4 |  | WP89503replaces 660028 Hose | $4.59 Part Advantage |
| 5 |  | WPW10358149replaces 3349018 Connector | $13.44 Part Advantage |
| 6A | – | 63615 Rear Panel W | - |
| 6B | – | 63616 Rear Panl Al | - |
| 6C | – | 63617 Panel To | - |
| 6D | – | 63618 Panel (Platinum) | - |
| 6E | – | 63619 Rear Panel | - |
| 7 | | 98669NLA Dryer Cabinet Panel Guide Pin | Discontinued |
| 8A | – | 3350063 Panel | - |
| 8B | – | 3350064 Panel Al | - |
| 8C | – | 3350065 Panel | - |
| 8D | – | 3350066 Panel (Platinum) | - |
| 8E | – | 3350067 Panel | - |
| 9 |  | 285664replaces 387325 Hose | $16.76 Part Advantage |
| 9A |  | 285666replaces 388418 Hose | $31.25 Parts Dr |
| 10 |  | WP384496replaces 384496 Washer Drain Hose Sleeve Connector | $35.55 Parts Dr |
| 11 |  | WP616099replaces 371504 Clamp | $8.55 PartSelect |
| 12 |  | WP356138replaces 356138 Hose Clamp | $3.38 Part Advantage |
| 13 | | Washer Lid Hinge Bumper | - |
| 14 | – | 356606 Hinge | - |
| 16 | | W11733005replaces 63848 Washer Power Cord Strain Relief | - |
| 17 | | Water Inlet Hose | - |
| 18 |  | WP596669replaces 660632 Hose Clamp | $2.30 Part Advantage |
| 19 |  | 285805replaces 358992 Valve | $16.69 Part Advantage |
| 20 |  | WP96160replaces 96160 Filter Screen | $4.36 Part Advantage |
| 21 |  | WP285655replaces 660626 Clamp | $3.38 Part Advantage |
| 22 | | Mounting Screw | - |
| 23 |  | WP356471replaces 356471 Cap | $3.38 Part Advantage |
| 24 |  | WP356363replaces 356363 Siphon | $3.55 Part Advantage |
| 25 | | WP616099replaces 272861 Clamp | $8.55 PartSelect |
| 26 | – | 3351017 Brace Tie | - |
| 27 | | Vacuum Break Hose | - |
| 28 | | WP285655replaces 660628 Hose Clamp | $3.38 Part Advantage |
| 29 | | 386930NLA Hose | Discontinued |
| 32 |  | WP681414replaces 359262 Screw | $2.30 Part Advantage |
| 33 |  | WP16123replaces 16123 Washing Machine Washer | $2.30 Part Advantage |
| 34 | – | 364089 Ground Wire | - |
| 35 |  | WP3390631replaces 62863 Screw | $2.30 Part Advantage |
