Model
Kenmore 110.84418800
Washer (Kenmore 11084418800)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.84418800Washer (Kenmore 11084418800)
10 diagrams226 parts
Parts Sections (10)
Diagram

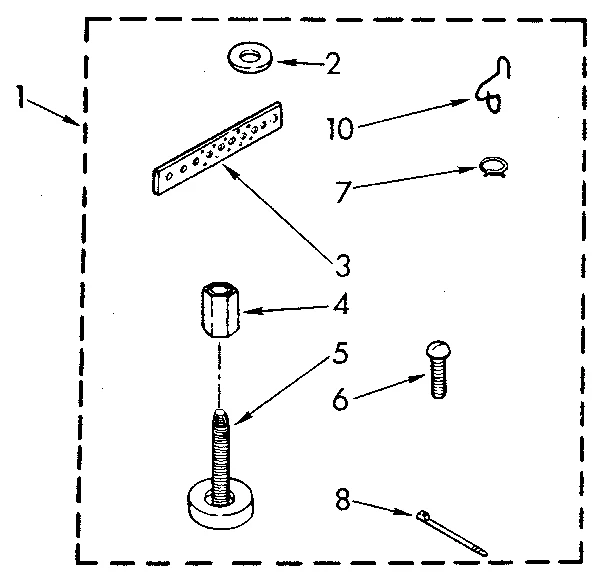

MISCELLANEOUS
Parts in MISCELLANEOUS
9 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 387980 Replacement Part | - |
| 2 |  | WP16123replaces 16123 Washing Machine Washer | $2.30 Part Advantage |
| 3 | – | 22965 Ground Strap | - |
| 4 |  | WP62739replaces 62739 Jam Nut | $2.84 Parts Dr |
| 5 |  | WPW10001130replaces 389102 Leveling Foot | $2.22 Part Advantage |
| 6 | – | 132848 Screw | - |
| 7 |  | WP356138replaces 356138 Hose Clamp | $3.38 Part Advantage |
| 8 |  | WPW10339879replaces 3347868 Wire Tie | $2.30 Part Advantage |
| 10 | | 3350222NLA Retainer | Discontinued |
