Model
Kenmore 110.84419110
Washer (Kenmore 11084419110)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.84419110Washer (Kenmore 11084419110)
10 diagrams197 parts
Parts Sections (10)
Diagram

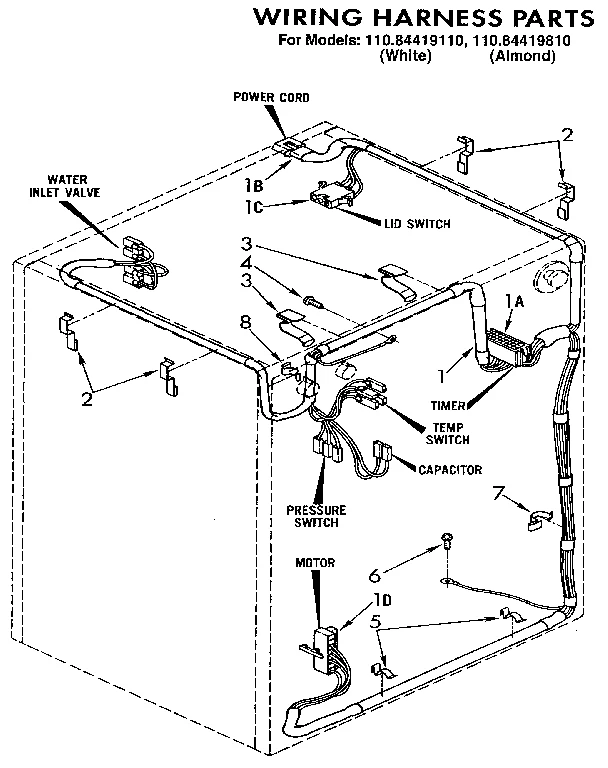

WIRING HARNESS
Parts in WIRING HARNESS
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Wire Harness | - |
| 1A |  | W10876590replaces 352089 Connector (Black) | $4.52 Part Advantage |
| 1B |  | Washer Terminal Connector | - |
| 1C | | 62888NLA Plug | Discontinued |
| 1D |  | WP62505replaces 62505 Connector (Black) | $15.95 ApplianceParts Pro |
| 2 | – | 64227 Harness Clip | - |
| 3 | – | 387668 Harness Clip | - |
| 4 | – | 3347107 Screw | - |
| 5 |  | WP90016replaces 3348387 Harness Clip | $7.43 RepairClinic |
| 6 |  | WP681414replaces 690989 Screw | $2.30 Part Advantage |
| 7 |  | 8528351replaces 693193 Clip | - |
| 8 | – | 64162 Retainer | - |
