Model
Kenmore 110.84419600
Washer (Kenmore 11084419600)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.84419600Washer (Kenmore 11084419600)
11 diagrams240 parts

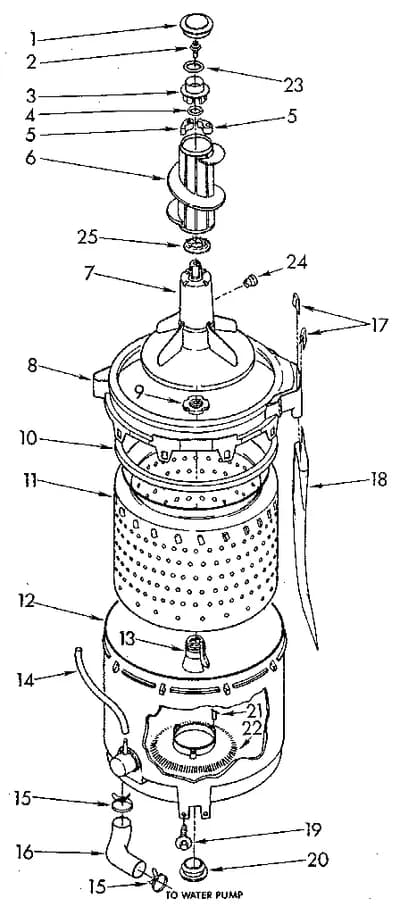

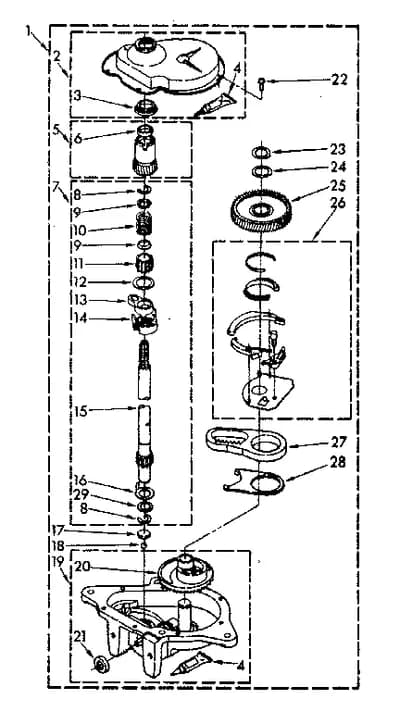

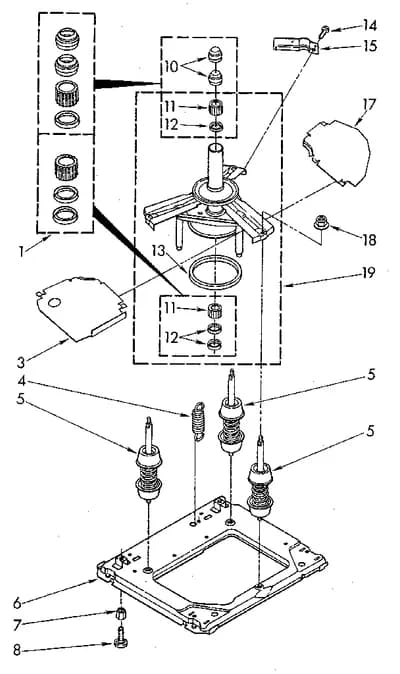

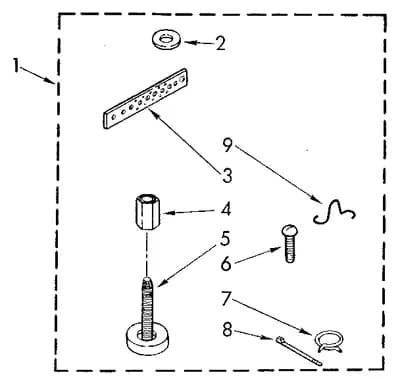

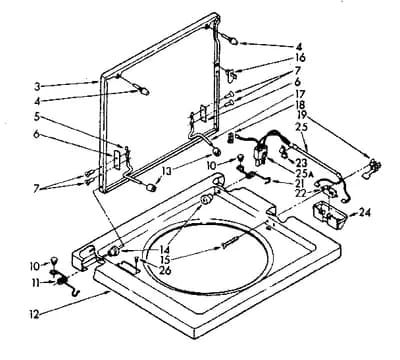

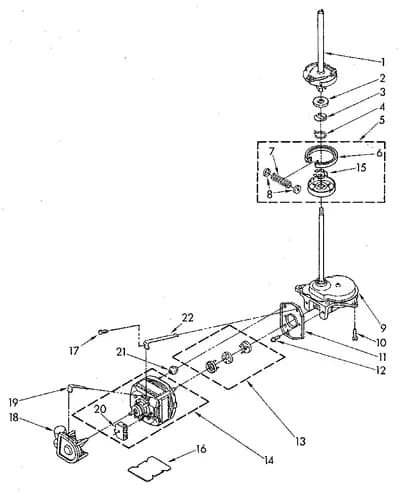

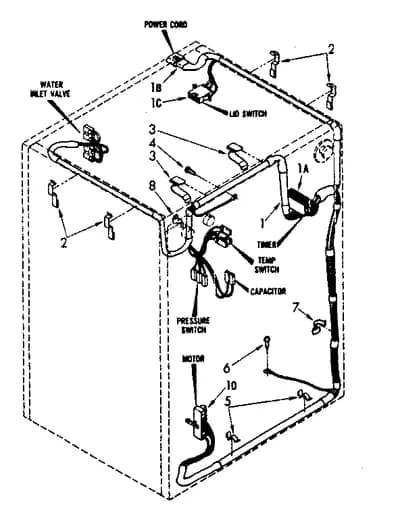

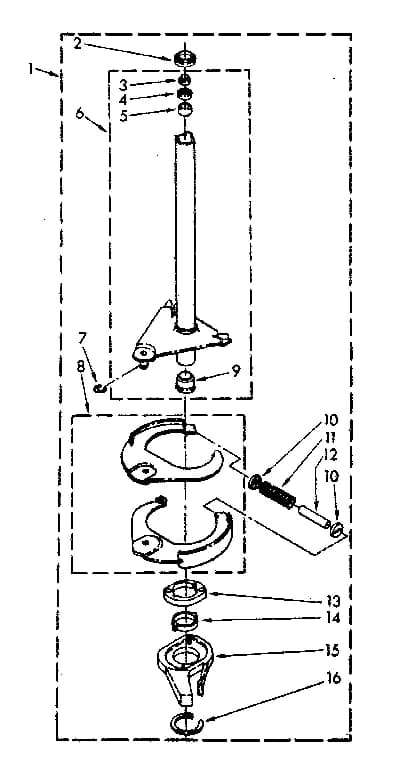

Parts Sections (11)
Diagram

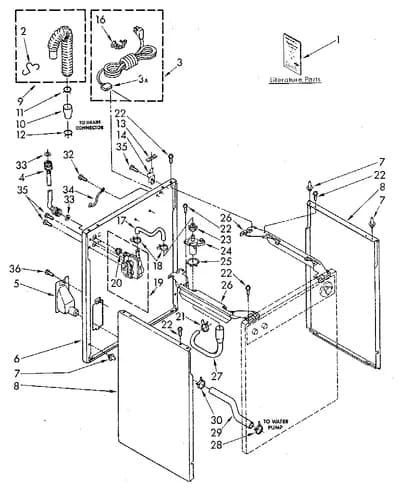

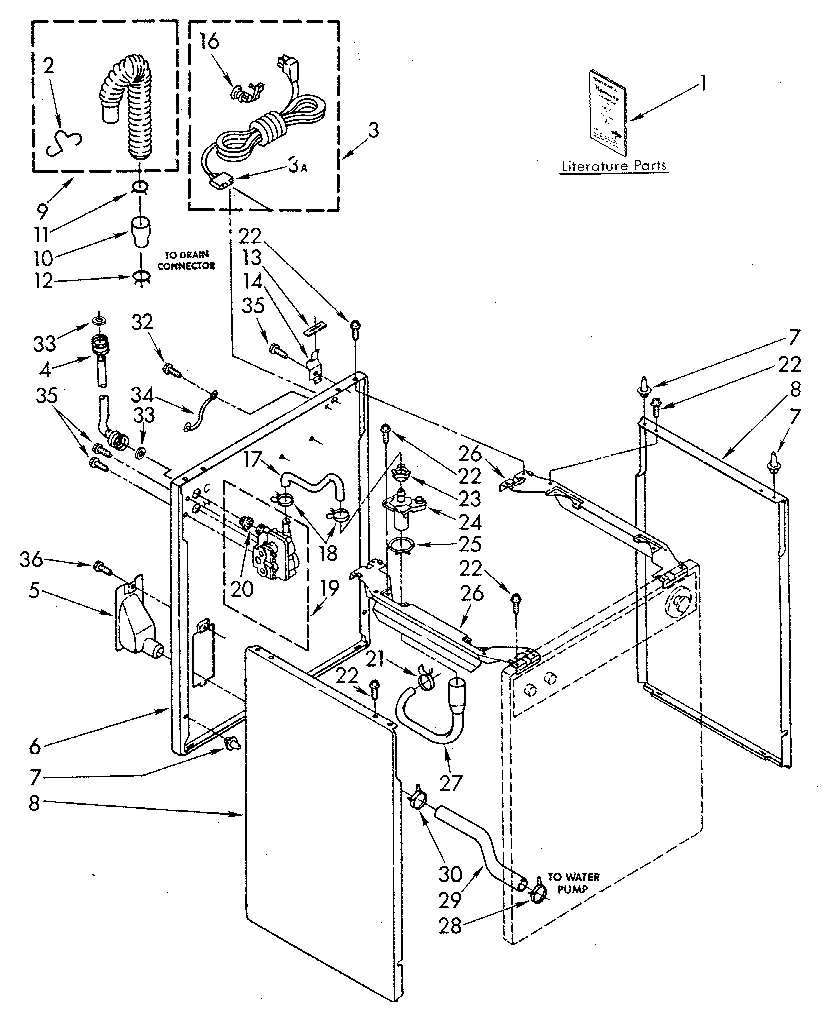

REAR AND SIDE PANEL PARTS
Parts in REAR AND SIDE PANEL PARTS
50 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | N/P (338471) (ALT.) | - |
| 1A | – | LIT3350303 Installation Instructions | - |
| 1B | – | LIT3349415 Operating Instructions | - |
| 1C | – | LIT384663 Technical Sheet | - |
| 1D | – | LIT3348452 Wiring Diagram | - |
| 1E | – | LIT3351222 Energy Guide | - |
| 1F | – | LIT64190 Owner's Manual | - |
| 1G | – | LIT3350434 Parts List | - |
| 2 |  | 3350222NLA Retainer | Discontinued |
| 3 |  | W10820044replaces 62734 Cord | $63.13 Parts Dr |
| 3A | | Receptacle | - |
| 4 |  | WP89503replaces 660028 Hose | $4.59 Part Advantage |
| 5 |  | WPW10358149replaces 3349018 Connector | $13.44 Part Advantage |
| 6A | – | 63615 Rear Panel W | - |
| 6B | – | 63616 Rear Panl Al | - |
| 6C | – | 63617 Panel To | - |
| 6D | – | 63618 Panel (Platinum) | - |
| 6E | – | 63619 Rear Panel | - |
| 7 | | 98669NLA Dryer Cabinet Panel Guide Pin | Discontinued |
| 8A | – | 3350063 Panel | - |
| 8B | – | 3350064 Panel Al | - |
| 8C | – | 3350065 Panel | - |
| 8D | – | 3350066 Panel (Platinum) | - |
| 8E | – | 3350067 Panel | - |
| 9 |  | 285664replaces 387325 Hose | $16.76 Part Advantage |
| 9A |  | 285666replaces 388418 Hose | $31.25 Parts Dr |
| 10 |  | WP384496replaces 384496 Washer Drain Hose Sleeve Connector | $35.55 Parts Dr |
| 11 |  | WP616099replaces 371504 Clamp | $8.55 PartSelect |
| 12 |  | WP356138replaces 356138 Hose Clamp | $3.38 Part Advantage |
| 13 | | Washer Lid Hinge Bumper | - |
| 14 | – | 356606 Hinge | - |
| 16 | | W11733005replaces 63848 Washer Power Cord Strain Relief | - |
| 17 | | Water Inlet Hose | - |
| 18 |  | WP596669replaces 660632 Hose Clamp | $2.30 Part Advantage |
| 19 |  | 285805replaces 358992 Valve | $16.69 Part Advantage |
| 20 |  | WP96160replaces 96160 Filter Screen | $4.36 Part Advantage |
| 21 |  | WP285655replaces 660626 Clamp | $3.38 Part Advantage |
| 22 | | Mounting Screw | - |
| 23 |  | WP356471replaces 356471 Cap | $3.38 Part Advantage |
| 24 |  | WP356363replaces 356363 Siphon | $3.55 Part Advantage |
| 25 | | WP616099replaces 272861 Clamp | $8.55 PartSelect |
| 26 | – | 3351017 Brace Tie | - |
| 27 | | Vacuum Break Hose | - |
| 28 | | WP285655replaces 660628 Hose Clamp | $3.38 Part Advantage |
| 29 | | 386930NLA Hose | Discontinued |
| 32 |  | WP681414replaces 359262 Screw | $2.30 Part Advantage |
| 33 |  | WP16123replaces 16123 Washing Machine Washer | $2.30 Part Advantage |
| 34 | – | 364089 Ground Wire | - |
| 35 |  | WP3390631replaces 62863 Screw | $2.30 Part Advantage |
| 36 | | WP681414replaces 687128 Screw | $2.30 Part Advantage |
