Kenmore 110.91210100
Washer (Kenmore 11091210100)
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.91210100Washer (Kenmore 11091210100)
9 diagrams191 parts

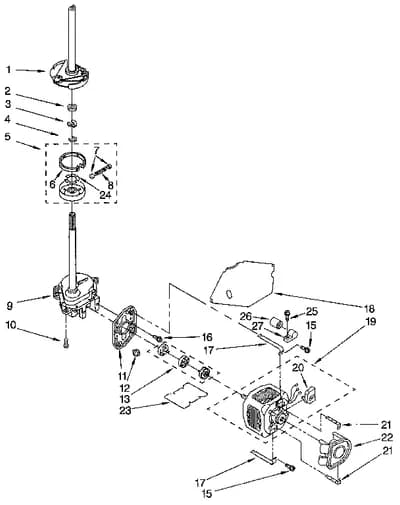

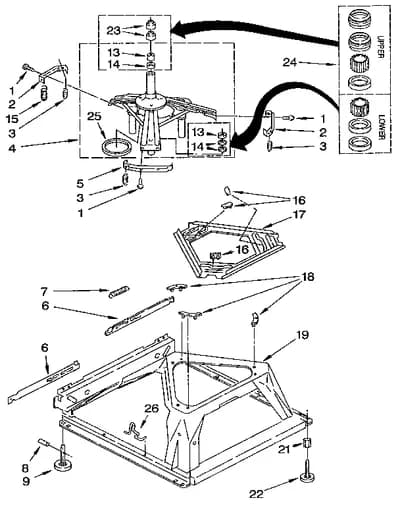

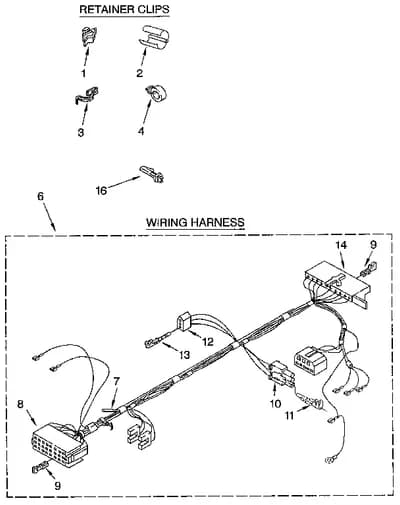

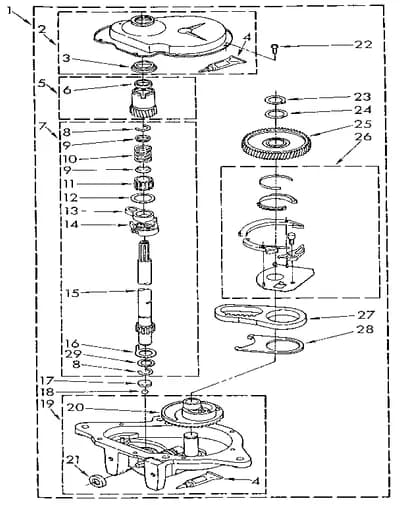

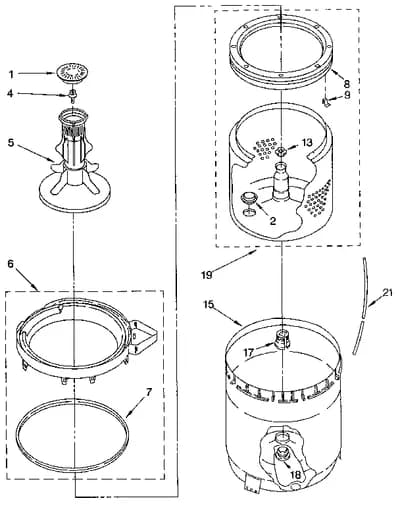

Parts Sections (9)
Diagram

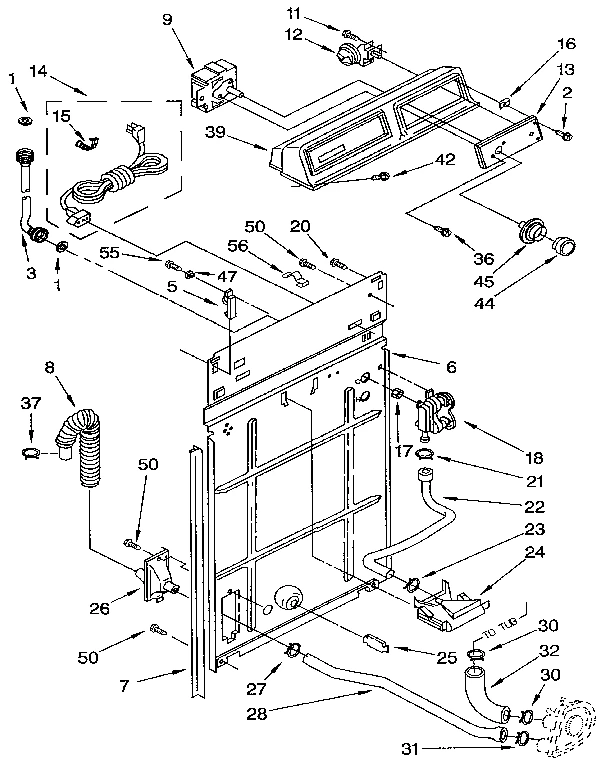

CONTROL AND REAR PANEL
Parts in CONTROL AND REAR PANEL
38 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP16123replaces 16123 Washing Machine Washer | $2.30 Part Advantage |
| 2 |  | WP355515replaces 355515 Washer Screw | $5.00 RepairClinic |
| 3 |  | WP89503replaces 660028 Hose | $4.59 Part Advantage |
| 3A | – | N/P (338471) (ALT.) | - |
| 5 |  | 387402NLA Hinge Panel | Discontinued |
| 6 | – | 3349691 Rear Panel | - |
| 7 |  | WP62747replaces 62747 Pad Panel | - |
| 8 |  | 285664replaces 661575 Drain Hose | $16.76 Part Advantage |
| 9 | – | 3357322 Timer | - |
| 11 |  | WPW10109200replaces 97787 Screw | $2.30 Part Advantage |
| 12 | | Washer Water-Level Pressure Switch | - |
| 13 | – | 3357778 Bezel Control | - |
| 14 |  | W10820044replaces 62734 Cord | $63.13 Parts Dr |
| 15 | | Relief | - |
| 16 | | 98084NLA Clip | Discontinued |
| 17 |  | WP96160replaces 96160 Filter Screen | $4.36 Part Advantage |
| 18 |  | 285805replaces 358992 Valve | $16.69 Part Advantage |
| 20 |  | WP3390631replaces 62863 Screw | $2.30 Part Advantage |
| 21 |  | WP596669replaces 660632 Hose Clamp | $2.30 Part Advantage |
| 22 |  | WP3357328replaces 62662 Hose | $7.24 Part Advantage |
| 23 | | WP596669replaces 371503 Clamp | $2.30 Part Advantage |
| 24 |  | WP3347034replaces 3347034 Break | $29.21 Part Advantage |
| 25 |  | WP8519200replaces 63290 Support | $12.39 RepairClinic |
| 26 |  | WPW10358149replaces 3355497 Connector | $13.44 Part Advantage |
| 27 |  | WP356138replaces 356138 Hose Clamp | $3.38 Part Advantage |
| 28 |  | WP3348552replaces 3348552 Washer Drain Hose | $49.50 PartSelect |
| 30 | | WP371502replaces 371502 Hose Clamp | - |
| 31 |  | WP285655replaces 660628 Hose Clamp | $3.38 Part Advantage |
| 32 |  | 285871replaces 62731 Hose | $7.56 Amazon |
| 36 | – | 358950 Screw | - |
| 37 |  | WP3357331replaces 3357331 Hose Clamp | $9.57 ApplianceParts Pro |
| 39 | – | 63310 Escutcheon | - |
| 42 | – | 358225 Screw | - |
| 44 |  | WP3362625replaces 3353309 Timer Knob | $30.37 Parts Dr |
| 45 | | Pointer | - |
| 47 | | WP689559replaces 689559 End Cap Clip | $8.95 ApplianceParts Pro |
| 55 |  | WP308685replaces 3357011 Screw | $2.30 Part Advantage |
| 56 |  | 8528351replaces 3347812 Harness Clip | - |
