Kenmore 110.91250100
Washer (Kenmore 11091250100)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.91250100Washer (Kenmore 11091250100)
10 diagrams196 parts

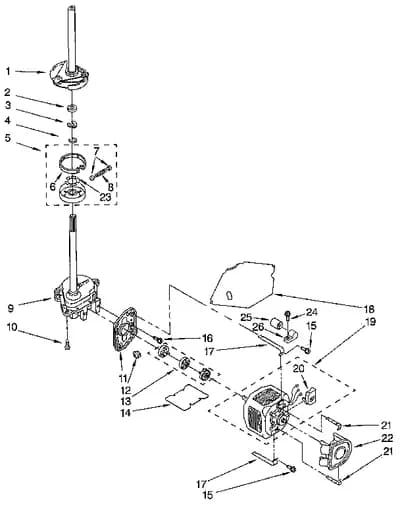

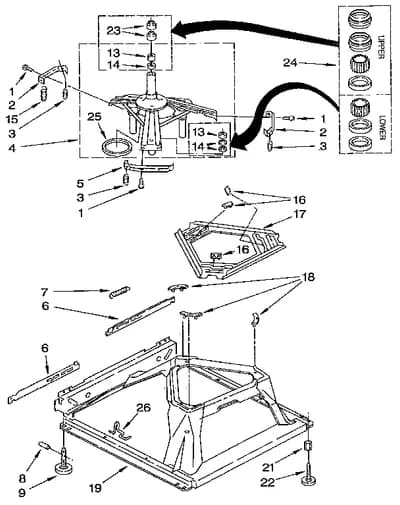

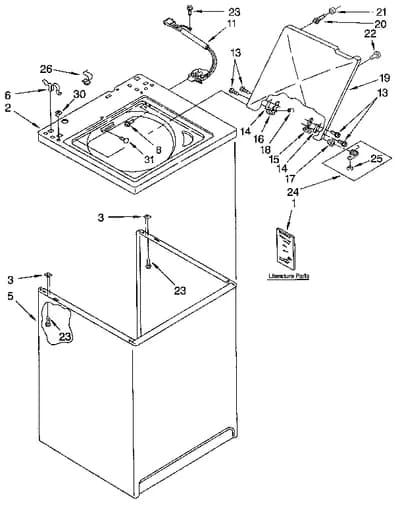

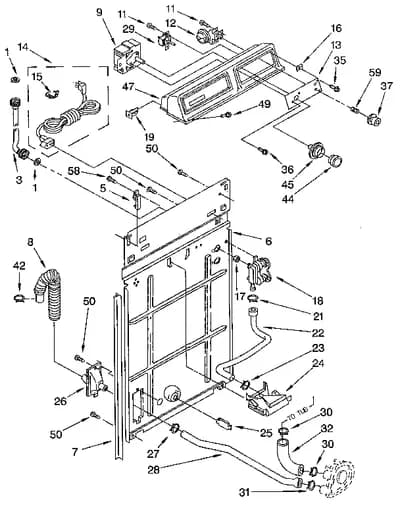

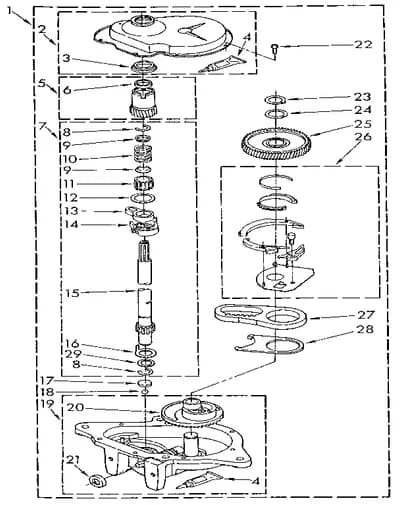

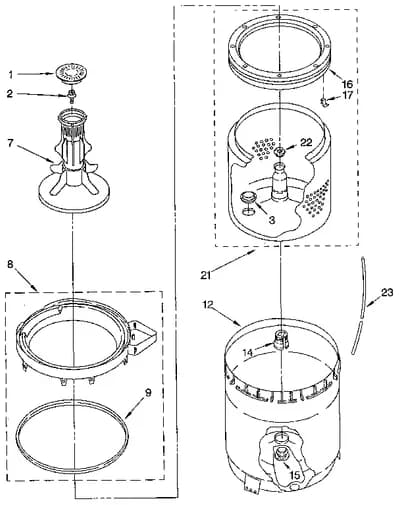

Parts Sections (10)
Diagram

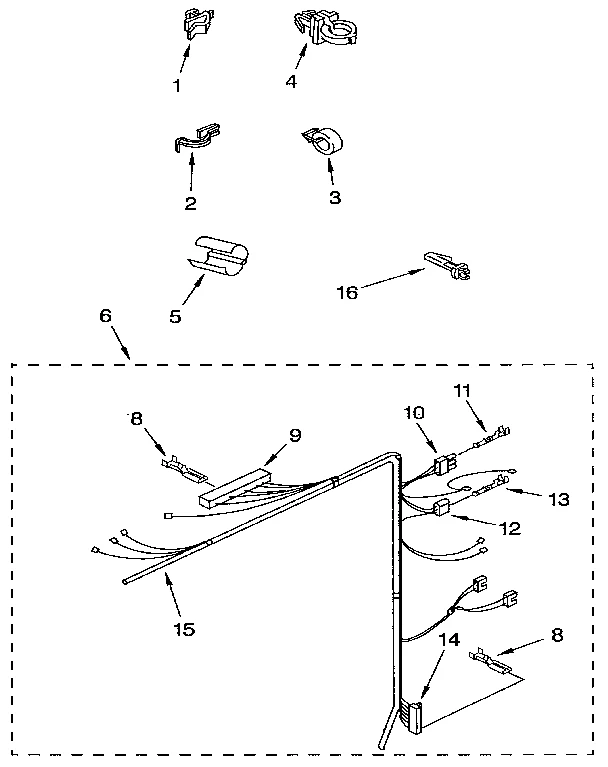

WIRING HARNESS
Parts in WIRING HARNESS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Clip | - |
| 2 |  | 8528351replaces 3347812 Harness Clip | - |
| 3 |  | 8559320replaces 3352501 Harness Clip | - |
| 4 | – | 62749 Clip | - |
| 5 | | Protector | - |
| 6 | – | 3357301 Wire Harness | - |
| 8 | – | 3371761 Terminal | - |
| 9 |  | W10876590replaces 352089 Connector (Black) | $4.52 Part Advantage |
| 10 |  | WP62889replaces 62889 Washer Lid Switch Terminal Receptacle | $9.62 PartSelect |
| 11 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 12 |  | Washer Terminal Connector | - |
| 13 |  | WP596797replaces 94613 Terminal | $7.95 ApplianceParts Pro |
| 14 |  | WP62505replaces 62505 Connector (Black) | $15.95 ApplianceParts Pro |
| 15 |  | WP353244replaces 353406 Hose | $31.19 Part Advantage |
| 16 | | 3390496NLA Harness Clip | Discontinued |
