Model
Kenmore 110.91550100
Washer (Kenmore 11091550100)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.91550100Washer (Kenmore 11091550100)
11 diagrams210 parts

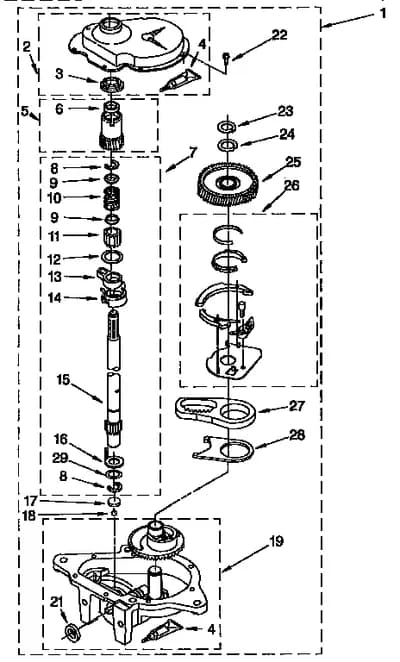

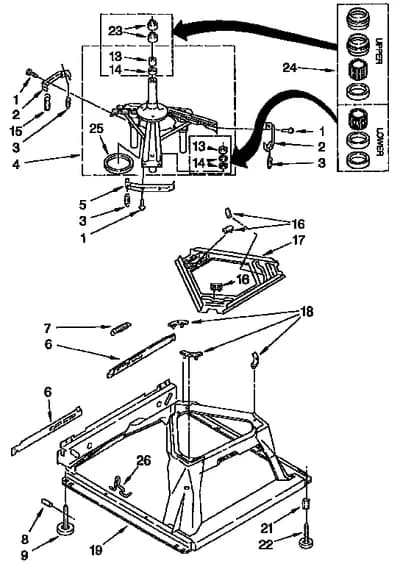

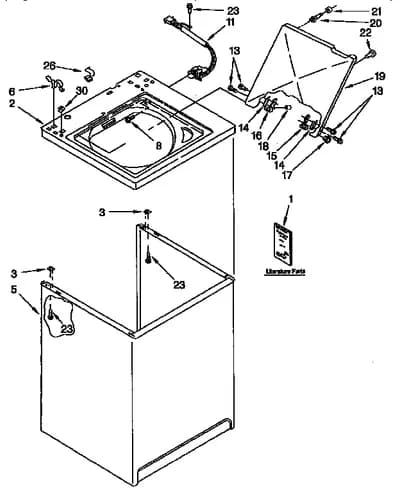

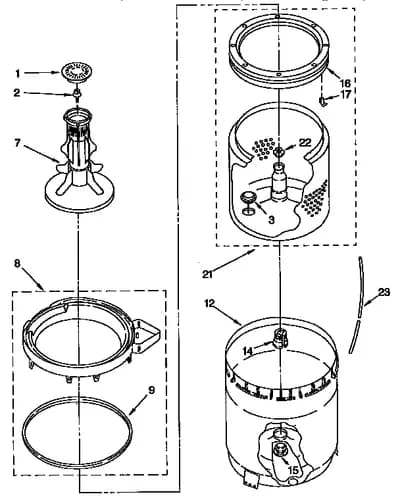

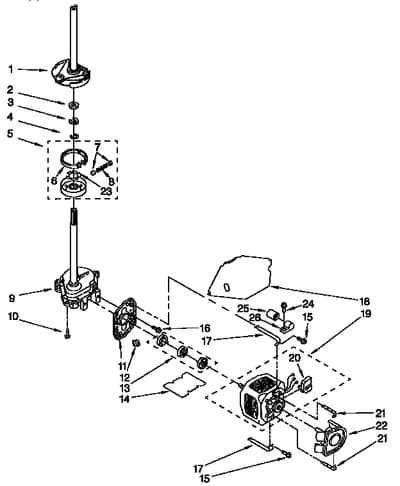

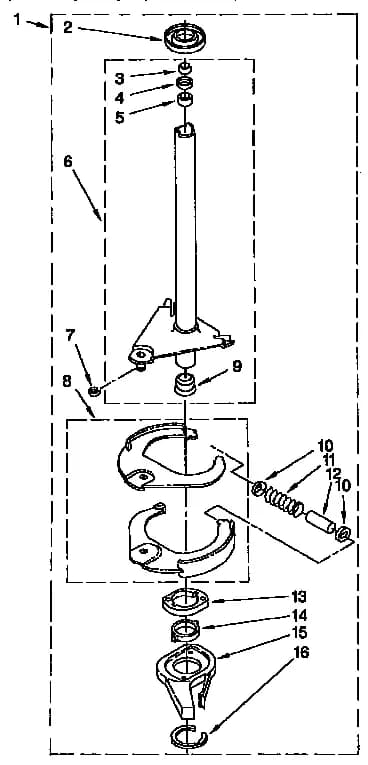

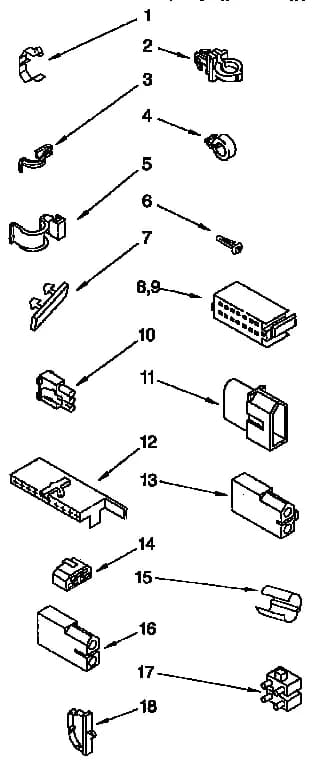

Parts Sections (11)
Diagram

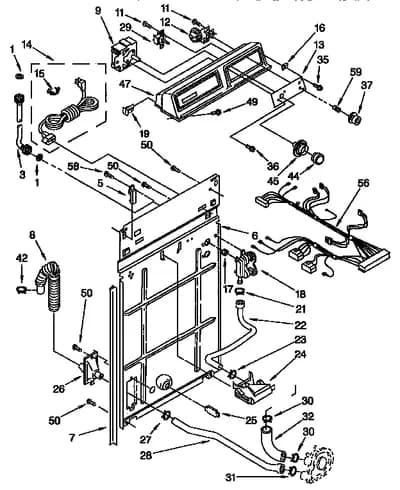

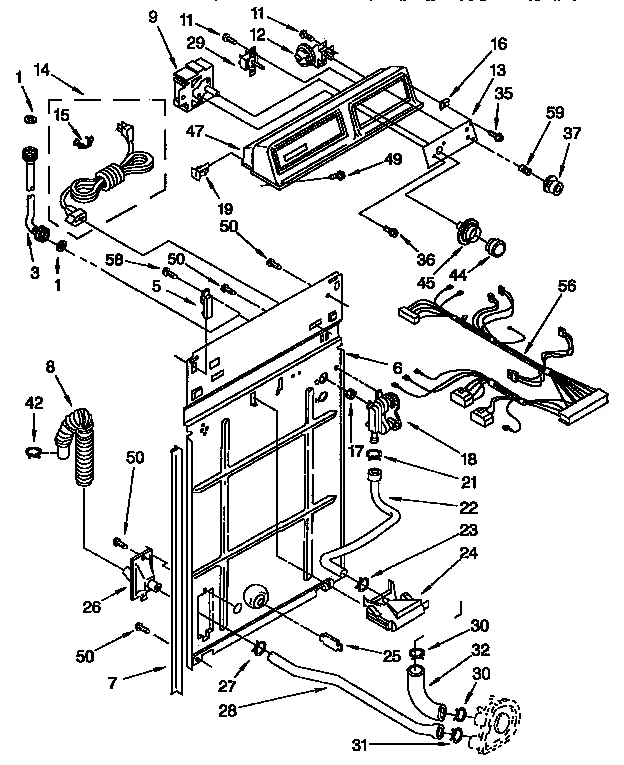

CONTROL AND REAR PANEL PARTS
Parts in CONTROL AND REAR PANEL PARTS
41 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP16123replaces 16123 Washing Machine Washer | $2.30 Part Advantage |
| 3 |  | WP89503replaces 3354858 Inlet Hose | $4.59 Part Advantage |
| 5 |  | 387402NLA Hinge Panel | Discontinued |
| 6 | – | 3349691 Rear Panel | - |
| 7 |  | WP62747replaces 62747 Pad Panel | - |
| 8A |  | 285664replaces 661575 Drain Hose | $16.76 Part Advantage |
| 8B |  | 285702replaces 3357090 Drain Hose | $35.09 RepairClinic |
| 9 |  | WP661598replaces 3361637 Timer | - |

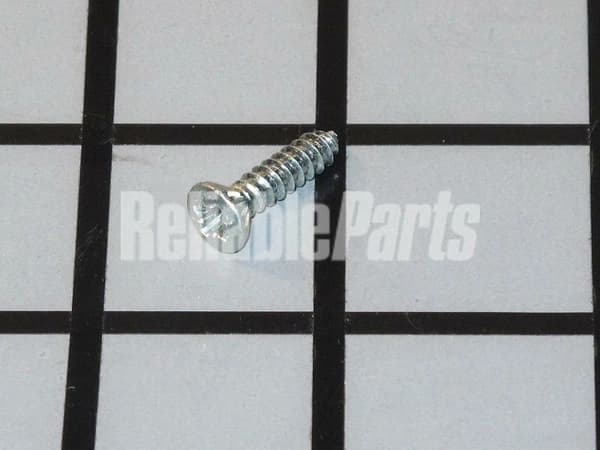

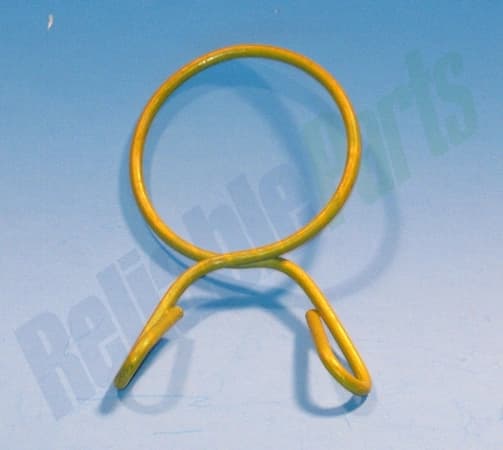

| 11 |  | WPW10109200replaces 97787 Screw | $2.30 Part Advantage |
| 12 | | Water-Level Switch | - |
| 13 | – | 3360702 Bezel Control | - |
| 14 |  | W10820044replaces 3360514 Power Cord | $63.13 Parts Dr |
| 15 | | Relief | - |
| 16 | | 98084NLA Clip | Discontinued |
| 17 |  | WP96160replaces 96160 Filter Screen | $4.36 Part Advantage |
| 18 |  | 285805replaces 3360392 Mixing Valve | $16.69 Part Advantage |
| 19 | | WP689559replaces 689559 End Cap Clip | $8.95 ApplianceParts Pro |
| 21 |  | WP596669replaces 660632 Hose Clamp | $2.30 Part Advantage |
| 22 |  | WP3357328replaces 62662 Hose | $7.24 Part Advantage |
| 23 | | WP596669replaces 371503 Clamp | $2.30 Part Advantage |
| 24 |  | WP3347034replaces 3347034 Break | $29.21 Part Advantage |
| 25 |  | WP8519200replaces 63290 Support | $12.39 RepairClinic |
| 26 |  | WPW10358149replaces 3355497 Connector | $13.44 Part Advantage |
| 27 |  | WP356138replaces 356138 Hose Clamp | $3.38 Part Advantage |
| 28 |  | WP3348552replaces 3359818 Pump Hose | $49.50 PartSelect |
| 29 | | Temperature Switch | - |
| 30 | | WP371502replaces 371502 Hose Clamp | - |
| 31 |  | WP285655replaces 660628 Hose Clamp | $3.38 Part Advantage |
| 32 |  | 285871replaces 62731 Hose | $7.69 Part Advantage |
| 35 |  | WP355515replaces 355515 Washer Screw | $5.00 RepairClinic |
| 36 | – | 358950 Screw | - |
| 37 | | 3398392NLA Laundry Center Control Knob | Discontinued |
| 42 |  | WP3357331replaces 3357331 Hose Clamp | $9.57 ApplianceParts Pro |
| 44 |  | WP3362624replaces 3353315 Timer Knob | $15.36 Part Advantage |
| 45 | | Pointer | - |
| 47 | – | 3362125 Escutcheon | - |
| 49 | – | 358225 Screw | - |
| 50 |  | WP3390631replaces 62863 Screw | $2.30 Part Advantage |
| 56 | – | 3361815 Wire Harness | - |
| 58 |  | WP308685replaces 3357011 Screw | $2.30 Part Advantage |
| 59 |  | WP688805replaces 688805 Laundry Appliance Control Knob Clip | $3.55 Part Advantage |
