Model
Kenmore 110.92292800
Washer (Kenmore 11092292800)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.92292800Washer (Kenmore 11092292800)
11 diagrams231 parts
Parts Sections (11)
Diagram

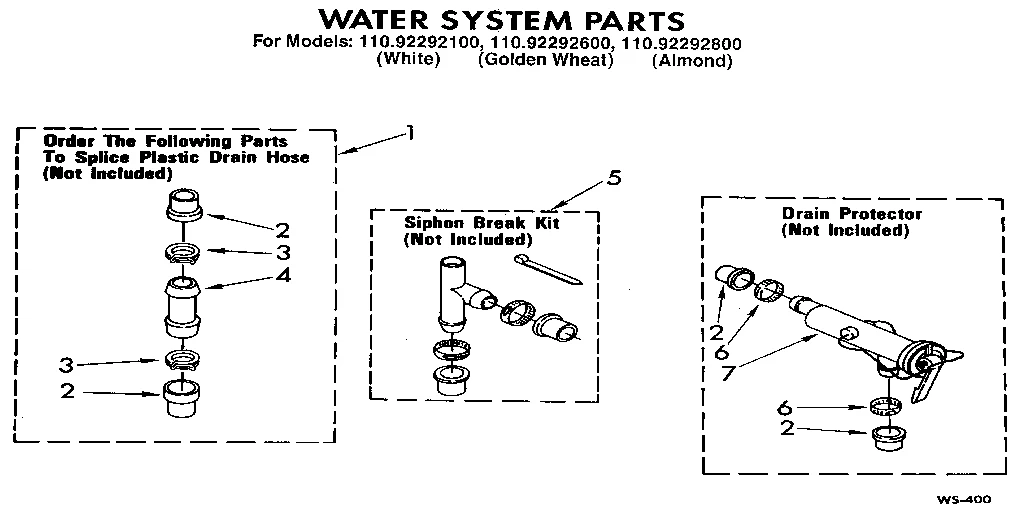

WATER SYSTEM
Parts in WATER SYSTEM
7 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Amana Washer Drain Hose Coupling Kit | $33.54 Parts Dr |
| 2 |  | Amana Washer Siphon Break Sleeve, 2-pack | $59.03 RepairClinic |
| 3 |  | WP285655replaces 370447 Clamp | $3.38 Part Advantage |
| 4 |  | WP16272replaces 16272 Drain Hose Connector | $7.43 ApplianceParts Pro |
| 5 |  | Amana Washer Siphon Break Kit | $26.82 Part Advantage |
| 6 | | WP285655replaces 65349 Clamp | $3.38 Part Advantage |
| 7 |  | 367031NLA Washer Drain Protector | Discontinued |
